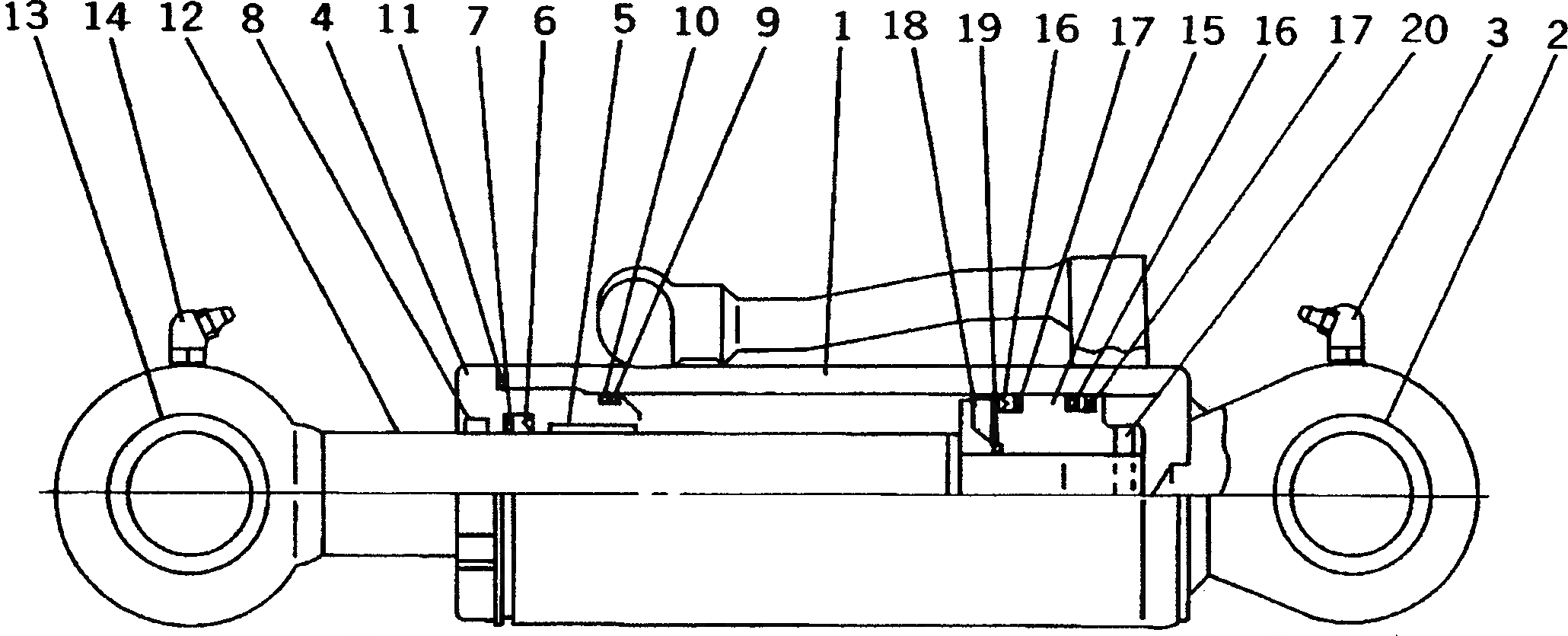

Запчасти Komatsu WA40-3-CB ROAD SWEEPER (ВНУТР. ЭЛЕМЕНТЫ) (8/8) (ЦИЛИНДР КОВША) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

363-N90-3311

SWEEPER ASS'Y,(IRON WHEEL TYPE)

SN: 19001-UP

1шт.

|1

363-Z56-3510

SWEEPER ASS'Y,(TIRE TYPE)

SN: 19001-UP

1шт.

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.T4250-51A0 TO T4250-58A0.

-1шт.

|1

363-N90-3121

SWEEPER ASS'Y,(IRON WHEEL TYPE)

SN: 19001-UP

1шт.

|1

363-Z56-3520

SWEEPER ASS'Y,(TIRE TYPE)

SN: 19001-UP

1шт.

|$$6

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.T4250-51A0 TO T4250-58A0.

-1шт.

|1

362-Z56-4200

CYLINDER ASS'Y,L.H.

SN: 19001-UP

1шт.

|1

362-Z56-4100

CYLINDER ASS'Y,R.H.

SN: 19001-UP

1шт.

1

362-Z56-4190

CYLINDER,L.H.

SN: 19001-UP

1шт.

|1

362-Z56-4180

CYLINDER,R.H.

SN: 19001-UP

1шт.

2

362-Z56-4110

BUSHING

SN: 19001-UP

1шт.

3

07020-00675

FITTING,GREASE

SN: 19001-UP

1шт.

4

363-N90-3970

HEAD,CYLINDER

SN: 19001-UP

1шт.

5

363-N90-3930

BUSHING

SN: 19001-UP

1шт.

6

363-N90-3940

PACKING,ROD

SN: 19001-UP

1шт.

7

363-N90-3950

RING,BACK-UP

SN: 19001-UP

1шт.

8

363-N90-3980

SEAL,DUST

SN: 19001-UP

1шт.

9

363-N90-3910

O-RING

SN: 19001-UP

1шт.

10

363-N90-3920

RING,BACK-UP

SN: 19001-UP

1шт.

11

363-N90-3960

O-RING

SN: 19001-UP

1шт.

12

363-N90-3990

ROD,PISTON

SN: 19001-UP

1шт.

13

362-Z56-4110

BUSHING

SN: 19001-UP

1шт.

14

07020-00675

FITTING,GREASE

SN: 19001-UP

1шт.

15

362-Z56-4130

PISTON

SN: 19001-UP

1шт.

16

362-Z56-4150

PACKING,PISTON

SN: 19001-UP

2шт.

17

362-Z56-4140

RING,BACK-UP

SN: 19001-UP

2шт.

18

362-Z56-4170

HOLDER

SN: 19001-UP

1шт.

19

362-Z56-4160

O-RING

SN: 19001-UP

1шт.

20

362-Z56-4120

PIN,SPRING

SN: 19001-UP

1шт.
