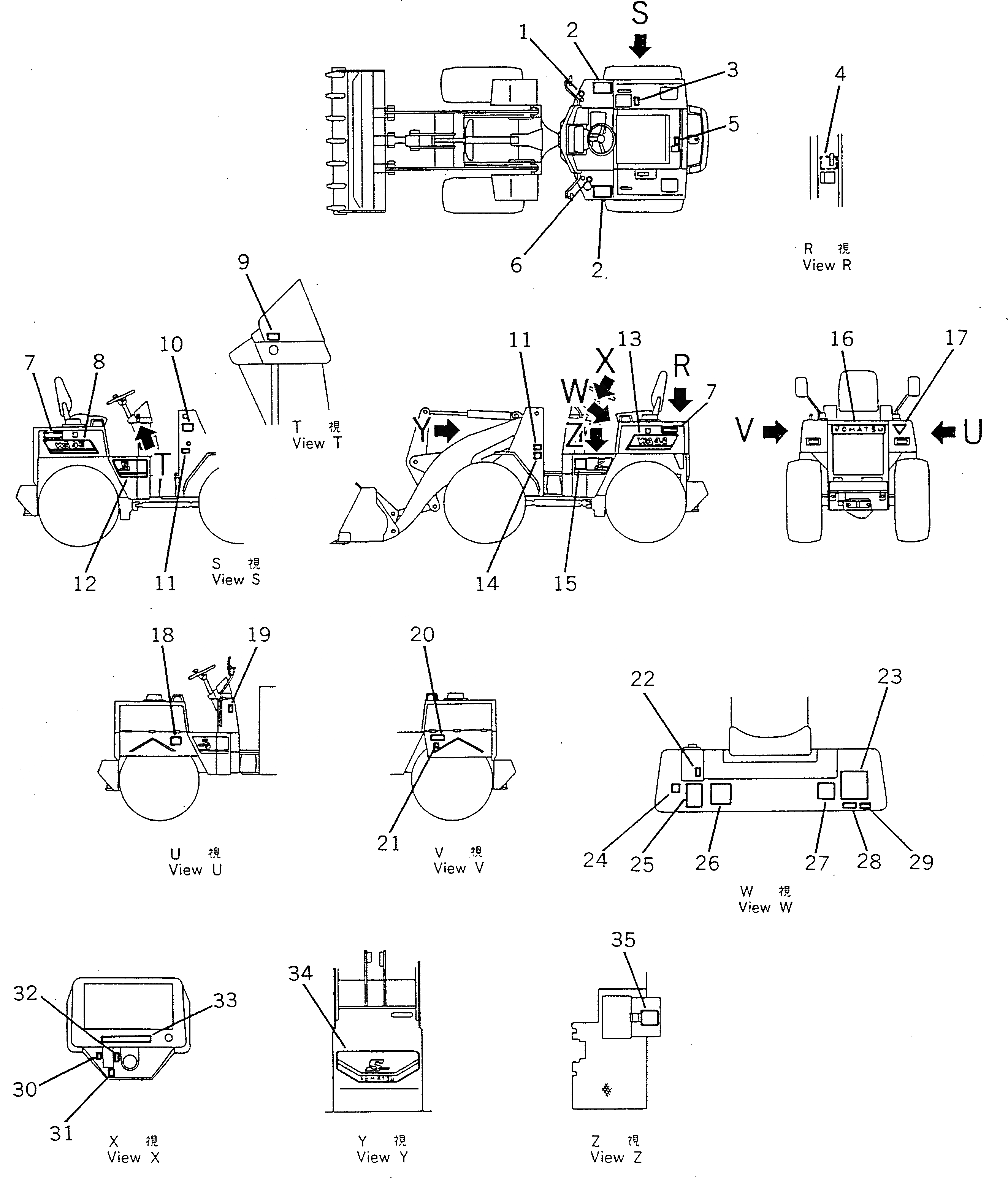

Запчасти Komatsu WA40-2 МАРКИРОВКА (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09669-00003

PLATE, CAUTION,HYDRAULIC OIL

SN: 3001-UP

1шт.

2

362-54-38320

SEAT,NONSKID

SN: 3001-UP

2шт.

3

362-54-27140

PLATE, OPERATING,WORK EQUIPMENT CONTROL LEVER

SN: 3001-UP

1шт.

4

363-54-28210

PLATE, CAUTION,HOOD

SN: 3001-UP

1шт.

5

362-54-17180

PLATE, CAUTION,ENGINE OPERATION

SN: 3001-UP

1шт.

6

09669-00002

PLATE, CAUTION,FUEL OIL

SN: 3001-UP

1шт.

7

20Y-00-11481

PLATE, MARK,AVANCE

SN: 3001-UP

2шт.

8

363-54-28171

PLATE, MARK,WA40

SN: 3001-UP

1шт.

9

362-54-38150

PLATE, OPERATING,STARTING SWITCH

SN: 3001-UP

1шт.

10

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

SN: 3001-UP

1шт.

10

04418-13060

SCREW

SN: 3001-UP

4шт.

11

362-54-17260

PLATE, CAUTION,INSPECTION AND MAINTENANCE

SN: 3001-UP

2шт.

12

362-54-38221

PLATE, MARK

SN: 3001-UP

1шт.

13

363-54-28161

PLATE, MARK,WA40

SN: 3001-UP

1шт.

14

362-54-17160

PLATE, CAUTION,ARTICURATE LOCK

SN: 3001-UP

1шт.

15

362-54-38211

PLATE, MARK

SN: 3001-UP

1шт.

16

09690-50500

PLATE, MARK,KOMATSU

SN: 3001-UP

1шт.

17

362-54-38191

PLATE, MARK

SN: 3001-UP

1шт.

18

09655-00120

PLATE, INSTRUCTION,OIL FILTER

SN: 3001-UP

1шт.

19

363-54-28130

PLATE,KOGATA TOKUSHU

SN: 3001-UP

1шт.

20

363-54-28230

PLATE, CAUTION,AIR CLEANER

SN: 3001-UP

1шт.

21

20N-98-21290

PLATE, CAUTION,FUEL FILTER

SN: 3001-UP

1шт.

22

09685-00002

PLATE, OPERATING,WORK EQUIPMENT LOCK LEVER

SN: 3001-UP

1шт.

23

363-54-28110

CHART, OIL

SN: 3001-UP

1шт.

24

09653-00110

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 3001-UP

1шт.

25

363-54-28180

PLATE, DATA

SN: 3001-UP

1шт.

26

362-54-17140

PLATE, CAUTION,STARTING AND AFTER OPERATING

SN: 3001-UP

1шт.

27

362-54-17150

PLATE, CAUTION,BEFORE OPERATING

SN: 3001-UP

1шт.

28

363-54-28250

PLATE, CAUTION,HOSE MAINTENANCE

SN: 3001-UP

1шт.

29

09652-01121

PLATE, CAUTION,FUEL TANK WATER DRAIN

SN: 3001-UP

1шт.

30

363-54-28140

PLATE, OPERATING,SPEED CONTROL

SN: 3001-UP

1шт.

31

363-54-28190

PLATE, OPERATING,TRANSMISSION LOCK LEVER

SN: 3001-UP

1шт.

32

363-54-28150

PLATE, OPERATING,TRANSMISSION F-R

SN: 3001-UP

1шт.

33

363-54-28240

PLATE, MARK,SYMBOL

SN: 3001-UP

1шт.

34

362-54-38181

PLATE, MARK,SILENT

SN: 3001-UP

1шт.

35

363-54-28220

PLATE, CAUTION,BRAKE OIL

SN: 3001-UP

1шт.
