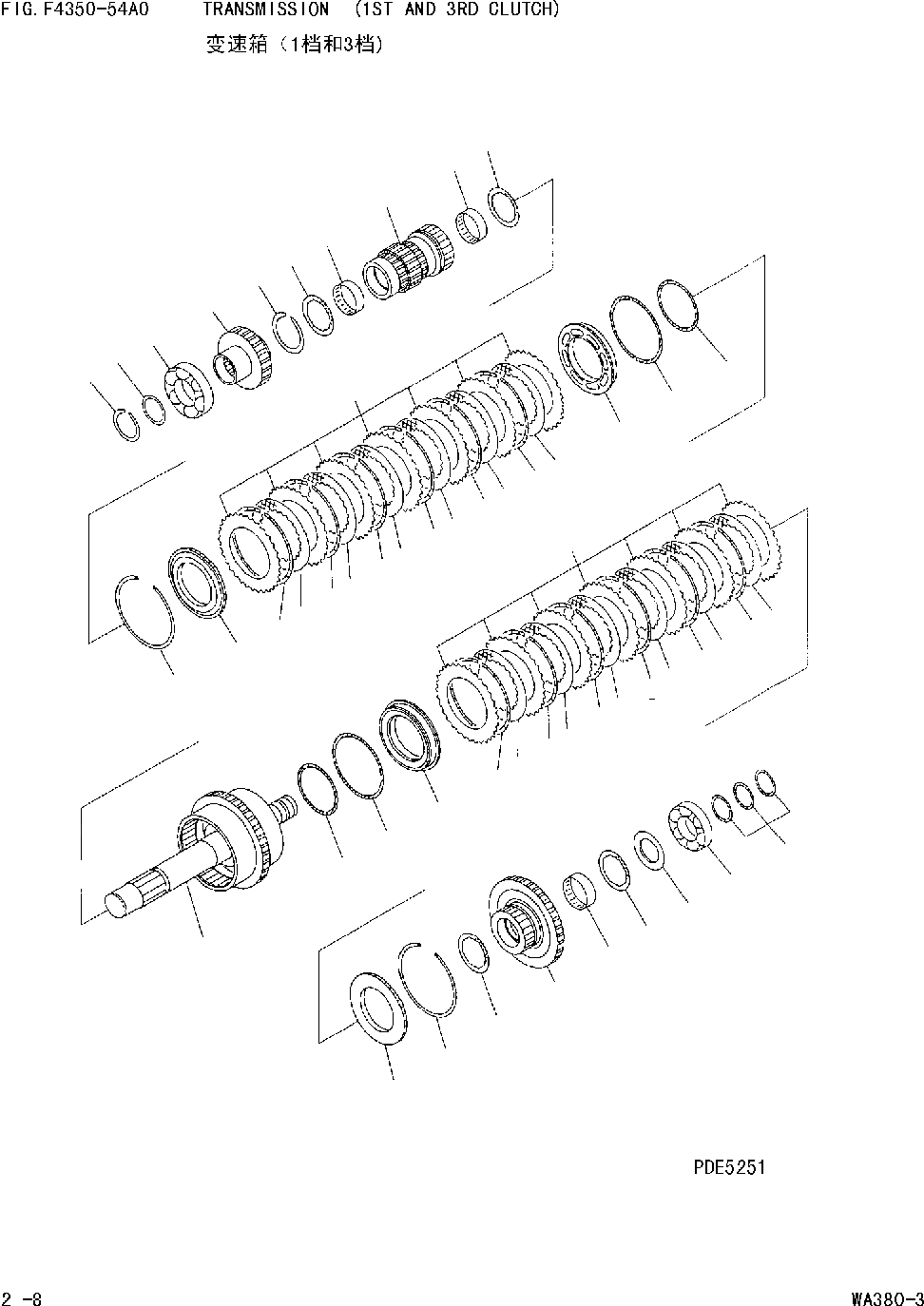

Запчасти Komatsu WA380-DZ-3 ТРАНСМИССИЯ(1 И 3 МУФТА) [ТРАНСМИССИЯ]

|$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$1

-1шт.

|$3

714-12-10011

TRANSMISSION ASS'Y

Field_2: 10460-

1шт.

|$4

714-12-10010

TRANSMISSION ASS'Y

Field_2: 10119-10459

1шт.

|$1

-1шт.

|$6

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-71A0

-1шт.

|$1

-1шт.

1

714-12-12020

CLUTCH ASS'Y,1ST AND 3RD

Field_2: 10119-

1шт.

1

714-12-12120

SHAFT ASS'Y

Field_2: 10119-

1шт.

2

714-12-12660

PISTON,1ST AND 3RD

Field_2: 10119-

2шт.

3

714-12-19711

DISC

Field_2: 10119-

12шт.

4

714-16-19730

PLATE,SEPARATE

Field_2: 10119-

14шт.

5

419-15-12133

SPRING,WAVE

Field_2: 10119-

12шт.

6

714-12-12610

PLATE,END

Field_2: 10119-

2шт.

7

419-15-12140

RING,SNAP

Field_2: 10119-

2шт.

8

714-16-19220

RING,SEAL

Field_2: 10119-

2шт.

9

714-16-19210

RING,SEAL

Field_2: 10119-

2шт.

10

714-08-19570

WASHER,THRUST

Field_2: 10119-

3шт.

11

714-08-19560

WASHER,THRUST

Field_2: 10119-

1шт.

12

419-15-12640

BEARING,NEEDLE

Field_2: 10119-

2шт.

13

419-15-12271

BEARING,NEEDLE

Field_2: 10119-

1шт.

14

714-11-12720

SPACER

Field_2: 10119-

1шт.

15

714-12-12910

SPACER

Field_2: 10119-

1шт.

16

04066-00060

RING,SNAP

Field_2: 10119-

1шт.

17

04066-00062

RING,SNAP

Field_2: 10119-

1шт.

18

714-12-12440

GEARЃA49 TEETH,3RD

Field_2: 10119-

1шт.

19

714-12-12430

GEARЃA21 TEETH,1ST

Field_2: 10119-

1шт.

20

714-12-12510

GEARЃA29 TEETH,2ND

Field_2: 10119-

1шт.

21

06040-06212

BEARING,

Field_2: 10119-

1шт.

22

714-12-19340

BEARING,ROLLER

Field_2: 10119-

1шт.

23

419-15-12122

RING,SEAL

Field_2: 10119-

1шт.
