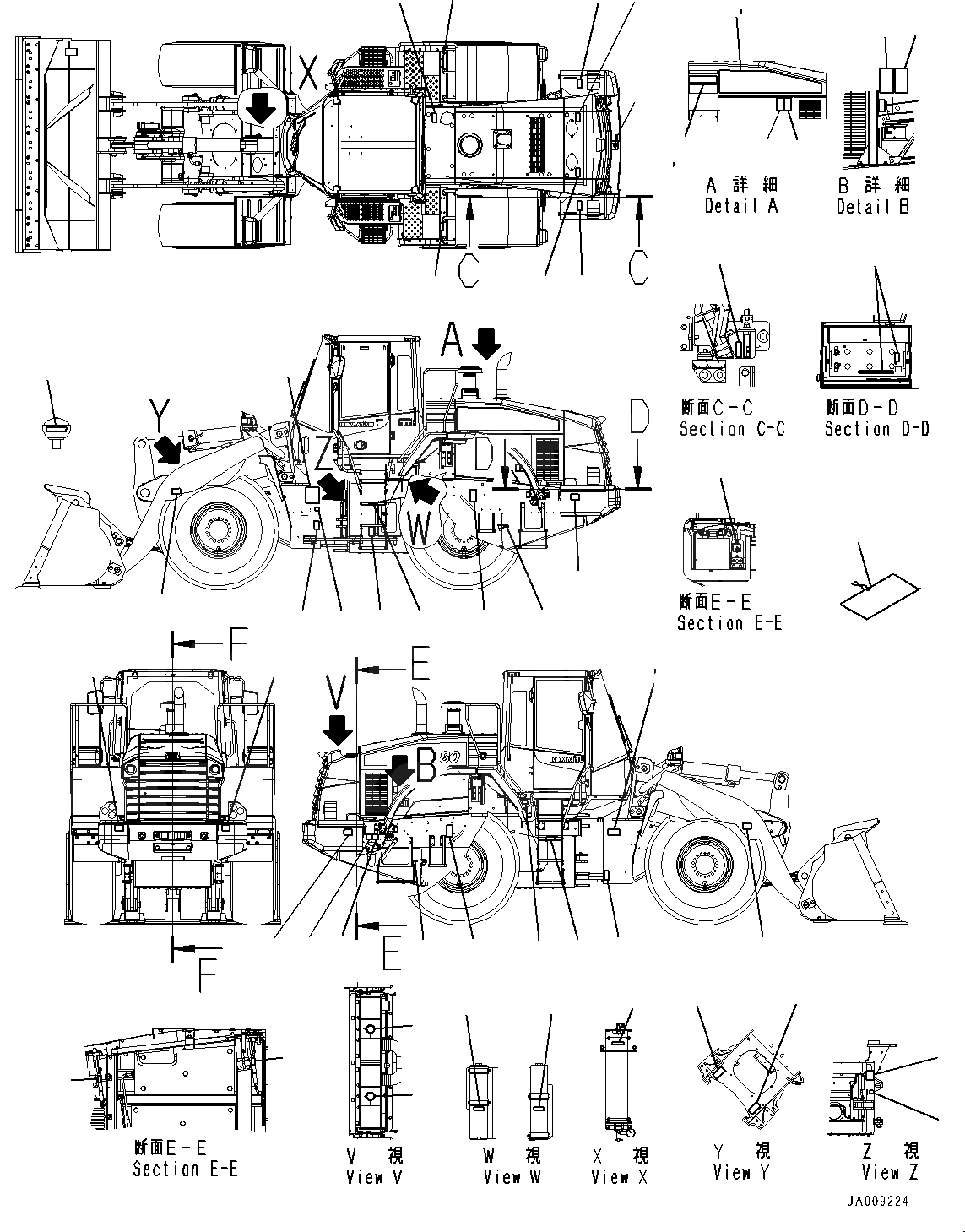

Запчасти Komatsu WA380-7 ТАБЛИЧКИ, EXTERIOR (№-) ТАБЛИЧКИ, АНГЛ., С -EPC РЫЧАГ УПРАВЛЕНИЕ ПОГРУЗКОЙ, ДЛЯ СТРАН ЕС НОВ. NOISE ARRANGEMENT

|$0

423-93-41370

Plate Assembly

SN: 10001-UP

1шт.

1

Plate, Remote Grease, Cylinder

SN: 10001-UP

1шт.

2

Plate, Remote Grease, Rear Axle

SN: 10001-UP

1шт.

3

Plate, Radiator Drain

SN: 10001-UP

1шт.

4

Plate, Engine Oil Drain

SN: 10001-UP

1шт.

5

Plate, Parking Brake Emergency Release Method

SN: 10001-UP

1шт.

6

09805-C0641

Decal, Caution, Footing

SN: 10001-UP

2шт.

7

423-93-51150

Lubrication Chart

SN: 10001-UP

1шт.

8

423-93-51110

Plate, Machine Model, L.H.

SN: 10001-UP

1шт.

9

423-93-51120

Plate, Machine Model, R.H.

SN: 10001-UP

1шт.

10

423-93-51130

Plate, Stripe, L.H.

SN: 10001-UP

1шт.

11

423-93-51141

Plate, Stripe, R.H.

SN: 10001-UP

1шт.

12

09806-C0883

Plate, Danger, Keep Away from Machine

SN: 10001-UP

2шт.

13

09960-01601

Mark, Lift Point and Tie Down Point Marks

SN: 10001-UP

4шт.

14

09652-31241

Plate, Caution, Diesel Fuel

SN: 10001-UP

1шт.

15

09652-61241

Plate, Fuel

SN: 10001-UP

1шт.

16

09659-A057B

Plate, Warning, Explosion Hazard

SN: 10001-UP

1шт.

17

09659-A057B

Plate, Warning, Explosion Hazard

SN: 10001-UP

2шт.

18

09659-A057B

Plate, Warning, Explosion Hazard

SN: 10001-UP

1шт.

19

09602-08000

Plate, Name (Limited Supply)

SN: 10001-UP

1шт.

20

04418-13060

Screw

SN: 10001-UP

4шт.

20

426-93-21570

Plate Assembly

SN: 10001-UP

1шт.

21

09653-A0641

Plate, Warning, High Temperature

SN: 10001-UP

1шт.

22

09653-A0641

Plate, Warning, High Temperature

SN: 10001-UP

1шт.

23

09808-A1201

Plate, Warning, Battery Cables

SN: 10001-UP

2шт.

24

09162-C0641

Plate, Danger, Keep Off

SN: 10001-UP

2шт.

25

09161-C0641

Plate, Warning, Articulation Lock

SN: 10001-UP

1шт.

26

09667-A0880

Plate, Caution, Rotating Object

SN: 10001-UP

2шт.

27

09653-A0641

Plate, Warning, High Temperature

SN: 10001-UP

1шт.

28

09664-62A11

Plate, Danger, Battery

SN: 10001-UP

2шт.

29

134-98-71420

Plate, Pre Filter Caution

SN: 10001-UP

1шт.

30

14X-98-35181

Plate, Reflector

SN: 10001-UP

2шт.

31

09963-A1640

Tag, Danger, Do Not Operate

SN: 10001-UP

1шт.

32

09642-A0480

Plate, Service Instruction

SN: 10001-UP

1шт.

33

09697-00001

Plate, Battery Disconnect Switch

SN: 10001-UP

1шт.

34

09685-00001

Plate, Symbol, Lock/Unlock

SN: 10001-UP

2шт.

35

09659-A0641

Plate, Warning, Explosion Hazard

SN: 10001-UP

4шт.

36

23B-53-71190

Plate, Caution, Radiator Cap

SN: 10001-UP

2шт.

37

423-93-41410

Plate, Side Reflector

SN: 10001-UP

4шт.

38

423-93-41420

Plate, Step Side Reflector

SN: 10001-UP

2шт.

39

423-93-51280

Plate

SN: 10001-UP

1шт.
