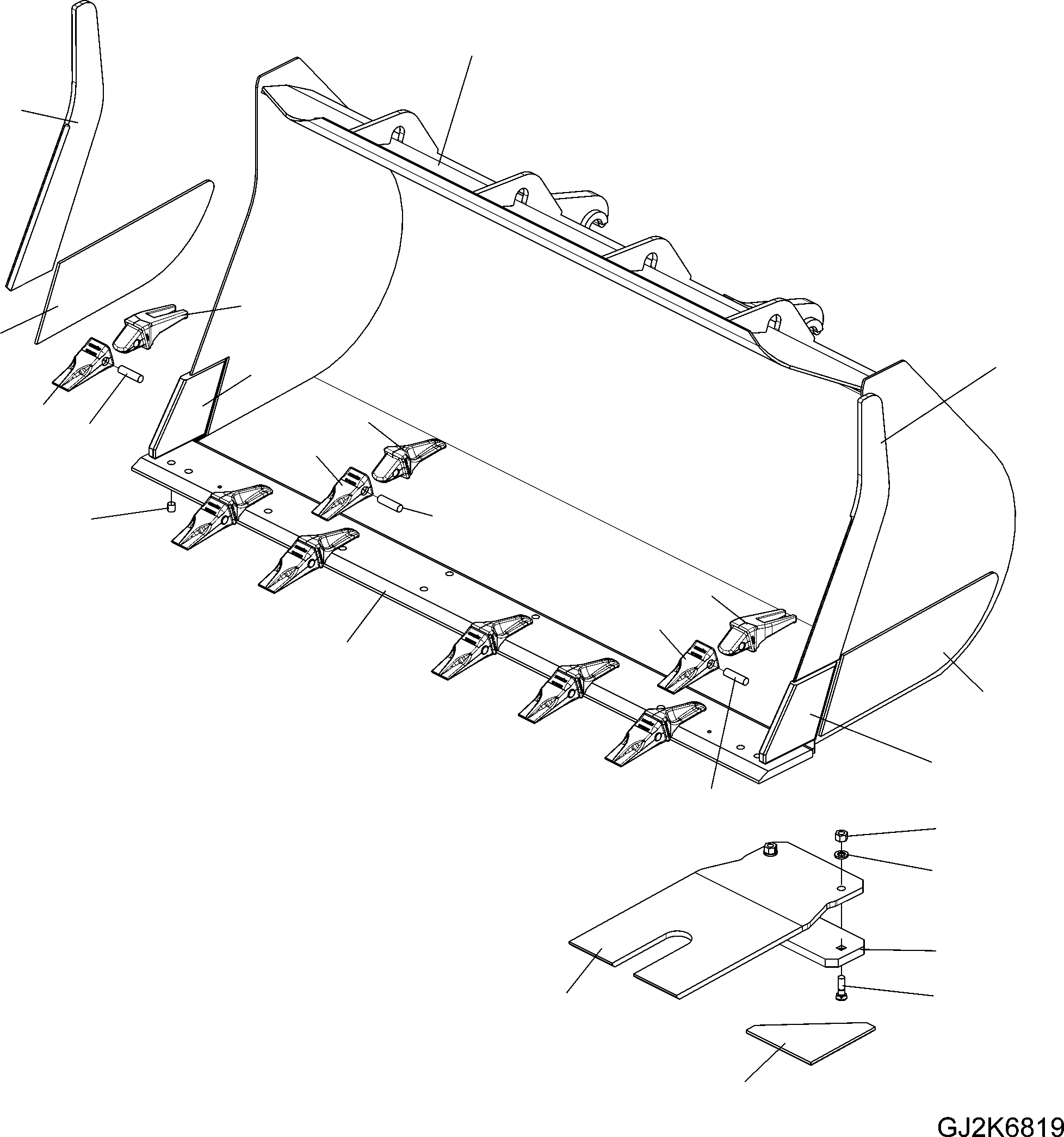

Запчасти Komatsu WA380-6 БЫСТРОСЪЕМН. МЕХ-М КОВШ .CBM (С TEETH) (C-FR) T РАБОЧЕЕ ОБОРУДОВАНИЕ

1

423-75-H2K40

BUCKET

SN: H60051-UP

1шт.

2

423-71-H2170

EDGE, (WELDED)

SN: H60051-UP

1шт.

3

423-75-H2F20

BLADE, (WELDED)

SN: H60051-UP

2шт.

4

423-75-H2C40

REINFORCEMENT, RHS, (WELDED)

SN: H60051-UP

1шт.

5

423-75-H2C50

REINFORCEMENT, LHS, (WELDED)

SN: H60051-UP

1шт.

6

423-75-H2B30

REINFORCEMENT, (WELDED)

SN: H60051-UP

2шт.

7

419-72-H2480

PLATE, (WELDED)

SN: H60051-UP

2шт.

8

423-75-H2J30

SKID, (WELDED)

SN: H60051-UP

2шт.

9

424-73-H2B70

WEARE PLATE

SN: H60051-UP

2шт.

10

416-71-H2580

BOLT

SN: H60051-UP

4шт.

11

01643-32260

WASHER

SN: H60051-UP

4шт.

12

421-70-H2A20

NUT

SN: H60051-UP

4шт.

13

419-71-H2920

TOOTH HOLDER, RHS, (WELDED)

SN: H60051-UP

1шт.

14

419-71-H2290

TOOTH HOLDER, (WELDED)

SN: H60051-UP

6шт.

15

419-71-H2910

TOOTH HOLDER, LHS, (WELDED)

SN: H60051-UP

1шт.

16

419-71-H2310

TOOTH

SN: H60051-UP

8шт.

17

419-71-H2320

SAFETY CATCH

SN: H60051-UP

8шт.

18

423-72-H2780

PIN

SN: H60051-UP

4шт.
