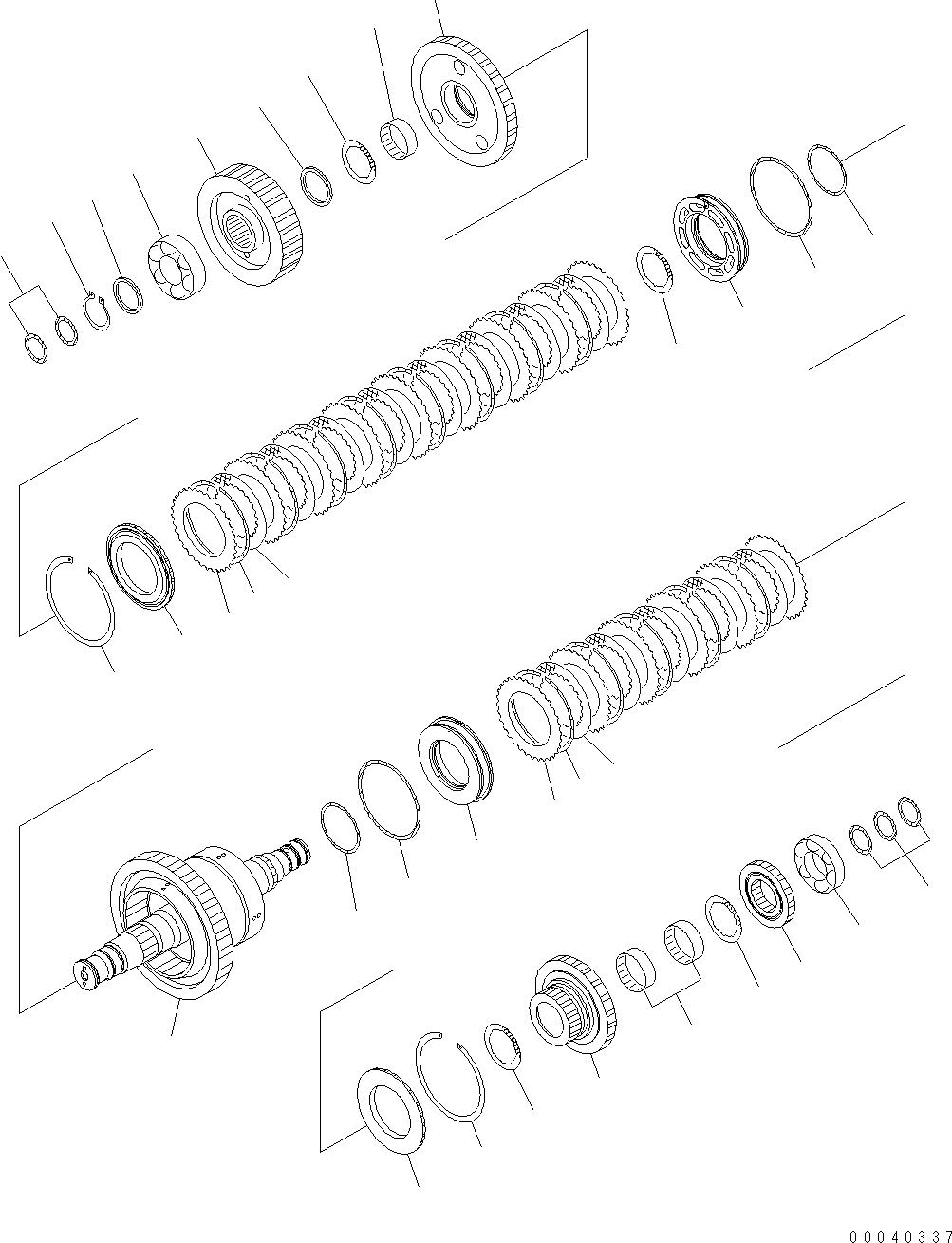

Запчасти Komatsu WA380-6 ТРАНСМИССИЯ (2 И 3 МУФТА) F ТРАНСМИССИЯ

|$1

423-15-H1112

TRANSMISSION ASSEMBLY

SN: H60741-UP

1шт.

|$2

423-15-H1111

TRANSMISSION ASSEMBLY

SN: H60051-H60740

1шт.

|$3

423-15-H1122

TRANSMISSION ASSEMBLY, WITH LOCK UP

SN: H60716-UP

1шт.

|$4

423-15-H1121

TRANSMISSION ASSEMBLY, WITH LOCK UP

SN: H60051-H60715

1шт.

|$5

714-12-32030

CLUTCH, 2ND AND 3RD

SN: H60051-UP

1шт.

1

714-12-32133

SHAFT, 2ND AND 3RD

SN: H60051-UP

1шт.

|$7

0

SHAFT, LOWER

SN: H60051-UP

1шт.

|$8

0

BALL

SN: H60051-UP

2шт.

|$9

0

HOUSING

SN: H60051-UP

1шт.

|$10

0

PLUG

SN: H60051-UP

1шт.

2

714-12-32662

PISTON, RANGE

SN: H60051-UP

2шт.

3

714-12-19711

DISK

SN: H60051-UP

13шт.

4

714-16-19730

PLATE, SEPARATE

SN: H60051-UP

15шт.

5

56D-15-12710

RING

SN: H60051-UP

13шт.

6

714-12-12610

PLATE, END

SN: H60051-UP

2шт.

7

419-15-12140

RING, SNAP

SN: H60051-UP

2шт.

8

714-16-19220

RING, SEAL, (K1)

SN: H60051-UP

2шт.

9

714-07-19320

RING, SEAL, (K1)

SN: H60051-UP

2шт.

10

714-08-19570

WASHER, THRUST

SN: H60051-UP

3шт.

11

714-23-19431

BEARING

SN: H60051-UP

3шт.

12

714-12-32463

GEAR, 51 TEETH, 2ND

SN: H60051-UP

1шт.

13

714-12-32452

GEAR, 38 TEETH, 3RD

SN: H60051-UP

1шт.

14

714-12-32533

GEAR, 49 TEETH, OUTPUT

SN: H60051-UP

1шт.

15

714-12-32541

GEAR, 27 TEETH, 4TH

SN: H60051-UP

1шт.

16

418-17-39330

BEARING

SN: H60051-UP

1шт.

17

714-07-29340

BEARING

SN: H60051-UP

1шт.

18

714-12-33860

SPACER

SN: H60051-UP

1шт.

19

714-12-12910

SPACER

SN: H60051-UP

1шт.

20

04064-06020

RING

SN: H60051-UP

1шт.

21

714-12-39570

WASHER, THRUST

SN: H60051-UP

1шт.

22

714-12-39220

RING, SEAL, (K1)

SN: H60051-UP

3шт.

23

714-12-39210

RING, SEAL, (K1)

SN: H60051-UP

2шт.
