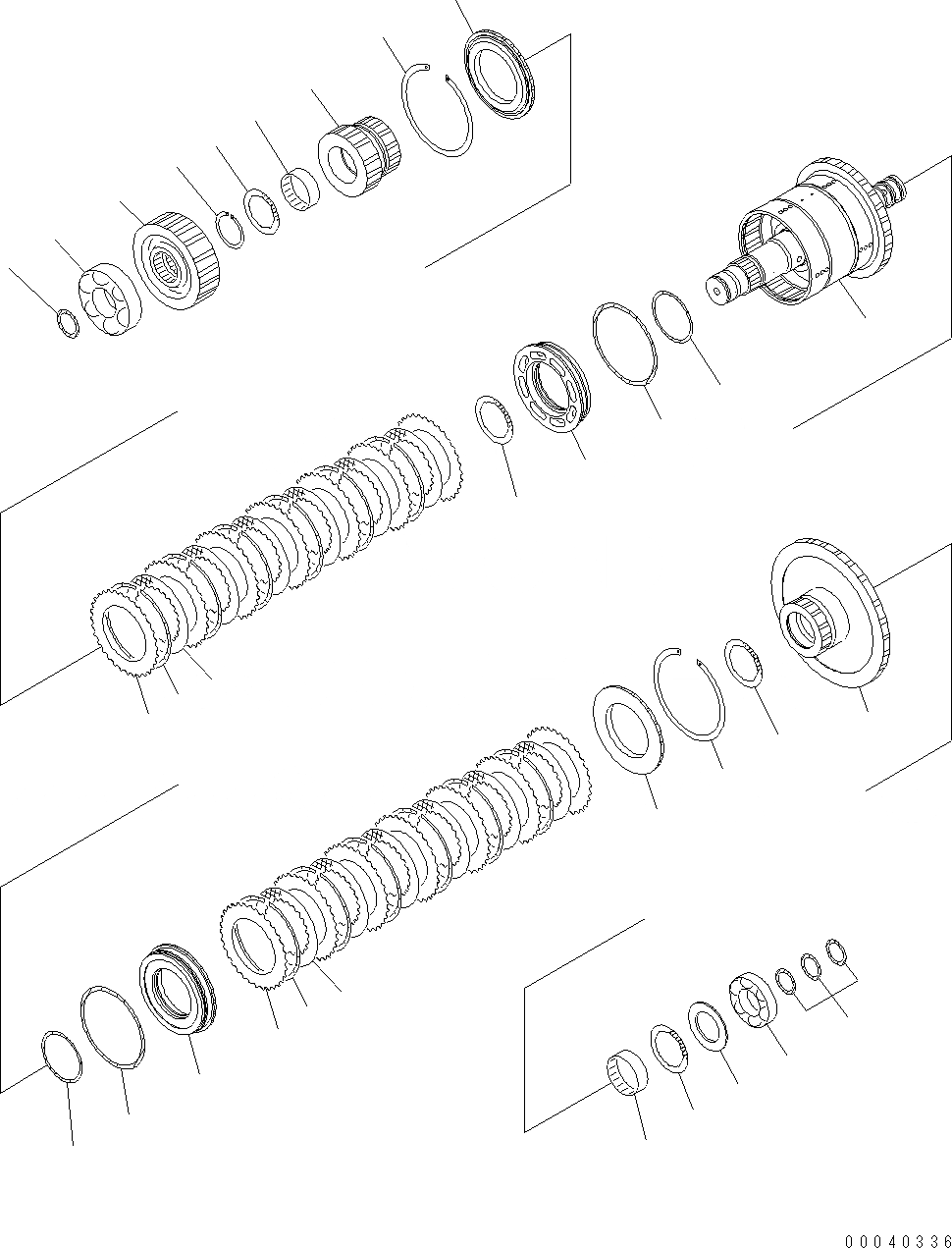

Запчасти Komatsu WA380-6 ТРАНСМИССИЯ (1 И 4 МУФТА) F ТРАНСМИССИЯ

|$1

423-15-H1112

TRANSMISSION ASSEMBLY

SN: H60741-UP

1шт.

|$2

423-15-H1111

TRANSMISSION ASSEMBLY

SN: H60051-H60740

1шт.

|$3

423-15-H1122

TRANSMISSION ASSEMBLY, WITH LOCK UP

SN: H60716-UP

1шт.

|$4

423-15-H1121

TRANSMISSION ASSEMBLY, WITH LOCK UP

SN: H60051-H60715

1шт.

|$5

714-12-32020

CLUTCH, 1ST AND 4TH

SN: H60051-UP

1шт.

1

714-12-32122

SHAFT, 1ST AND 4TH

SN: H60051-UP

1шт.

|$7

0

SHAFT, UPPER

SN: H60051-UP

1шт.

|$8

0

HOUSING

SN: H60051-UP

1шт.

|$9

0

ORIFICE

SN: H60051-UP

1шт.

|$10

0

BALL

SN: H60051-UP

2шт.

2

714-12-32662

PISTON, RANGE

SN: H60051-UP

2шт.

3

714-12-19711

DISK

SN: H60051-UP

12шт.

4

714-16-19730

PLATE, SEPARATE

SN: H60051-UP

14шт.

5

56D-15-12710

RING

SN: H60051-UP

12шт.

6

714-12-12610

PLATE, END

SN: H60051-UP

2шт.

7

419-15-12140

RING, SNAP

SN: H60051-UP

2шт.

8

714-16-19220

RING, SEAL, (K1)

SN: H60051-UP

2шт.

9

714-07-19320

RING, SEAL, (K1)

SN: H60051-UP

2шт.

10

714-08-19570

WASHER, THRUST

SN: H60051-UP

3шт.

11

714-08-19560

WASHER, THRUST

SN: H60051-UP

1шт.

12

714-23-19420

BEARING

SN: H60051-UP

1шт.

13

714-23-19431

BEARING

SN: H60051-UP

1шт.

14

714-11-12720

SHIM

SN: H60051-UP

1шт.

15

714-07-22550

RING, SNAP

SN: H60051-UP

1шт.

16

714-12-32442

GEAR, 62 TEETH, 4TH

SN: H60051-UP

1шт.

17

714-12-32432

GEAR, 25 TEETH, 1ST

SN: H60051-UP

1шт.

18

714-12-32511

GEAR, 36 TEETH, 2ND

SN: H60051-UP

1шт.

19

714-12-19380

BEARING

SN: H60051-UP

1шт.

20

714-12-39340

BEARING

SN: H60051-UP

1шт.

21

714-12-39220

RING, SEAL, (K1)

SN: H60051-UP

3шт.

22

714-12-39230

RING, SEAL, (K1)

SN: H60051-UP

1шт.
