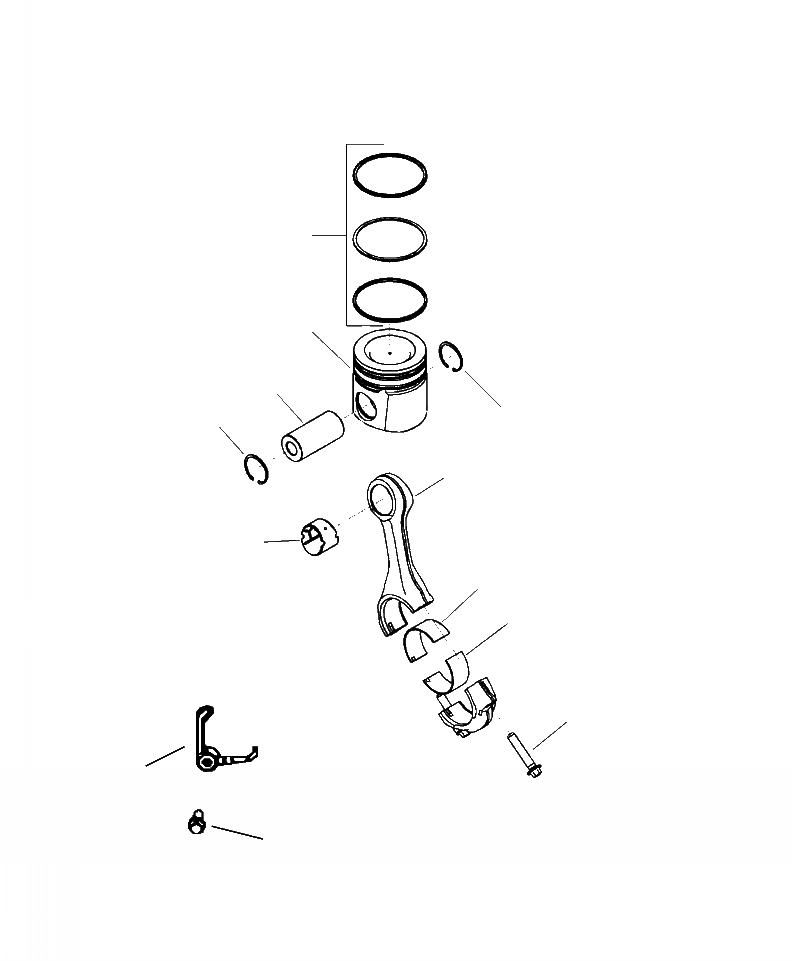

Запчасти Komatsu WA380-6 A-AA ШАТУН И ПОРШЕНЬ ДВИГАТЕЛЬ

|$0

6737-32-3121

ROD, ENGINE CONNECTING

6шт.

1

NSS

ROD, ENGINE CONNECTING

1шт.

2

6732-31-3320

BOLT, CONNECTING ROD CAP

2шт.

3

6732-31-3132

BUSHING

1шт.

4

6754-32-3410

BEARING, CONNECTING (UPPER)

6шт.

5

6732-31-3420

BEARING, CONNECTING (LOWER)

6шт.

|$6

6754-31-2110

KIT, ENGINE PISTON

6шт.

6

NSS

PISTON

1шт.

7

6754-31-2410

PIN, PISTON

1шт.

8

6754-31-2010

SET, PISTON RING

1шт.

|$10

NSS

RING, COMPRESSION PISTON (TOP)

1шт.

|$11

NSS

RING, COMPRESSION PISTON (2ND)

1шт.

|$12

NSS

RING, OIL PISTON

1шт.

9

6732-31-2420

RING, RETAINING

12шт.

10

6754-21-1191

NOZZLE, PISTON COOLING

6шт.

11

6754-21-1180

SCREW, BANJO CONNECTOR

6шт.

|$33

SERVICE PARTS

16

-1шт.

4

6754-32-3420

BEARING, CONNECTING ROD (0.25 MM OS)

-2шт.

4

6754-32-3430

BEARING, CONNECTING ROD (0.50 MM OS)

-2шт.

4

6754-32-3440

BEARING, CONNECTING ROD (0.75 MM OS)

-2шт.

4

6754-32-3450

BEARING, CONNECTING ROD (1.00 MM OS)

-2шт.

5

6738-39-3400

BEARING, CONNECTING ROD (0.25 MM OS)

-2шт.

5

6738-38-3400

BEARING, CONNECTING ROD (0.50 MM OS)

-2шт.

5

6738-37-3400

BEARING, CONNECTING ROD (0.75 MM OS)

-2шт.

5

6738-36-3400

BEARING, CONNECTING ROD (1.00 MM OS)

-2шт.

6

6754-31-2120

KIT, ENGINE PISTON .50 MM OVERSIZE

-2шт.

|$26

NSS

PISTON, ENGINE

1шт.

7

6754-31-2410

PIN, PISTON

1шт.

8

6754-39-2010

SET, PISTON RING .50 MM OVERSIZE

1шт.

|$29

NSS

RING, COMPRESSION PISTON

1шт.

|$30

NSS

RING, OIL PISTON

1шт.

|$31

NSS

RING, COMPRESSION PISTON

1шт.

9

6732-31-2420

RING, RETAINING

2шт.
