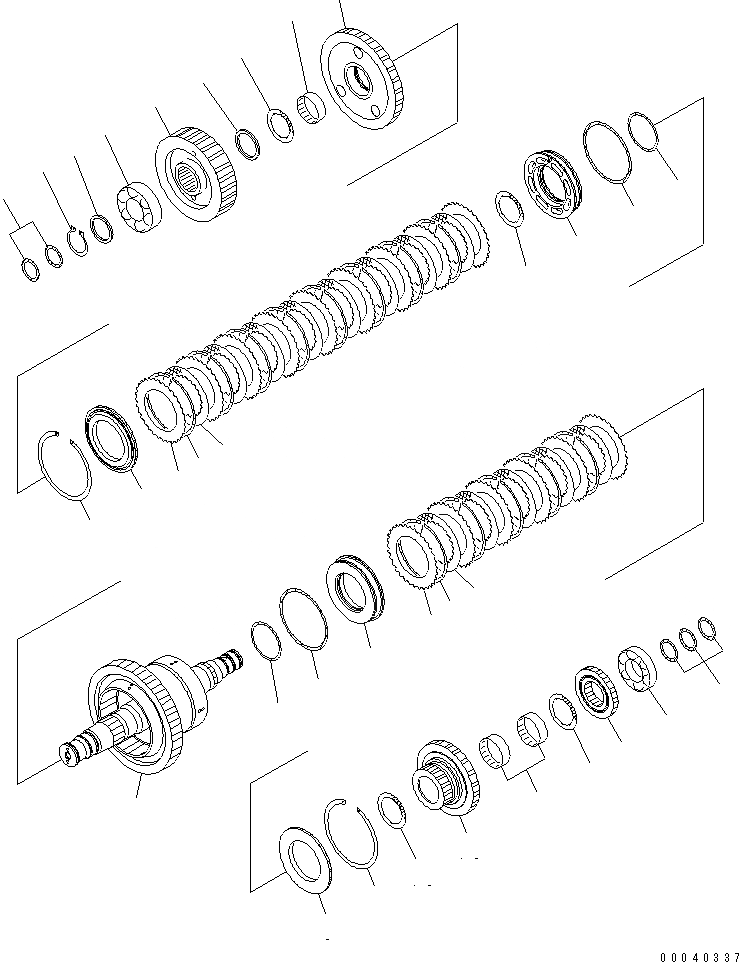

Запчасти Komatsu WA380-6 ТРАНСМИССИЯ (2 И 3 МУФТА)(№-) ТРАНСМИССИЯ
№
Артикул
Название
Примечание
Количество
|$8
714-12-30003
TRANSMISSION ASS'Y
SN: 65628-UP
1шт.
|$9
714-12-30002
TRANSMISSION ASS'Y
SN: 65483-65627
1шт.
|$10
714-12-30001
TRANSMISSION ASS'Y
SN: 65048-65482
1шт.
|$11
714-12-30000
TRANSMISSION ASS'Y
SN: 65001-65047
1шт.
|$$5
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-66A0.
-1шт.
|$13
714-12-30013
TRANSMISSION ASS'Y,(WITH LOCK-UP)
SN: 65628-UP
1шт.
|$14
714-12-30012
TRANSMISSION ASS'Y,(WITH LOCK-UP)
SN: 65483-65627
1шт.
|$15
714-12-30011
TRANSMISSION ASS'Y,(WITH LOCK-UP)
SN: 65038-65482
1шт.
|$16
714-12-30010
TRANSMISSION ASS'Y,(WITH LOCK-UP)
SN: 65001-65037
1шт.
|$$10
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-66A1, F4350-68A1.
-1шт.
|$32
714-12-32030
CLUTCH,2ND AND 3RD
SN: 65001-UP
1шт.
1
714-12-32133
SHAFT AND CYLINDER A,2ND AND 3RD
SN: 65001-UP
1шт.
1
0
SHAFT,LOWER
SN: 65001-UP
1шт.
1
0
BALL
SN: 65001-UP
2шт.
1
0
HOUSING
SN: 65001-UP
1шт.
1
0
PLUG
SN: 65001-UP
1шт.
2
714-12-32662
PISTON,RANGE
SN: 65001-UP
2шт.
12
714-12-32463
GEAR, 51 TEETH,2ND
SN: 65001-UP
1шт.
13
714-12-32452
GEAR, 38 TEETH,3RD
SN: 65001-UP
1шт.
14
714-12-32533
GEAR, 49 TEETH,OUTPUT
SN: 65001-UP
1шт.
15
714-12-32541
GEAR, 27 TEETH,4TH
SN: 65001-UP
1шт.
16
418-17-39330
BEARING
SN: 65001-UP
1шт.
17
714-07-29340
BEARING
SN: 65001-UP
1шт.
18
714-12-33860
SPACER
SN: 65001-UP
1шт.
19
714-12-12910
SPACER
SN: 65001-UP
1шт.
21
714-12-39570
THRUST WASHER,THRUST
SN: 65001-UP
1шт.
Выбрано товаров: 38
