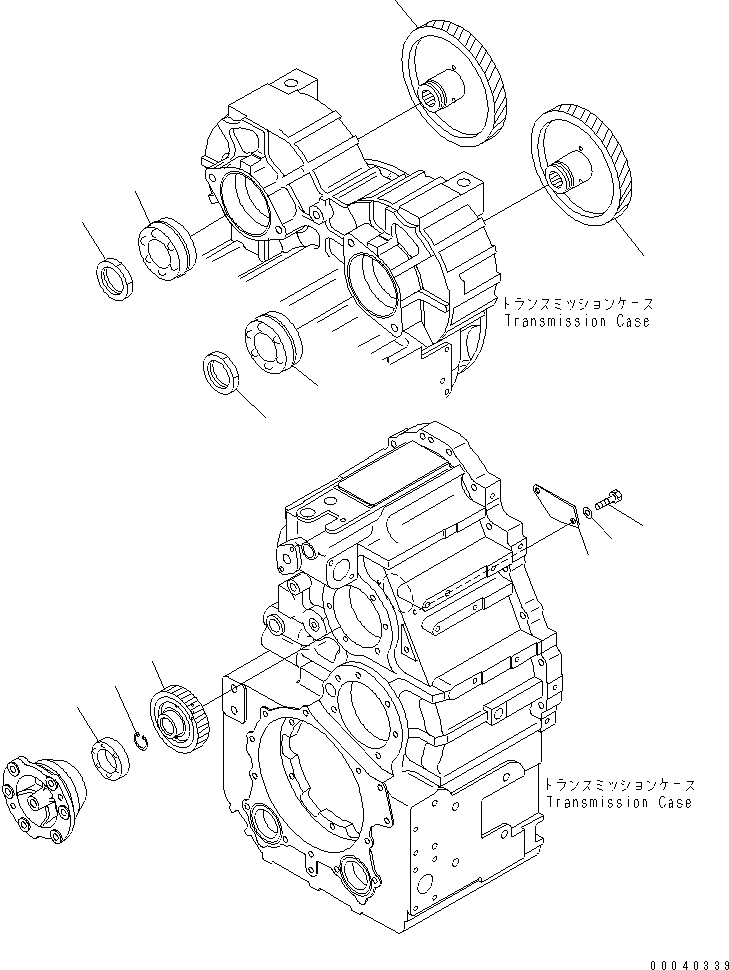

Запчасти Komatsu WA380-6 ТРАНСМИССИЯ (МЕХ-М ОТБОРА МОЩН-ТИ)(№-) ТРАНСМИССИЯ

|$8

714-12-30003

TRANSMISSION ASS'Y

SN: 65628-UP

1шт.

|$9

714-12-30002

TRANSMISSION ASS'Y

SN: 65483-65627

1шт.

|$10

714-12-30001

TRANSMISSION ASS'Y

SN: 65048-65482

1шт.

|$11

714-12-30000

TRANSMISSION ASS'Y

SN: 65001-65047

1шт.

|$$5

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-66A0.

-1шт.

|$13

714-12-30013

TRANSMISSION ASS'Y

SN: 65628-UP

1шт.

|$14

714-12-30012

TRANSMISSION ASS'Y

SN: 65483-65627

1шт.

|$15

714-12-30011

TRANSMISSION ASS'Y

SN: 65038-65482

1шт.

|$16

714-12-30010

TRANSMISSION ASS'Y

SN: 65001-65037

1шт.

|$$10

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-66A1, F4350-68A1.

-1шт.

1

714-12-36612

GEAR, 28 TEETH,IDLE

SN: 65001-UP

1шт.

2

06002-32010

BEARING

SN: 65001-UP

2шт.

3

04065-03012

RING

SN: 65001-UP

1шт.

4

714-12-38560

COVER

SN: 65001-UP

1шт.

5

01010-81025

BOLT

SN: 65001-UP

2шт.

6

01643-31032

WASHER

SN: 65001-UP

2шт.

7

714-12-33411

GEAR, 94 TEETH

SN: 65001-UP

1шт.

8

711-49-14230

BEARING

SN: 65001-UP

1шт.

9

01530-05814

NUT

SN: 65001-UP

1шт.

10

714-12-33421

GEAR, 90 TEETH

SN: 65001-UP

1шт.

11

711-49-14230

BEARING

SN: 65001-UP

1шт.

12

01530-05814

NUT

SN: 65001-UP

1шт.
