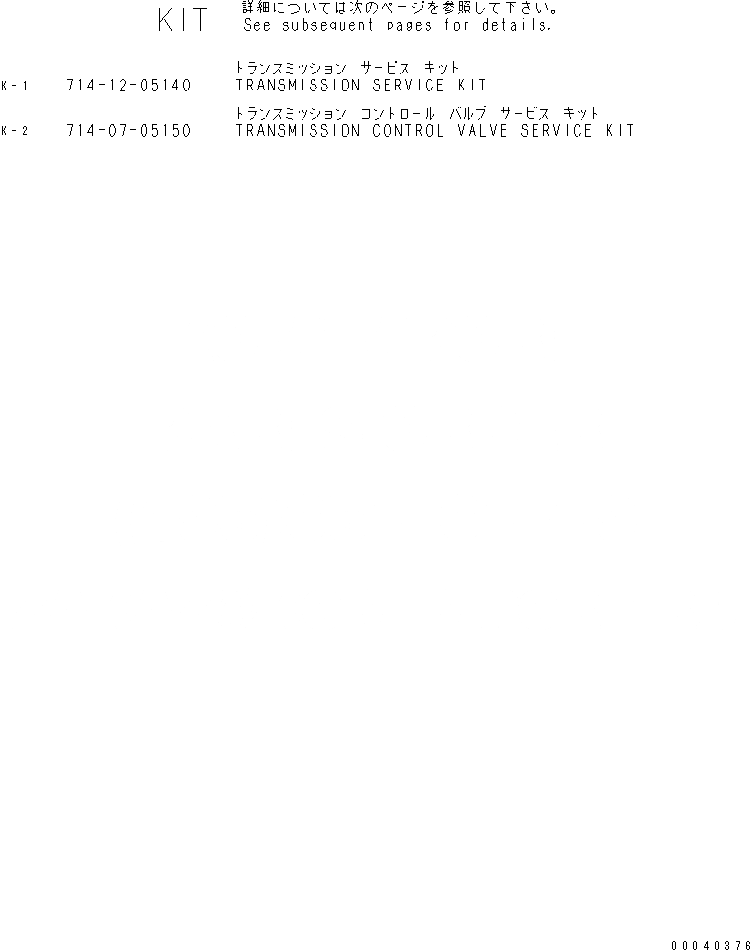

1
714-12-05140
SERVICE KIT,TRANSMISSION
SN: 65001-UP
1шт.
1
02896-61009
O-RING,(F4350-63A0 -36 )
SN: 65001-UP
2шт.
1
02896-61018
O-RING,(F4350-63A0 -4 )
SN: 65001-UP
2шт.
1
02896-61018
O-RING,(F4350-63A0 -17 )
SN: 65001-UP
1шт.
1
02896-61018
O-RING,(F4350-63A0 -24 )
SN: 65001-UP
1шт.
1
07000-A6215
O-RING,(F4350-55A0 -28 )
SN: 65001-UP
1шт.
1
07000-A6245
O-RING,(F4350-55A0 -29 )
SN: 65001-UP
1шт.
1
07000-72012
O-RING,(F4350-55A0 -23 )
SN: 65001-UP
3шт.
1
07000-72021
O-RING,(F4350-51A1 -33 )
SN: 65001-UP
1шт.
1
07000-72065
O-RING,(F4350-64A0 -26 )
SN: 65001-UP
1шт.
1
07000-72080
O-RING,(F4350-51A1 -25 )
SN: 65001-UP
2шт.
1
07000-72135
O-RING,(F4350-51A1 -36 )
SN: 65001-UP
1шт.
1
07000-73022
O-RING,(F4350-51A1 -32 )
SN: 65001-UP
1шт.
1
07000-73030
O-RING,(F4350-51A1 -42 )
SN: 65001-UP
1шт.
1
07000-75055
O-RING,(F4350-55A0 -39 )
SN: 65001-UP
1шт.
1
07000-75085
O-RING,(F4350-63A0 -2 )
SN: 65001-UP
1шт.
1
07000-75120
O-RING,(F4350-51A1 -45 )
SN: 65001-UP
1шт.
1
07000-75270
O-RING,(F4350-51A1 -22 )
SN: 65001-UP
1шт.
1
07001-06215
RING,(F4350-55A0 -30 )
SN: 65001-UP
1шт.
1
07001-06250
BACK-UP RING,(F4350-55A0 -31 )
SN: 65001-UP
1шт.
1
07002-61023
O-RING,(F4350-51A1 -3 )
SN: 65001-UP
1шт.
1
07002-61023
O-RING,(F4350-63A0 -6 )
SN: 65001-UP
2шт.
1
07002-61023
O-RING,(F4350-64A0 -6 )
SN: 65001-UP
3шт.
1
07002-61423
O-RING,(F4350-51A1 -13 )
SN: 65001-UP
3шт.
1
07002-61423
O-RING,(F4350-63A0 -37 )
SN: 65001-UP
2шт.
1
07002-61423
O-RING,(F4350-64A0 -9 )
SN: 65001-UP
1шт.
1
07002-61623
O-RING,(F4350-51A1 -15 )
SN: 65001-UP
4шт.
1
07002-62434
O-RING,(F4350-51A1 -7 )
SN: 65001-UP
1шт.
1
07002-62434
O-RING,(F4350-63A0 -18 )
SN: 65001-UP
1шт.
1
07002-62434
O-RING,(F4350-63A0 -25 )
SN: 65001-UP
1шт.
1
07002-62434
O-RING,(F4350-64A0 -20 )
SN: 65001-UP
1шт.
1
07002-63034
O-RING,(F4350-64A0 -4 )
SN: 65001-UP
1шт.
1
07002-63334
O-RING,(F4350-63A0 -7 )
SN: 65001-UP
3шт.
1
07002-63334
O-RING,(F4350-64A0 -2 )
SN: 65001-UP
1шт.
1
07005-01012
SEAL, WASHER,(F4350-63A0 -30 )
SN: 65001-UP
4шт.
1
07005-01612
SEAL, WASHER,(F4350-63A0 -28 )
SN: 65001-UP
4шт.
1
07005-01612
SEAL, WASHER,(F4350-63A0 -33 )
SN: 65001-UP
4шт.
1
07018-31205
RING,(F4350-66A1 -5 )
SN: 65001-UP
1шт.
1
568-15-12850
RING,(F4350-66A1 -31 )
SN: 65001-UP
2шт.
1
711-35-17151
RING,(F4350-66A1 -30 )
SN: 65001-UP
1шт.
1
714-07-00010
SHIM ASS'Y,(F4350-51A1 -35 )
SN: 65001-UP
1шт.
1
714-07-19320
RING,(F4350-53A0 -9 )
SN: 65001-UP
2шт.
1
714-07-19320
RING,(F4350-54A0 -9 )
SN: 65001-UP
2шт.
1
714-11-19230
RING,(F4350-52A1 -9 )
SN: 65001-UP
2шт.
1
714-12-00020
SHIM ASS'Y,(F4350-51A1 -44 )
SN: 65001-UP
1шт.
1
714-12-00030
SHIM ASS'Y,(F4350-55A0 -9 )
SN: 65001-UP
1шт.
1
714-12-19121
SEAL,(F4350-55A0 -15 )
SN: 65001-UP
1шт.
1
714-12-19121
SEAL,(F4350-55A0 -16 )
SN: 65001-UP
1шт.
1
714-12-19170
SEAL,(F4350-55A0 -17 )
SN: 65001-UP
1шт.
1
714-12-19170
SEAL,(F4350-55A0 -18 )
SN: 65001-UP
1шт.
1
714-12-37210
GASKET,(F4350-55A0 -19 )
SN: 65001-UP
1шт.
1
714-12-39210
RING,(F4350-52A1 -20 )
SN: 65001-UP
5шт.
1
714-12-39210
RING,(F4350-54A0 -23 )
SN: 65001-UP
2шт.
1
714-12-39220
SEAL RING,(F4350-53A0 -21 )
SN: 65001-UP
3шт.
1
714-12-39220
SEAL RING,(F4350-54A0 -22 )
SN: 65001-UP
3шт.
1
714-12-39230
RING,(F4350-52A1 -21 )
SN: 65001-UP
1шт.
1
714-12-39230
RING,(F4350-53A0 -22 )
SN: 65001-UP
1шт.
1
714-16-19210
RING,(F4350-52A1 -10 )
SN: 65001-UP
2шт.
1
714-16-19220
RING,(F4350-53A0 -8 )
SN: 65001-UP
2шт.
1
714-16-19220
RING,(F4350-54A0 -8 )
SN: 65001-UP
2шт.
1
714-21-19810
RING,(F4350-52A1 -22 )
SN: 65001-UP
2шт.
2
714-12-05150
SERVICE KIT,CONTROL VALVE
SN: 65001-UP
1шт.
2
07000-02060
O-RING,(F4350-58A0 -13- )
SN: 65001-UP
1шт.
2
07000-71007
O-RING,(F4350-58A0 -3 )
SN: 65001-UP
1шт.
2
07000-71009
O-RING,(F4350-59A0 -31 )
SN: 65001-UP
2шт.
2
07000-71009
O-RING,(F4350-60A0 -31 )
SN: 65001-UP
3шт.
2
07000-71009
O-RING,(F4350-68A1 -30 )
SN: 65001-UP
1шт.
2
07000-72015
O-RING,(F4350-58A0 -2 )
SN: 65001-UP
4шт.
2
07000-72015
O-RING,(F4350-58A0 -27 )
SN: 65001-UP
6шт.
2
07000-72015
O-RING,(F4350-59A0 -30 )
SN: 65001-UP
8шт.
2
07000-72015
O-RING,(F4350-60A0 -30 )
SN: 65001-UP
12шт.
2
07000-72015
O-RING,(F4350-68A1 -29 )
SN: 65001-UP
4шт.
2
07000-72015
O-RING,(F4350-68A1 -36 )
SN: 65038-UP
4шт.
2
07000-72050
O-RING,(F4350-62A1 -13 )
SN: 65001-UP
1шт.
2
07000-72055
O-RING,(F4350-62A1 -11 )
SN: 65001-UP
1шт.
2
07000-73022
O-RING,(F4350-58A0 -18 )
SN: 65001-UP
2шт.
2
07000-73030
O-RING,(F4350-58A0 -28 )
SN: 65001-UP
1шт.
2
07000-73030
O-RING,(F4350-62A1 -3 )
SN: 65001-UP
5шт.
2
07000-73038
O-RING,(F4350-62A1 -12 )
SN: 65001-UP
2шт.
2
07002-61023
O-RING,(F4350-57A0 -26 )
SN: 65001-UP
1шт.
2
07002-61023
O-RING,(F4350-58A0 -10 )
SN: 65001-UP
3шт.
2
07002-61023
O-RING,(F4350-58A0 -22 )
SN: 65001-UP
1шт.
2
07002-61023
O-RING,(F4350-59A0 -25 )
SN: 65001-UP
1шт.
2
07002-61023
O-RING,(F4350-60A0 -25 )
SN: 65001-UP
1шт.
2
07002-61023
O-RING,(F4350-61A0 -3 )
SN: 65001-UP
2шт.
2
07002-61023
O-RING,(F4350-68A1 -25 )
SN: 65001-UP
1шт.
2
07002-61423
O-RING,(F4350-58A0 -12 )
SN: 65001-UP
3шт.
2
07002-61823
O-RING,(F4350-58A0 -20 )
SN: 65001-UP
1шт.
2
07002-62034
O-RING,(F4350-58A0 -8 )
SN: 65001-UP
1шт.
2
07002-62434
O-RING
SN: 65001-UP
1шт.
2
07002-63034
O-RING,(F4350-61A0 -5 )
SN: 65001-UP
1шт.
2
07002-63034
O-RING,(F4350-61A0 -14 )
SN: 65001-UP
1шт.
2
07002-63034
O-RING,(F4350-61A0 -22 )
SN: 65001-UP
2шт.
2
175-15-56470
SHIM, 0.50MM,(F4350-61A0 -23 )
SN: 65001-UP
2шт.
2
198-15-15570
SHIM, 0.50MM,(F4350-61A0 -10 )
SN: 65001-UP
5шт.
