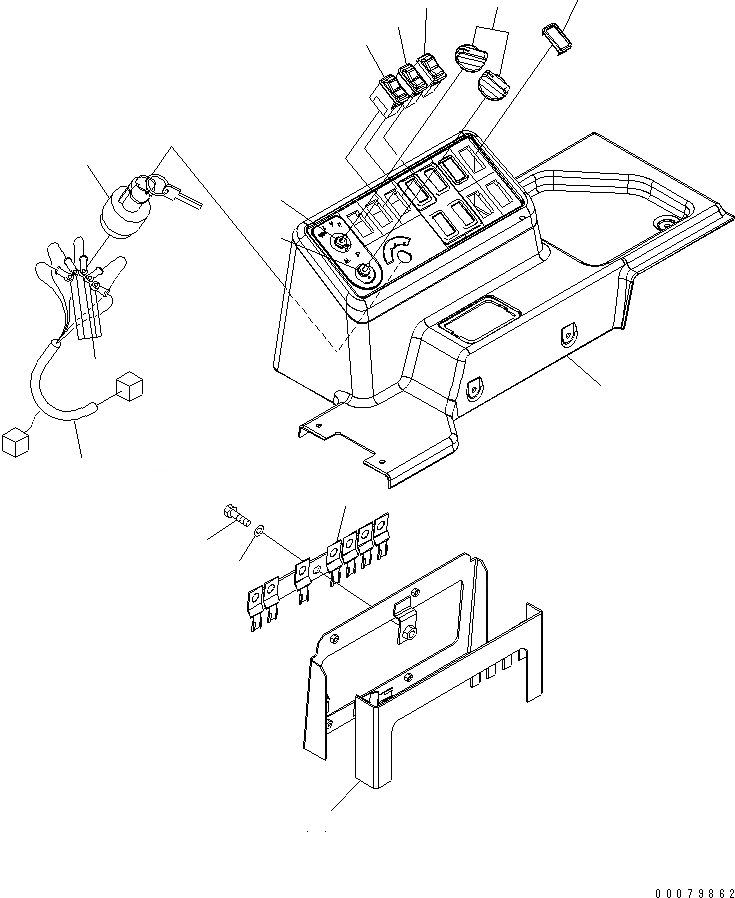

Запчасти Komatsu WA380-5L ОСНОВН. КОНСТРУКЦИЯ (КОРПУС ПЕРЕКЛЮЧАТЕЛЯ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08086-20100

SWITCH,STARTING

SN: A52001-UP

1шт.

2

421-06-36211

SWITCH,POWER MODE

SN: A52001-UP

1шт.

3

421-06-36231

SWITCH,T/M SHIFT MODE

SN: A52001-UP

1шт.

4

421-06-36241

KNOB

SN: A52001-UP

2шт.

5

421-06-36142

SWITCH,COOLING FAN

SN: A52001-UP

2шт.

6

421-06-36152

SWITCH,CUT-OFF

SN: A52001-UP

2шт.

7

421-06-36180

CAP

SN: A52001-UP

8шт.

|$$8

QUANTITY OF 8 FOR STANDARD AND JRB WITH AUXILIARY STEERING.

-1шт.

|$$9

QUANTITY OF 9 FOR STANDARD AND JRB WITHOUT AUXILIARY STEERING AND JOYSTICK STEERING.

-1шт.

8

423-06-31182

WIRING HARNESS

SN: A52001-UP

1шт.

9

08038-00518

CAP

SN: A52001-UP

5шт.

10

421-06-32370

BRACKET

SN: A52001-UP

1шт.

11

01010-81016

BOLT

SN: A52001-UP

1шт.

|$$14

STANDARD AND JRB WITH AUXILIARY STEERING.

-1шт.

|$15

01435-01016

BOLT

SN: A52001-UP

1шт.

|$$16

STANDARD AND JRB WITHOUT AUXILIARY STEERING ALSO JOYSTICK STEERING.

-1шт.

12

01643-31032

WASHER

SN: A52001-UP

1шт.

13

COVER ASS'Y,(SEE FIG. K4200-24A0)

SN: A52001-UP

-1шт.

14

BOX,(SEE FIG. K4200-17A0)

SN: A52001-UP

-1шт.
