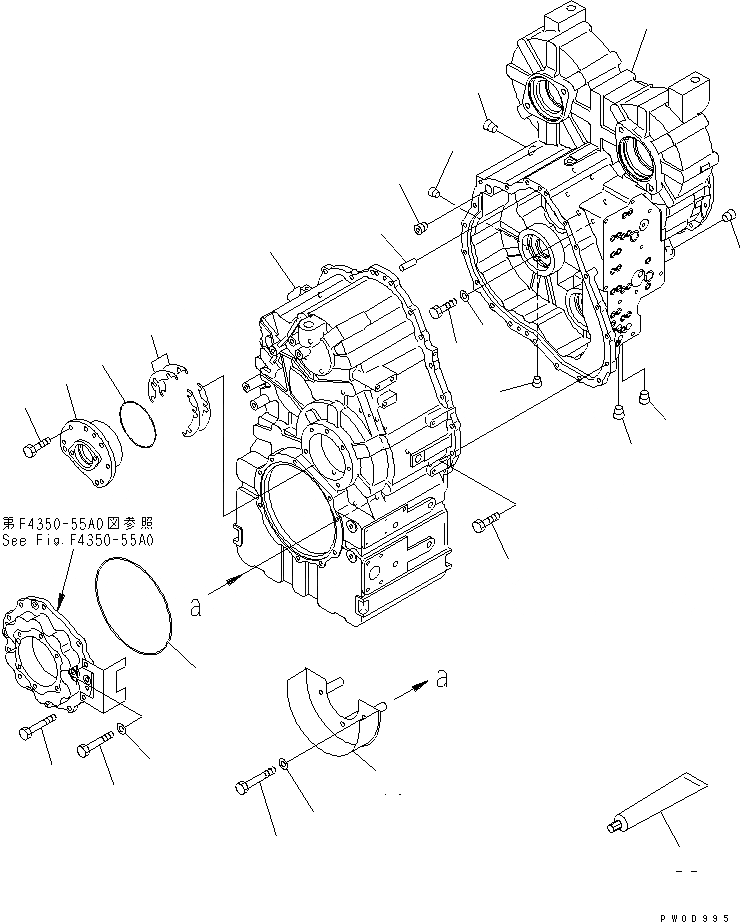

Запчасти Komatsu WA380-5 ТРАНСМИССИЯ (КОРПУС ТРАНСМИССИИ) СИЛОВАЯ ПЕРЕДАЧА

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$11

714-12-20004

TRANSMISSION ASS'Y

SN: 62274-UP

1шт.

|$12

714-12-20003

TRANSMISSION ASS'Y

SN: (10320)-00062273

1шт.

|$13

0

TRANSMISSION ASS'Y

SN: ((10320)-(111306))

1шт.

|$14

0

TRANSMISSION ASS'Y

SN: ((10320)-(111258))

1шт.

|$15

714-12-20000

TRANSMISSION ASS'Y

SN: 60001-(10319)

1шт.

|$16

714-12-20014

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: 62274-UP

1шт.

|$17

0

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: (10320)-00062273

1шт.

|$18

0

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: ((10320)-(111306))

1шт.

|$19

0

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: ((10320)-(111258))

1шт.

|$20

714-12-20010

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: 60001-(10319)

1шт.

|$21

714-12-20303

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: 62274-UP

1шт.

|$22

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: 60001-62273

1шт.

|$23

0

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: (60001-(111306))

1шт.

|$24

0

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: (60001-(111258))

1шт.

|$25

714-12-20313

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCK-UP)

SN: 62274-UP

1шт.

|$26

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCK-UP)

SN: 60001-62273

1шт.

|$27

0

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCK-UP)

SN: (60001-(111306))

1шт.

|$28

0

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCK-UP)

SN: (60001-(111258))

1шт.

|$$20

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0.

-1шт.

1

714-12-28112

CASE,FRONT

SN: 61142-UP

1шт.

1

714-12-28111

CASE,FRONT

SN: 60001-61141

1шт.

|$40

714-12-21122

CASE,REAR

SN: (10320)-UP

1шт.

|$41

714-12-21121

CASE,REAR

SN: 60001-(10319)

1шт.

2

0

CASE,REAR

SN: (10320)-UP

1шт.

2

0

CASE

SN: 60001-(10319)

1шт.

3

07043-70617

PLUG

SN: 60001-UP

4шт.

4

07043-70415

PLUG

SN: 60001-UP

1шт.

5

07043-70312

PLUG

SN: 60001-UP

1шт.

6

07043-70211

PLUG

SN: 60001-UP

1шт.

7

04020-01228

PIN,DOWEL

SN: 60001-UP

2шт.

8

01010-81240

BOLT

SN: 60001-UP

20шт.

9

01010-81270

BOLT

SN: 60001-UP

6шт.

10

01643-51232

WASHER

SN: 60001-UP

6шт.

11

07000-15285

O-RING (K1)

SN: 60001-UP

1шт.

12

01011-81205

BOLT

SN: 60001-UP

7шт.

13

01011-81210

BOLT

SN: 60001-UP

2шт.

14

01643-31232

WASHER

SN: 60001-UP

2шт.

15

714-12-28140

CAGE

SN: (111161)-UP

1шт.

15

0

CAGE

SN: 60001-(111160)

1шт.

16

714-07-00111

SHIM ASS'Y (K1)

SN: (111909)-UP

1шт.

16

714-07-00110

SHIM ASS'Y (K1)

SN: 60001-(111908)

1шт.

16

0

SHIM, 0.05MM

SN: 60001-UP

6шт.

16

0

SHIM, 0.5MM

SN: (111909)-UP

6шт.

16

0

SHIM, 0.5MM

SN: 60001-(111908)

4шт.

16

0

SHIM, 0.2MM

SN: 60001-UP

4шт.

17

07000-72135

O-RING (K1)

SN: (111161)-UP

1шт.

17

0

O-RING (K1)

SN: 60001-(111160)

1шт.

18

01010-81235

BOLT

SN: 60001-UP

6шт.

19

714-12-24910

COVER,GEAR

SN: 60001-UP

1шт.

20

01011-81200

BOLT

SN: 60001-UP

3шт.

21

01643-31232

WASHER

SN: 60001-UP

3шт.

22

419-15-18131

LIQUID GASKET (K1)

SN: 60001-(112186)

1шт.
