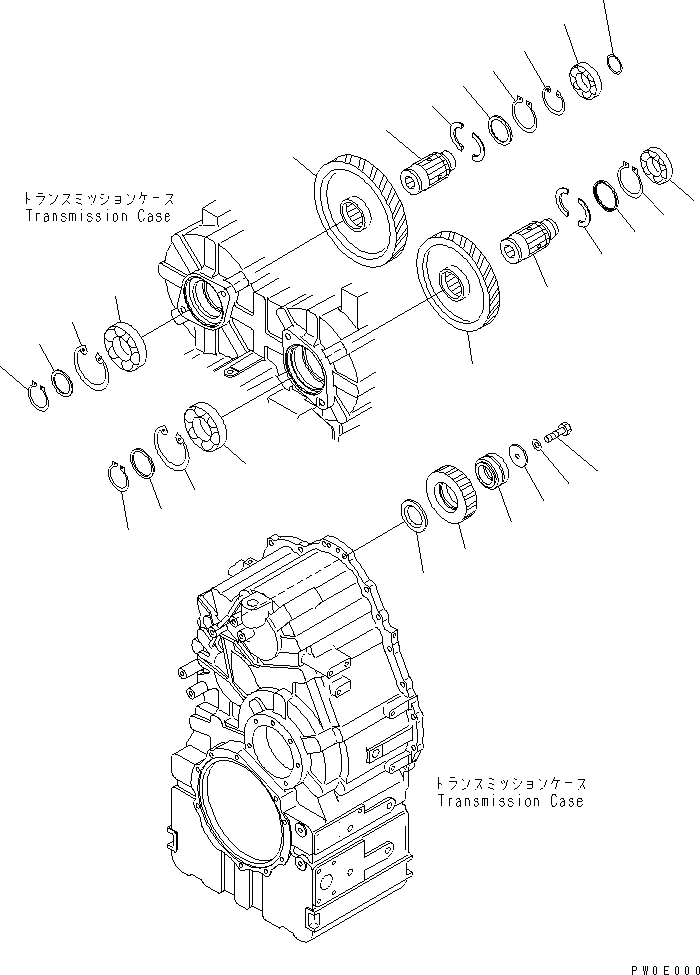

Запчасти Komatsu WA380-5 ТРАНСМИССИЯ (МЕХ-М ОТБОРА МОЩН-ТИ) СИЛОВАЯ ПЕРЕДАЧА

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$11

714-12-20004

TRANSMISSION ASS'Y

SN: 62274-UP

1шт.

|$12

714-12-20003

TRANSMISSION ASS'Y

SN: (10320)-00062273

1шт.

|$13

0

TRANSMISSION ASS'Y

SN: ((10320)-(111306))

1шт.

|$14

0

TRANSMISSION ASS'Y

SN: ((10320)-(111258))

1шт.

|$15

714-12-20000

TRANSMISSION ASS'Y

SN: 60001-(10319)

1шт.

|$16

714-12-20014

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: 62274-UP

1шт.

|$17

0

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: (10320)-00062273

1шт.

|$18

0

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: ((10320)-(111306))

1шт.

|$19

0

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: ((10320)-(111258))

1шт.

|$20

714-12-20010

TRANSMISSION ASS'Y,(WITH LOCK-UP)

SN: 60001-(10319)

1шт.

|$21

714-12-20303

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: 62274-UP

1шт.

|$22

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: 60001-62273

1шт.

|$23

0

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: (60001-(111306))

1шт.

|$24

0

TRANSMISSION ASS'Y,(COLD TERRAIN (A) SPEC.)

SN: (60001-(111258))

1шт.

|$25

714-12-20313

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCK-UP)

SN: 62274-UP

1шт.

|$26

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCK-UP)

SN: 60001-62273

1шт.

|$27

0

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCK-UP)

SN: (60001-(111306))

1шт.

|$28

0

TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCK-UP)

SN: (60001-(111258))

1шт.

|$$20

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0.

-1шт.

1

714-07-26612

GEAR, 28 TEETH,IDLE

SN: 60001-UP

1шт.

2

714-07-29330

BEARING

SN: 60001-UP

1шт.

3

362-15-13270

PLATE

SN: 60001-UP

1шт.

4

01010-81230

BOLT

SN: 60001-UP

1шт.

5

01643-31232

WASHER

SN: 60001-UP

1шт.

6

714-07-26621

COLLAR

SN: 60001-UP

1шт.

7

714-07-23222

SHAFT

SN: 60001-UP

1шт.

8

06033-00210

BEARING

SN: 60001-UP

1шт.

9

06040-06213

BEARING

SN: 60001-UP

1шт.

10

711-54-11660

SPACER

SN: 60001-UP

1шт.

11

04064-06525

RING

SN: 60001-UP

1шт.

12

714-12-23410

GEAR, 79 TEETH

SN: 60001-UP

1шт.

13

04064-07025

RING

SN: 60001-UP

1шт.

14

714-07-23710

RING

SN: 60001-UP

1шт.

15

714-07-14461

SPACER

SN: 60001-UP

2шт.

16

04065-01204

RING

SN: 60001-UP

1шт.

17

714-12-23231

SHAFT

SN: 60001-UP

1шт.

18

06032-00209

BEARING

SN: 60001-UP

1шт.

19

06040-06211

BEARING

SN: 60001-UP

1шт.

20

145-13-21730

SPACER

SN: 60001-UP

1шт.

21

04064-05520

RING

SN: 60001-UP

1шт.

22

04065-01030

RING

SN: 60001-UP

1шт.

23

714-12-23421

GEAR, 89 TEETH

SN: 60001-UP

1шт.

24

714-12-13710

RING

SN: 60001-UP

1шт.

25

714-12-13720

SPACER

SN: 60001-UP

2шт.

26

04064-06020

RING

SN: 60001-UP

1шт.

27

04065-08530

RING

SN: 60001-UP

1шт.

28

714-12-13770

RING,SNAP

SN: 60001-UP

1шт.
