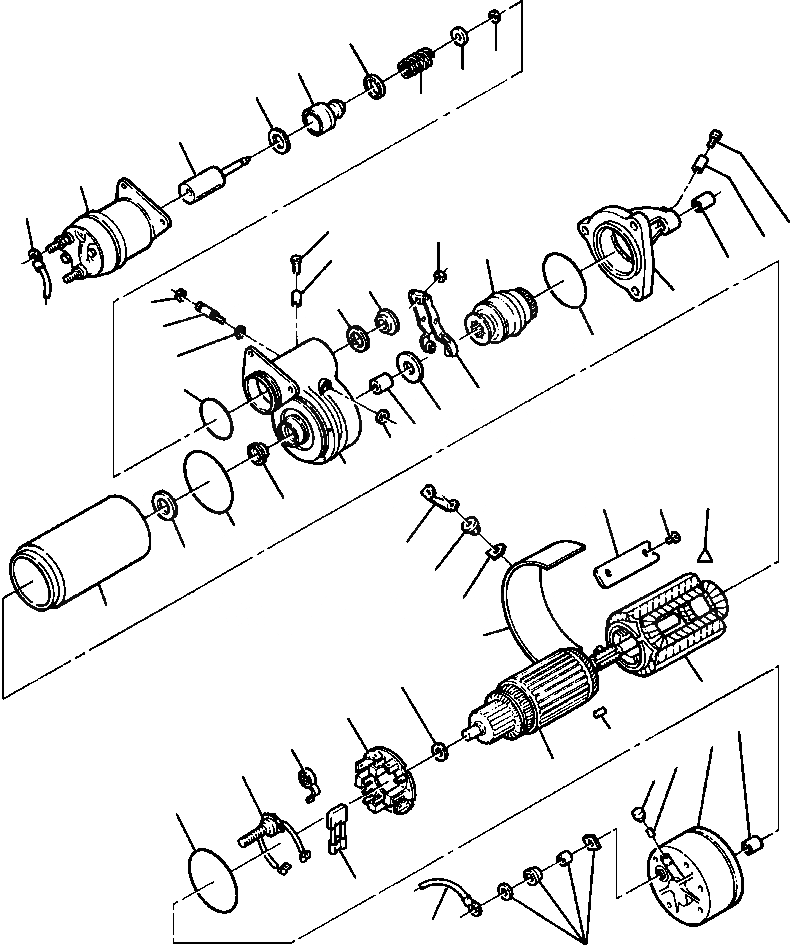

Запчасти Komatsu WA380-3MC FIG. B-BA СТАРТЕР КОМПОНЕНТЫ ДВИГАТЕЛЯ

|$0

1243 215 H92

MOTOR, STARTER

SN: A51001-UP-UP

1шт.

1

1277 066 H1

LEAD, C.E. TERMINAL TO SOLENOID SWITCH

SN: A51001-UP-UP

1шт.

|$2

NSS

NUT, SHUNT LEAD TO SWITCH

SN: A51001-UP-UP

1шт.

2

1284 359 H1

SWITCH

SN: A51001-UP-UP

1шт.

|$4

1283 448 H1

SCREW AND WASHER, SWITCH MOUNTING

SN: A51001-UP-UP

1шт.

3

1228 450 H1

PLUNGER

SN: A51001-UP-UP

1шт.

4

1210 070 H1

WASHER, RETAINER

SN: A51001-UP-UP

1шт.

5

1210 071 H1

BOOT, PLUNGER

SN: A51001-UP-UP

1шт.

6

1210 072 H1

RETAINER, PLUNGER SPRING

SN: A51001-UP-UP

1шт.

7

1210 073 H1

SPRING, PLUNGER

SN: A51001-UP-UP

1шт.

8

1210 074 H1

RETAINER, PLUNGER SPRING

SN: A51001-UP-UP

1шт.

|$11

1223 258 H91

HOUSING ASSEMBLY, LEVER

SN: A51001-UP-UP

1шт.

9

213 262 R1

RING, RETAINER

SN: A51001-UP-UP

1шт.

10

355 967 R1

O-RING

SN: A51001-UP-UP

1шт.

11

1211 152 H1

SHAFT, SHIFT LEVER

SN: A51001-UP-UP

1шт.

12

352 219 R1

O-RING

SN: A51001-UP-UP

1шт.

13

1211 285 H1

SEAL, OIL

SN: A51001-UP-UP

1шт.

14

NSS

HOUSING, LEVER

SN: A51001-UP-UP

1шт.

|$18

1245 107 H1

SCREW, LEVER HOUSING

SN: A51001-UP-UP

1шт.

15

NSS

HOUSING

SN: A51001-UP-UP

1шт.

16

NSS

WASHER, SPACER - D.E.

SN: A51001-UP-UP

1шт.

17

NSS

O-RING

SN: A51001-UP-UP

1шт.

18

NSS

O-RING

SN: A51001-UP-UP

1шт.

19

NSS

CUP, OIL RESERVOIR - LEVER HOUSING

SN: A51001-UP-UP

1шт.

20

NSS

WICK, OIL RESERVOIR - LEVER HOUSING

SN: A51001-UP-UP

1шт.

21

NSS

GASKET, INSPECTION PLUG

SN: A51001-UP-UP

1шт.

22

1210 066 H1

PLUG, INSPECTION

SN: A51001-UP-UP

1шт.

23

NSS

NUT, PLUNGER ROD GUIDE ADJUSTING

SN: A51001-UP-UP

1шт.

24

NSS

RING, SNAP - SHIFT LEVER SHAFT

SN: A51001-UP-UP

1шт.

25

NSS

BUSHING, LEVER HOUSING

SN: A51001-UP-UP

1шт.

26

NSS

WASHER, BRAKE

SN: A51001-UP-UP

1шт.

27

NSS

LEVER, SHIFT

SN: A51001-UP-UP

1шт.

28

1228 604 H1

DRIVE ASSEMBLY

SN: A51001-UP-UP

1шт.

|$33

1223 260 H91

HOUSING ASSEMBLY, D.E.

SN: A51001-UP-UP

1шт.

29

347 360 R1

O-RING

SN: A51001-UP-UP

1шт.

30

NSS

HOUSING, D.E.

SN: A51001-UP-UP

1шт.

|$36

1245 105 H1

SCREW, DRIVE HOUSING

SN: A51001-UP-UP

1шт.

31

1211 288 H1

BUSHING, DRIVE HOUSING

SN: A51001-UP-UP

1шт.

32

NSS

WICK, OIL RESERVOIR - D.E.

SN: A51001-UP-UP

1шт.

33

NSS

CUP, OIL RESERVOIR - D.E.

SN: A51001-UP-UP

1шт.

34

NSS

O-RING

SN: A51001-UP-UP

1шт.

35

1223 265 H1

TERMINAL AND LEAD ASSEMBLY

SN: A51001-UP-UP

1шт.

36

NSS

SPRING, BRUSH

SN: A51001-UP-UP

1шт.

37

NSS

BRUSH

SN: A51001-UP-UP

1шт.

|$44

NSS

SCREW, BRUSH AND FIELD COIL LEAD TO BRUSH HOLDER

SN: A51001-UP-UP

1шт.

38

1284 360 H91

PLATE ASSEMBLY, BRUSH

SN: A51001-UP-UP

1шт.

39

NSS

WASHER, THRUST

SN: A51001-UP-UP

1шт.

40

1228 452 H1

CONNECTOR

SN: A51001-UP-UP

1шт.

|$48

1211 267 H1

NUT, FIELD COIL CONNECTOR TO SWITCH

SN: A51001-UP-UP

1шт.

|$49

1283 448 H1

SCREW AND WASHER, CONNECTOR TO FIELD ATTACH

SN: A51001-UP-UP

1шт.

41

1210 062 H1

INSULATOR FIELD TERMINAL

SN: A51001-UP-UP

1шт.

42

1210 061 H1

INSULATOR FIELD TERMINAL

SN: A51001-UP-UP

1шт.

43

1228 453 H1

INSULATOR, FIELD COIL

SN: A51001-UP-UP

1шт.

44

1223 256 H1

ARMATURE

SN: A51001-UP-UP

1шт.

45

1228 454 H1

PIN, SPRING

SN: A51001-UP-UP

1шт.

46

1211 263 H1

SHOE, POLE

SN: A51001-UP-UP

1шт.

47

1245 108 H1

SCREW, POLE SHOE

SN: A51001-UP-UP

1шт.

48

1211 271 H1

INSULATOR, FIELD COIL

SN: A51001-UP-UP

1шт.

49

1228 605 H1

COIL ASSEMBLY

SN: A51001-UP-UP

1шт.

50

1223 269 H91

PACKAGE, SERVICE INSULATION - C.E. TERMINAL

SN: A51001-UP-UP

1шт.

51

NSS

CUP, OIL RESERVOIR - C.E.

SN: A51001-UP-UP

1шт.

52

NSS

WICK, OIL RESERVOIR - C.E.

SN: A51001-UP-UP

1шт.

53

1223 255 H1

HOUSING, C.E.

SN: A51001-UP-UP

1шт.

|$63

120 238

NUT, TERMINAL - C.E.

SN: A51001-UP-UP

1шт.

|$64

1211 267 H1

NUT AND WASHER, C.E. FRAME

SN: A51001-UP-UP

1шт.

|$65

120 239

WASHER, LOCK - TERMINAL STUD C.E.

SN: A51001-UP-UP

1шт.

|$66

120 396

WASHER, TERMINAL - C.E. FRAME

SN: A51001-UP-UP

1шт.

54

NSS

BUSHING, COVER

SN: A51001-UP-UP

1шт.

|$68

1305 530 H1

SHIELD, TERMINAL

SN: A51001-UP-UP

1шт.

|$69

1305 531 H1

NUT, HEX

SN: A51001-UP-UP

1шт.

|$88

-1шт.

|$70

1223 266 H91

KIT, SERVICE - BUSHINGS

SN: A51001-UP-UP

1шт.

|$71

1223 267 H91

KIT, SERVICE - SHIFT LEVER

SN: A51001-UP-UP

1шт.

|$72

1223 268 H91

KIT, SERVICE - 24 V BRUSH

SN: A51001-UP-UP

1шт.

|$73

-1шт.

|$74

F1 - INCLUDED IN SHIFT LEVER SERVICE KIT.

-1шт.

|$76

-1шт.

|$77

F2 - INCLUDED IN BUSHINGS SERVICE KIT.

-1шт.

|$79

-1шт.

|$80

F3 - INCLUDED IN 24 V BRUSH SERVICE KIT.

-1шт.

|$82

-1шт.

|$83

F4 - INCLUDED IN BUSHINGS AND SHIFT LEVER SERVICE KITS.

-1шт.

|$85

-1шт.

|$86

F5 - INCLUDED IN BUSHINGS AND 24 V BRUSH SERVICE KITS.

-1шт.

|$87

-1шт.
