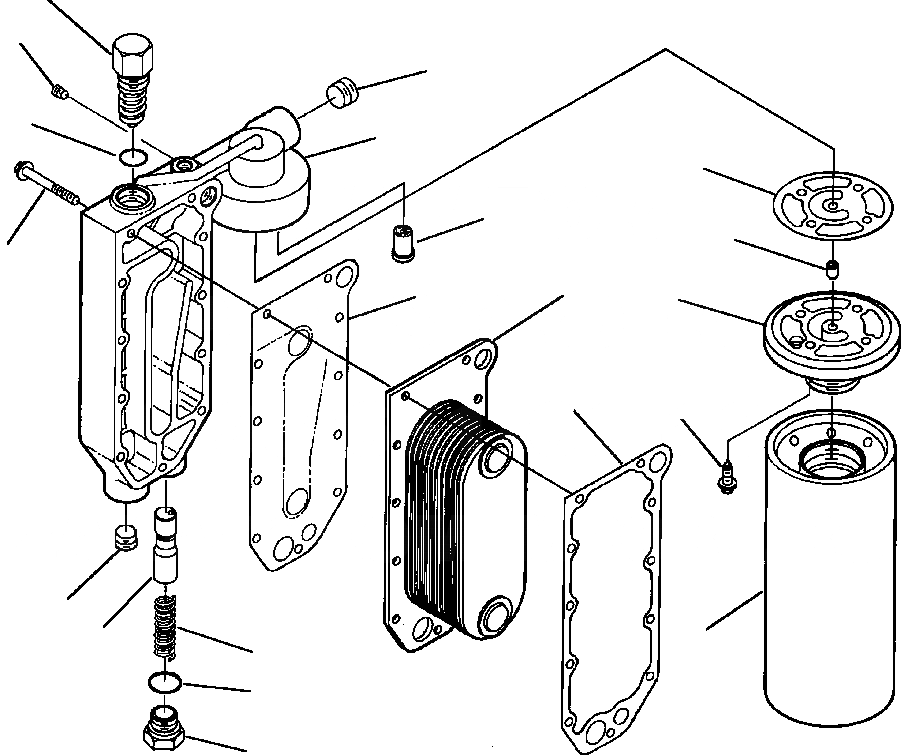

Запчасти Komatsu WA380-3L LUBE МАСЛООХЛАДИТЕЛЬ E-

1

1241 100 H1

SPRING, COMPRESSION

1шт.

2

1295 154 H1

O-RING

1шт.

3

1240 370 H1

PLUG, PIPE

2шт.

4

1239 160 H1

PLUG, PIPE (3/4 NPTF)

1шт.

5

1295 176 H1

PLUG, PIPE

1шт.

6

1295 152 H1

O-RING

1шт.

7

1295 155 H1

ELEMENT, LUBE OIL FILTER

1шт.

8

1295 146 H1

BOLT (M8x1.25x65)

11шт.

9

1241 216 H2

GASKET, OIL COOLER CORE

1шт.

10

1241 004 H2

CORE, LUBE OIL COOLER

1шт.

11

1295 147 H1

GASKET, LUBE OIL COOLER COVER

1шт.

12

1294 829 H1

PLUNGER, PRESSURE REGULATOR

1шт.

|$12

1295 177 H2

COVER ASSEMBLY, LUBE OIL COOLER

1шт.

13

1238 209 H1

DOWEL, PIN

1шт.

14

1295 148 H2

GASKET, FILTER HEAD

1шт.

15

1240 194 H2

VALVE, BYPASS

1шт.

16

1240 818 H1

BOLT (M8x1.25x25)

4шт.

17

1295 149 H1

HEAD, LUBE OIL FILTER

1шт.

18

1295 150 H2

COVER, LUBE OIL COOLER

1шт.

19

1295 151 H92

THERMOSTAT

1шт.

20

1295 153 H91

PLUG, THREADED

1шт.
