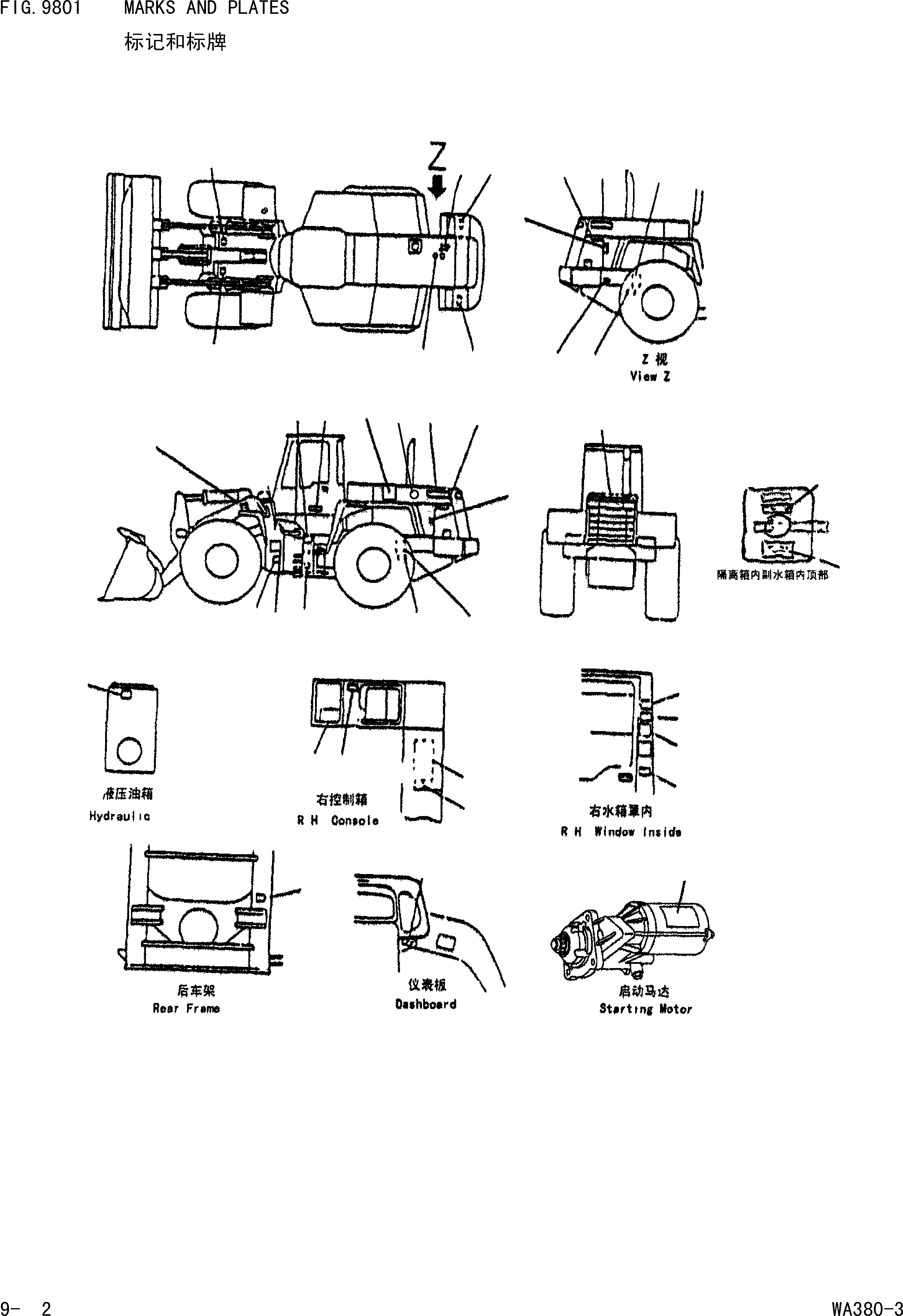

Запчасти Komatsu WA380-3 МАРКИРОВКА 9[МАРКИРОВКА,ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ]

|$0

426-93-21570

PLATE KIT

Field_1: 16001-

1шт.

1

0

PLATE.SAFETY.RADIATOR CAP

Field_1: 16001-

1шт.

2

0

PLATE.SAFETY.BATTERY CABLE

Field_1: 16001-

2шт.

3

0

PLATE.INSTRUCTION.ENGINE OIL DRAIN

Field_1: 16001-

1шт.

4

0

PLATE.SAFETY.SAFETY BAR

Field_1: 16001-

1шт.

5

0

PLATE.SAFETY.KEEP OUT

Field_1: 16001-

2шт.

6

0

PLATE.INSTRUCTION.FUEL

Field_1: 16001-

1шт.

7

0

PLATE.INSTRUCTION.RADIATOR DRAIN

Field_1: 16001-

1шт.

8

0

PLATE.SAFETY.HYDRAULIC TANK CAP

Field_1: 16001-

1шт.

9

0

PLATE.INSTRUCTION.REAR AXLE PIVOT PIN

Field_1: 16001-

1шт.

|$10

426-V04-2220

PLATE KIT

Field_1: 16001-

1шт.

10

0

PLATE.OPERATING.WORK EQUIPMENT LEVER

Field_1: 16001-

1шт.

11

0

PLATE.OPERATING.WORK EQUIPMENT LEVER

Field_1: 16001-

1шт.

12

0

PLATE.NAME.RELAY

Field_1: 16001-

1шт.

13

0

PLATE.NAME.FUSE

Field_1: 16001-

1шт.

14

0

PLATE.SAFETY.EQUIPMENT LEVER

Field_1: 16001-

1шт.

15

0

PLATE.SAFETY.INSPECTION

Field_1: 16001-

1шт.

16

0

PLATE.SAFETY.BEFORE OPERATING

Field_1: 16001-

1шт.

17

0

PLATE.OPERATING.STARTING SWITCH

Field_1: 16001-

1шт.

20

0

PLATE.NAME.RELAY

Field_1: 16001-

1шт.

23

423-V04-D140

CHART.OIL

Field_1: 16001-

1шт.

24

09690-P0630

PLATE.MARK.KOMATSU

Field_1: 16001-

2шт.

25

423-93-D1780

PLATE.MARK.AVANCE LOADER

Field_1: 16001-

2шт.

26

423-93-D1740

PLATE.MARK.WA380(LH)

Field_1: 16001-

2шт.

27

09690-C0500

PLATE.MARK.KOMATSU

Field_1: 16001-

1шт.

28

09806-C0883

PLATE.WARNING

Field_1: 16001-

2шт.

30

09807-C0883

PLATE.SAFETY

Field_1: 16001-

2шт.

31

09960-01601

PLATE.MARK.HANDLING

Field_1: 16001-

4шт.

32

09842-A0481

PLATE.STARTING MOTOR

Field_1: 16001-

1шт.

33

423-84-Z8886

PLATE.NAME

Field_1: 16001-

1шт.

34

423-02-Z9150

PLATE.AIR CLEANER CHANGE

Field_1: 16001-

-1шт.

35

423-93-D1750

PLATE MARK WA380(RH)

Field_1: 16001-

1шт.

36

207-00-D1110

PLATE

Field_1: 16001-

2шт.

37

423-V04-Z810

PLATE

Field_1: 16001-

1шт.

38

423-93-D1790

PLATE MARK TIER2

Field_1: 16001-

1шт.
