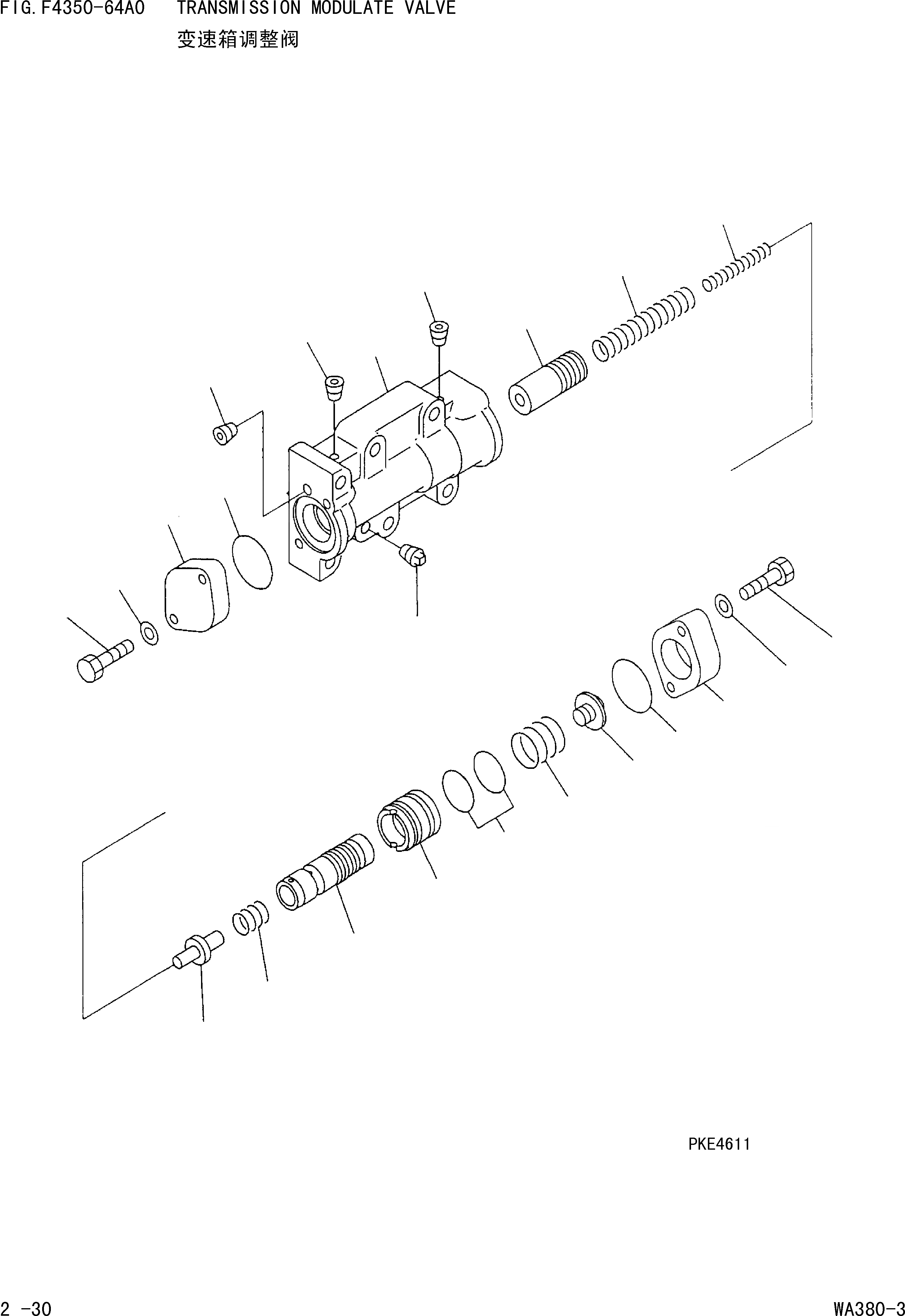

Запчасти Komatsu WA380-3 ТРАНСМИССИЯ MODULATE КЛАПАН [ТРАНСМИССИЯ]

|$0

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$1

714-12-10011

TRANSMISSION ASS'Y THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-71A0 SHOWN IN FIGS.F4350-51A0 TO F4350-71A0

Field_1: 16001-

1шт.

|$2

714-16-17703

VALVE ASS'Y,MODULATE

Field_1: 16001-

1шт.

|$3

714-07-17722

VALVE ASS'Y,MODULATE

Field_1: 16001-

1шт.

1

714-07-17712

BODY,MODULATE

Field_1: 16001-

1шт.

2

02720-10104

PLUG

Field_1: 16001-

3шт.

3

714-07-17534

VALVE

Field_1: 16001-

1шт.

4

714-07-17741

VALVE

Field_1: 16001-

1шт.

5

714-07-17770

SLEEVE

Field_1: 16001-

1шт.

6

714-07-17780

PLUG

Field_1: 16001-

1шт.

7

07000-03032

O-RING

Field_1: 16001-

2шт.

8

714-12-17830

SPRING

Field_1: 16001-

1шт.

9

714-07-17841

SPRING,OUTER

Field_1: 16001-

1шт.

10

714-07-17851

SPRING,INNER

Field_1: 16001-

1шт.

11

714-07-17861

SPRING

Field_1: 16001-

1шт.

12

714-07-17883

STOPPER

Field_1: 16001-

1шт.

13

07042-30108

PLUG

Field_1: 16001-

1шт.

14

714-07-17751

COVER

Field_1: 16001-

1шт.

15

714-07-17761

COVER

Field_1: 16001-

1шт.

16

07000-03042

O-RING

Field_1: 16001-

2шт.

17

01010-80835

BOLT

Field_1: 16001-

2шт.

18

01010-80835

BOLT

Field_1: 16001-

2шт.

19

01643-30823

WASHER

Field_1: 16001-

4шт.
