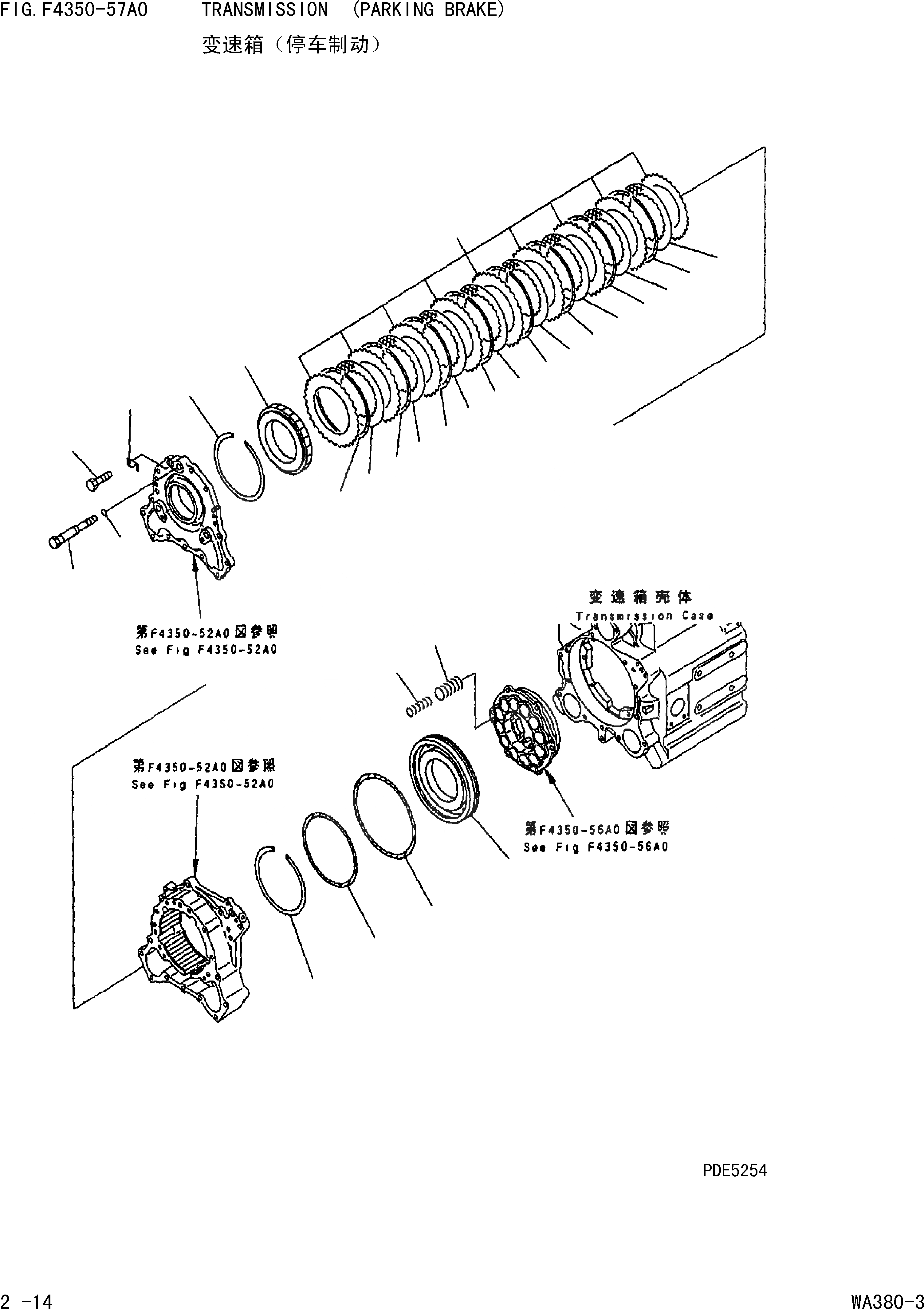

Запчасти Komatsu WA380-3 ТРАНСМИССИЯ(СТОЯНОЧНЫЙ ТОРМОЗ) [ТРАНСМИССИЯ]

|$0

714-12-10011

TRANSMISSION ASS'Y THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-71A0

Field_1: 16001-

1шт.

1

714-12-17131

PISTON,PARKING BRAKE

Field_1: 16001-

1шт.

2

714-12-17180

RING,SEAL

Field_1: 16001-

1шт.

3

714-12-17170

RING,SEAL

Field_1: 16001-

1шт.

4

714-07-12670

DISC

Field_1: 16001-

8шт.

5

714-12-19730

PLATE,SEPARATE

Field_1: 16001-

9шт.

6

714-07-12691

SPRING,WAVE

Field_1: 16001-

8шт.

7

714-07-12720

RING,SNAP

Field_1: 16001-

2шт.

8

714-12-17191

SCREW

Field_1: 16001-

3шт.

9

419-15-16670

PLATE,LOCK

Field_1: 16001-

3шт.

10

07000-12012

O-RING

Field_1: 16001-

3шт.

11

01024-81050

BOLT

Field_1: 16001-

3шт.

13

714-12-17250

PLATE ,END

Field_1: 16001-

1шт.

14

714-12-17161

SPRING,OUTER

Field_1: 16001-

12шт.

15

714-12-17151

SPRING,INNER

Field_1: 16001-

12шт.
