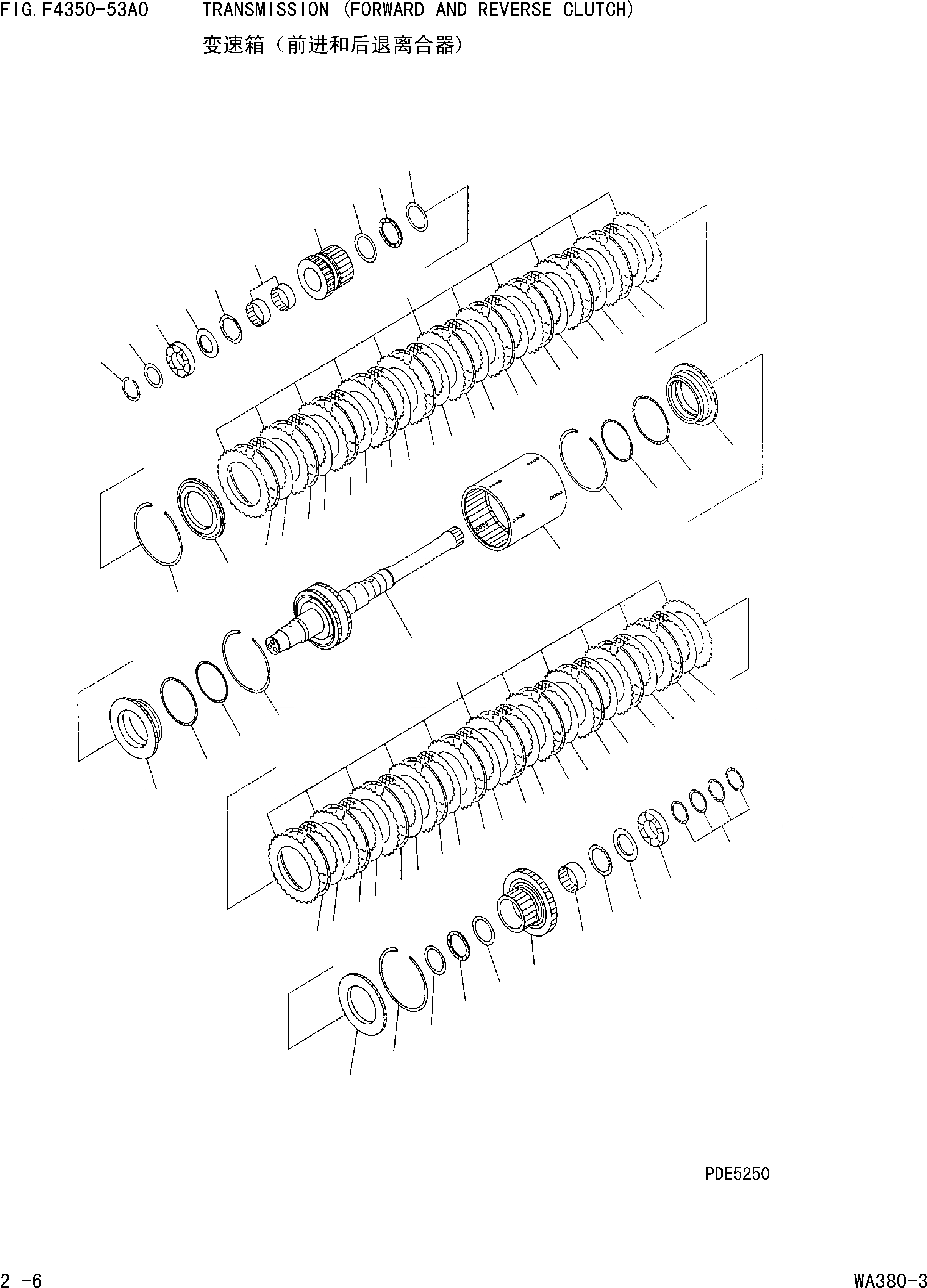

Запчасти Komatsu WA380-3 ТРАНСМИССИЯ(МУФТА ВПЕРЕД/РЕВЕРС) [ТРАНСМИССИЯ]

|$0

SERIAL NO. IN ( ) INDICATES TRANSMISSION

-1шт.

|$1

714-12-10011

TRANSMISSION ASS'Y THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-71A0

Field_1: 16001-

1шт.

|$2

714-12-12040

CLUTCH ASS'Y,FORWARD AND REVERSE

Field_1: 16001-

1шт.

1

714-12-12141

SHAFT ASS'Y

Field_1: 16001-

1шт.

2

714-12-12360

HOUSING

Field_1: 16001-

1шт.

3

714-12-12650

PISTON,FORWARD AND REVERSE

Field_1: 16001-

2шт.

4

714-12-19711

DISC

Field_1: 16001-

20шт.

5

714-16-19730

PLATE,SEPARATE

Field_1: 16001-

22шт.

6

56D-15-12710

SPRING,WAVE

Field_1: 16001-

20шт.

7

714-12-12610

PLATE ,END

Field_1: 16001-

2шт.

8

419-15-12140

RING,SNAP

Field_1: 16001-

4шт.

9

714-11-19230

RING,SEAL

Field_1: 16001-

2шт.

10

714-16-19210

RING,SEAL

Field_1: 16001-

2шт.

11

714-08-19560

WASHER,THRUST

Field_1: 16001-

1шт.

12

714-11-19510

WASHER,THRUST

Field_1: 16001-

1шт.

13

419-15-12640

BEARING,THRUST

Field_1: 16001-

2шт.

14

714-23-19420

BEARING,NEEDLE

Field_1: 16001-

1шт.

15

419-15-12271

BEARING,NEEDLE

Field_1: 16001-

2шт.

16

714-12-12740

SPACER

Field_1: 16001-

1шт.

17

714-12-12710

SPACER

Field_1: 16001-

1шт.

18

714-12-19330

BEARING,BALL

Field_1: 16001-

1шт.

19

06033-02210

BEARING

Field_1: 16001-

1шт.

20

714-12-12420

GEAR,38 TEETH,FORWARD

Field_1: 16001-

1шт.

21

714-12-12410

GEAR,23 TEETH,REVERSE

Field_1: 16001-

1шт.

22

714-12-12760

WASHER

Field_1: 16001-

2шт.

23

419-15-12650

WASHER,THRUST

Field_1: 16001-

2шт.

24

714-12-12930

SPACER

Field_1: 16001-

1шт.

25

04066-00050

RING,SNAP

Field_1: 16001-

1шт.

26

714-07-12290

RING,SEAL

Field_1: 16001-

4шт.
