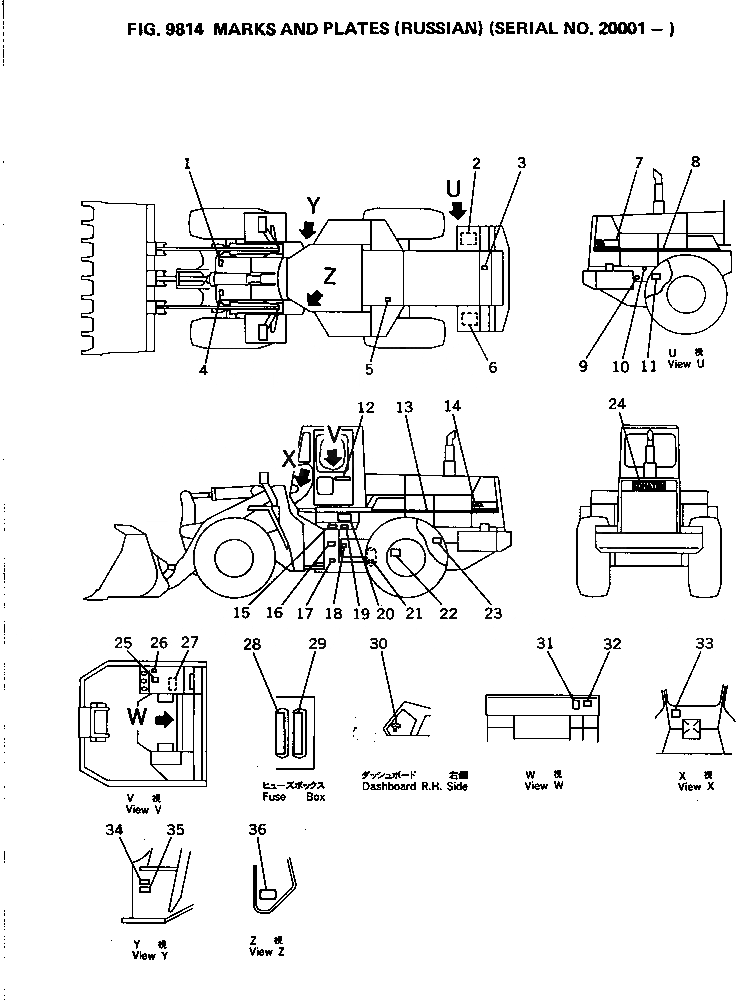

Запчасти Komatsu WA380-1 МАРКИРОВКА (РОССИЯ)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

2

418-V06-1190

PLATE, CAUTION,BATTERY

SN: 20001-UP

1шт.

3

09668-04000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

4

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

5

09653-04000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

6

418-V06-1190

PLATE, CAUTION,BATTERY

SN: 20001-UP

1шт.

7

423-93-11760

PLATE, MARK,WA380

SN: 10001-UP

1шт.

8

423-93-11142

PLATE, STRIPE

SN: 20001-UP

1шт.

9

09101-04000

PLATE, CAUTION,FUEL

SN: 20001-UP

1шт.

10

418-V06-1140

PLATE, CAUTION,FAN

SN: 10001-UP

1шт.

11

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

12

09690-C0224

PLATE, MARK,KOMATSU

SN: 10001-UP

2шт.

13

423-93-11142

PLATE, STRIPE

SN: 20001-UP

1шт.

14

423-93-11760

PLATE, MARK,WA380

SN: 10001-UP

1шт.

15

09152-04000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 10001-UP

1шт.

16

418-V06-1160

PLATE, CAUTION,KEEP OUT

SN: 20001-UP

1шт.

17

418-V06-1130

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

18

427-V06-1130

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 20001-UP

1шт.

19

09152-04000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 20001-UP

1шт.

20

423-V06-1210

CHART, OIL

SN: 20001-UP

1шт.

21

09152-04000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 20001-UP

1шт.

22

427-W90-1320

PLATE, OPERATING,AIR DRYER

SN: 20001-UP

1шт.

23

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 20001-UP

1шт.

24

09690-C0400

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

25

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 10001-UP

1шт.

26

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 20001-UP

1шт.

27

424-V06-1150

PLATE, OPERATING,RELAY

SN: 20001-UP

1шт.

28

424-V06-1130

PLATE, OPERATING,FUSE

SN: 20001-UP

1шт.

29

424-V06-1140

PLATE, OPERATING,FUSE

SN: 20001-UP

1шт.

30

09683-40070

PLATE, OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

31

418-V06-1150

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

32

416-V06-1120

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

33

418-V06-1170

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 20001-UP

1шт.

34

09601-40835

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

34

04418-13060

SCREW

SN: 10001-UP

4шт.

35

418-V06-1160

PLATE, CAUTION,KEEP OUT

SN: 20001-UP

1шт.

36

424-V06-1120

PLATE, OPERATING,MONITOR PANEL

SN: 20001-UP

1шт.
