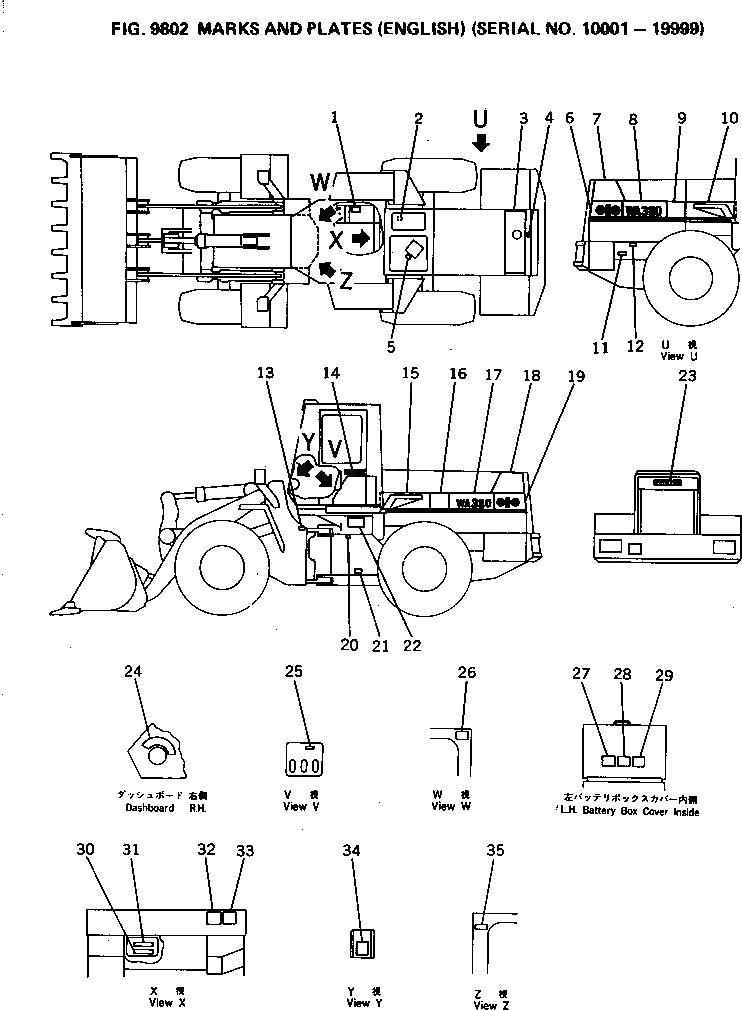

Запчасти Komatsu WA380-1 МАРКИРОВКА (АНГЛ.)(№-9999) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

421-93-11132

PLATE, OPERATING,LOADER CONTROL

SN: 10001-@

1шт.

2

421-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-19999

1шт.

3

424-93-11160

STRIPE

SN: 10001-19999

1шт.

4

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-@

1шт.

5

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-@

1шт.

6

424-93-11270

PLATE, MARK,SYMBOL

SN: 10001-19999

1шт.

7

424-93-11150

STRIPE,R.H.

SN: 10001-19999

1шт.

8

423-93-11710

PLATE, MARK,WA380

SN: 10001-@

1шт.

9

423-93-11140

PLATE, STRIPE

SN: 10001-19999

1шт.

10

424-93-11220

PLATE, STRIPE

SN: 10001-19999

1шт.

11

362-54-27290

PLATE, CAUTION,FUEL

SN: 10001-19999

1шт.

12

362-54-27390

PLATE, CAUTION,FAN BELT

SN: 10001-@

1шт.

13

09162-00000

PLATE, CAUTION,KEEP OUT

SN: 10001-19999

2шт.

14

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

2шт.

15

424-93-11220

PLATE, STRIPE

SN: 10001-19999

1шт.

16

423-93-11140

PLATE, STRIPE

SN: 10001-19999

1шт.

17

423-93-11710

PLATE, MARK,WA380

SN: 10001-@

1шт.

18

424-93-11140

STRIPE,L.H.

SN: 10001-19999

1шт.

19

424-93-11260

PLATE, MARK,SYMBOL

SN: 10001-19999

1шт.

20

419-93-11340

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-19999

1шт.

21

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: 10001-@

1шт.

22

423-93-11810

CHART, OIL

SN: 10001-19999

1шт.

23

09690-50400

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

24

09683-30070

PLATE, OPERATING,MAIN SWITCH

SN: 10001-@

1шт.

25

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 10001-19999

1шт.

26

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-@

1шт.

26

04418-13060

SCREW

SN: 10001-@

4шт.

27

419-93-11350

PLATE, CAUTION,BOOSTER SETTING

SN: 10001-19999

1шт.

28

419-93-11360

PLATE, CAUTION,BATTERY CHARGING

SN: 10001-19999

1шт.

29

419-93-11410

PLATE, CAUTION,BATTERY

SN: 10001-19999

1шт.

30

424-93-11430

PLATE, OPERATING,FUSE

SN: 10001-19999

1шт.

31

424-93-11420

PLATE, OPERATING,FUSE

SN: 10001-19999

1шт.

32

419-93-11320

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-@

1шт.

33

362-98-12150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 10001-@

1шт.

34

419-93-11330

PLATE, CAUTION,TRANSMISSION OIL TEMPARETURE

SN: 10001-19999

1шт.

35

09152-03000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-@

1шт.
