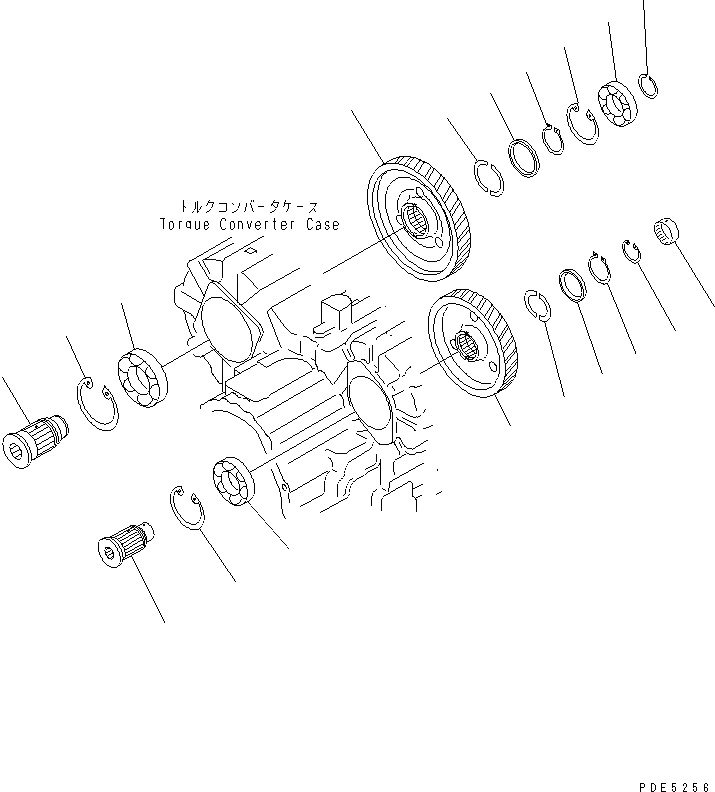

Запчасти Komatsu WA350-3A-SN ТРАНСМИССИЯ (МЕХ-М ОТБОРА МОЩН-ТИ) ТРАНСМИССИЯ

|1

714-12-10011

TORQFLOW ASS'Y

SN: 54001-UP

1шт.

|1

714-12-10010

TORQFLOW ASS'Y

SN: 53001-54000

1шт.

|1

714-12-10041

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 54001-UP

1шт.

|1

714-12-10050

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 53001-54000

1шт.

|1

714-12-10020

TRANSMISSION ASS'Y,(FOR SNOW REMOVING)

SN: 54001-UP

1шт.

|1

714-12-10032

TRANSMISSION ASS'Y,(FOR SNOW REMOVING)

SN: 53001-54000

1шт.

|$$7

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

1

714-12-13410

GEAR¤ 77 TEETH

SN: 53001-UP

1шт.

2

714-11-13220

SHAFT

SN: 53001-UP

1шт.

3

06040-06210

BEARING

SN: 53001-UP

1шт.

4

714-11-19350

BEARING,NEEDLE

SN: 53001-UP

1шт.

5

714-11-13720

SPACER

SN: 53001-UP

2шт.

6

714-11-13710

RING

SN: 53001-UP

1шт.

7

04065-09030

RING,SNAP

SN: 53001-UP

1шт.

8

04064-05020

RING,SNAP

SN: 53001-UP

1шт.

9

04065-04718

RING,SNAP

SN: 53001-UP

1шт.

10

714-12-13420

GEAR¤ 90 TEETH

SN: 53001-UP

1шт.

11

714-12-13220

SHAFT

SN: 53001-UP

1шт.

12

06040-06212

BEARING

SN: 53001-UP

1шт.

13

06032-00209

BEARING

SN: 53001-UP

1шт.

14

714-12-13720

SPACER

SN: 53001-UP

2шт.

15

714-12-13710

RING

SN: 53001-UP

1шт.

16

04065-01104

RING,SNAP

SN: 53001-UP

1шт.

17

04064-06020

RING,SNAP

SN: 53001-UP

1шт.

18

04065-08530

RING,SNAP

SN: 53001-UP

1шт.

19

714-12-13770

RING,SNAP

SN: 53001-UP

1шт.
