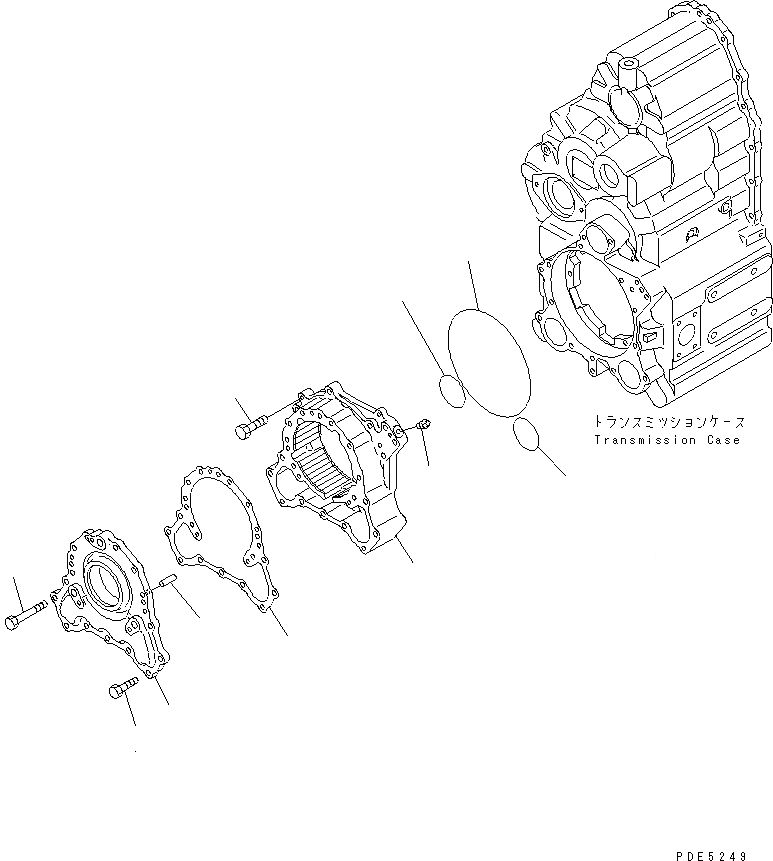

Запчасти Komatsu WA350-3A-SN ТРАНСМИССИЯ (КОРПУС ТРАНСМИССИИ) (/) ТРАНСМИССИЯ

|1

714-12-10011

TORQFLOW ASS'Y

SN: 54001-UP

1шт.

|1

714-12-10010

TORQFLOW ASS'Y

SN: 53001-54000

1шт.

|1

714-12-10041

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 54001-UP

1шт.

|1

714-12-10050

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 53001-54000

1шт.

|1

714-12-10020

TRANSMISSION ASS'Y,(FOR SNOW REMOVING)

SN: 54001-UP

1шт.

|1

714-12-10032

TRANSMISSION ASS'Y,(FOR SNOW REMOVING)

SN: 53001-54000

1шт.

|$$7

THESE ASSEMBLY CONSIST OF SOME FIGS. BE CAREFUL WHEN ORDERING THE PARTS.

-1шт.

1

714-12-17111

HOUSING

SN: 53001-UP

1шт.

2

714-12-17141

COVER,PARKING BRAKE

SN: 53001-UP

1шт.

3

714-12-17211

GASKET (K1)

SN: 53001-UP

1шт.

4

07000-05260

O-RING (K1)

SN: 53001-UP

1шт.

5

01010-81245

BOLT

SN: 53001-UP

7шт.

6

01011-81220

BOLT

SN: 53001-UP

7шт.

7

01010-81235

BOLT

SN: 53001-UP

8шт.

8

04020-01228

PIN,DOWEL

SN: 53001-UP

2шт.

9

07000-02080

O-RING (K1)

SN: 53001-UP

2шт.

10

07042-80108

PLUG

SN: 53001-UP

1шт.
