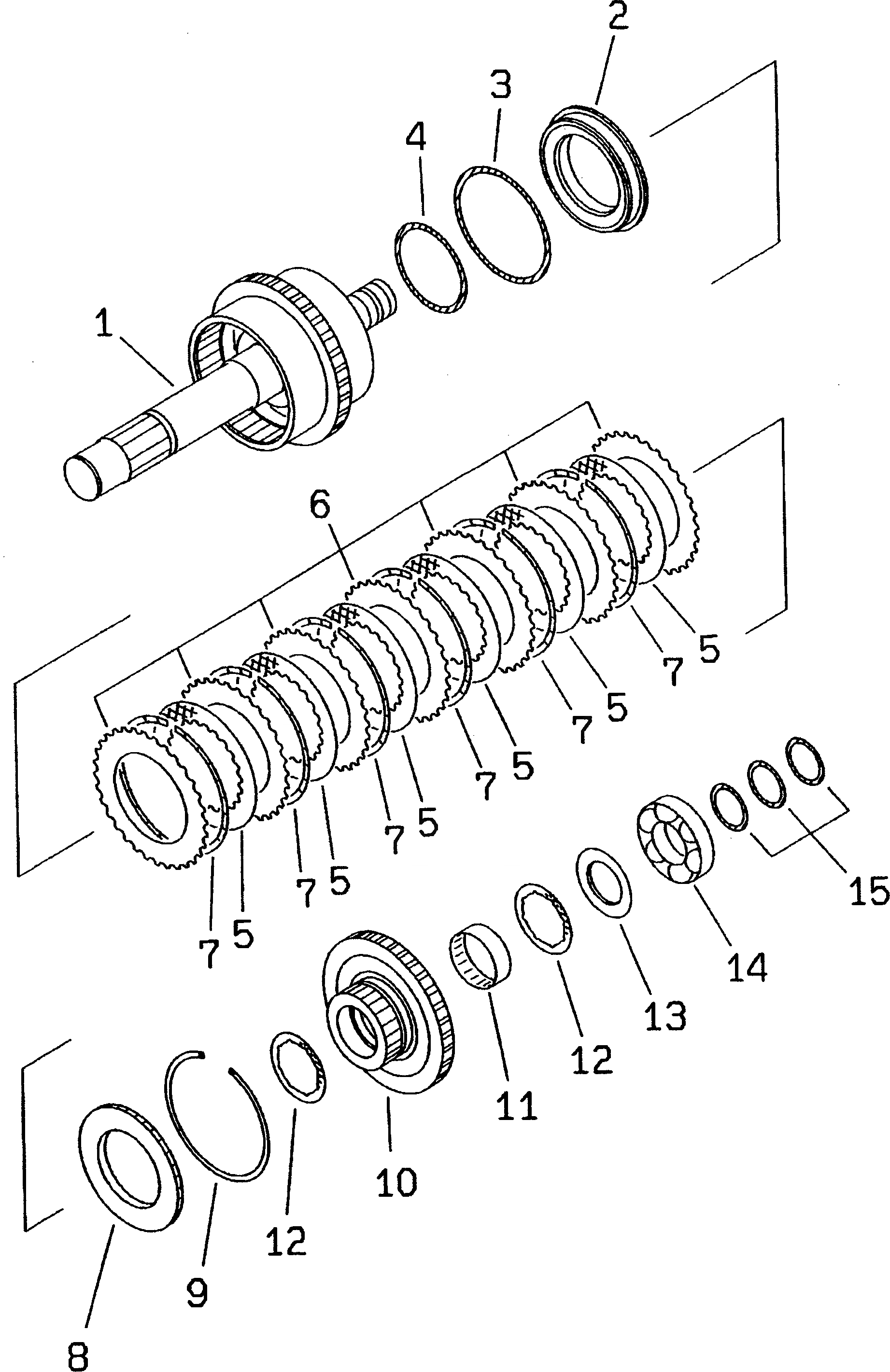

Запчасти Komatsu WA350-3A-S ТРАНСМИССИЯ (3 МУФТА)(№-) ТРАНСМИССИЯ

|1

714-12-10010

TORQFLOW ASS'Y

SN: 50001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271.

-1шт.

|1

714-12-12020

CLUTCH ASS'Y,1ST AND 3RD

SN: 50001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2223 AND 2224.

-1шт.

1

714-12-12120

SHAFT ASS'Y

SN: 50001-UP

1шт.

2

714-12-12660

PISTON,3RD

SN: 50001-UP

1шт.

3

714-16-19220

RING,SEAL

SN: 50001-UP

1шт.

4

714-16-19210

RING,SEAL

SN: 50001-UP

1шт.

5

714-12-19710

DISC

SN: 50001-UP

6шт.

6

714-16-19730

PLATE,SEPARATE

SN: 50001-UP

7шт.

7

419-15-12133

SPRING,WAVE

SN: 50001-UP

6шт.

8

714-12-12610

PLATE,END

SN: 50001-UP

1шт.

9

419-15-12140

RING,SNAP

SN: 50001-UP

1шт.

10

714-12-12440

GEAR¤ 49 TEETH,3RD

SN: 50001-UP

1шт.

11

419-15-13150

BEARING,NEEDLE

SN: 50001-UP

1шт.

12

714-08-19570

WASHER,THRUST

SN: 50001-UP

2шт.

13

714-11-12720

SPACER

SN: 50001-UP

1шт.

14

06040-06212

BEARING

SN: 50001-UP

1шт.

15

419-15-12122

RING,SEAL

SN: 50001-UP

3шт.
