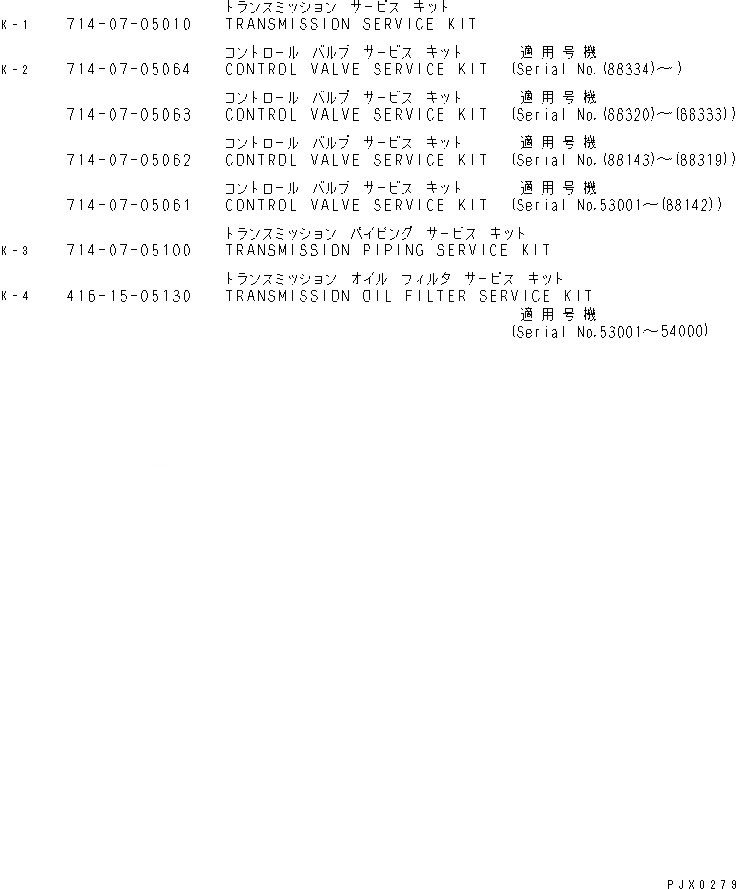

|$$1
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
-1шт.
1
714-12-05011
SERVICE KIT,TRANSMISSION
SN: 53001-UP
1шт.
|1
07000-02012
O-RING,(F4350-57A0 -10 )
SN: 53001-UP
3шт.
|1
07000-02065
O-RING,(F4350-69A0 -14 )
SN: 53001-UP
1шт.
|1
07000-02065
O-RING,(F4350-69A0 -14 )
SN: 53001-UP
1шт.
|1
07000-02080
O-RING,(F4350-52A0 -9 )
SN: 53001-UP
2шт.
|1
07000-02105
O-RING,(F4350-58A0 -5 )
SN: 53001-UP
1шт.
|1
07000-05055
O-RING,(F4350-56A0 -12 )
SN: 53001-UP
1шт.
|1
07000-05260
O-RING,(F4350-52A0 -4 )
SN: 53001-UP
1шт.
|1
07002-01423
O-RING,(F4350-69A0 -2 )
SN: 53001-UP
1шт.
|1
07002-02034
O-RING,(F4350-51A0 -4 )
SN: 53001-UP
1шт.
|1
07002-02434
O-RING,(F4350-69A0 -9 )
SN: 53001-UP
1шт.
|1
07005-01012
GASKET,(F4350-67A0 -35 )
SN: 53001-UP
6шт.
|1
419-15-18131
LIQUID GASKET,(F4350-51A0 -21 )
SN: 53001-UP
1шт.
|1
424-13-11110
O-RING,(F4300-02A0 -3 )
SN: 53001-UP
1шт.
|1
714-12-17211
GASKET,(F4350-52A0 -3 )
SN: 53001-UP
1шт.
|1
714-12-19120
SEAL,(F4350-56A0 -13 )
SN: 53001-UP
1шт.
|1
714-12-19120
SEAL,(F4350-56A0 -13 )
SN: 53001-UP
1шт.
|1
714-12-19170
SEAL,(F4350-56A0 -15 )
SN: 53001-UP
1шт.
|1
714-12-19170
SEAL,(F4350-56A0 -15 )
SN: 53001-UP
1шт.
2
714-12-05064
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: (88334)-UP
1шт.
|2
0
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: (88320)-(88333)
1шт.
|2
0
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: (88143)-(88319)
1шт.
|2
714-12-05061
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: 53001-(88142)
1шт.
|2
07000-02010
O-RING,(F4350-61A0A-14 )
SN: 53001-UP
1шт.
|2
07000-02014
O-RING,(F4350-63A0 -17 )
SN: 53001-UP
2шт.
|2
07000-02014
O-RING,(F4350-63A0 -17 )
SN: 53001-UP
1шт.
|2
07000-03032
O-RING,(F4350-64A0 -7 )
SN: 53001-UP
2шт.
|2
07000-03038
O-RING,(F4350-65A0 -12 )
SN: 53001-UP
3шт.
|2
07000-03042
O-RING,(F4350-64A0 -16 )
SN: 53001-UP
2шт.
|2
07000-72014
O-RING,(F4350-60A0 -21 )
SN: 53001-UP
2шт.
|2
07000-73025
O-RING,(F4350-60A0 -20 )
SN: 53001-UP
2шт.
|2
07002-01823
O-RING,(F4350-61A0A-33 )
SN: 53001-UP
1шт.
|2
421-06-16510
O-RING,(F4350-63A0 -5 )
SN: 53001-UP
1шт.
|2
421-06-16520
O-RING,(F4350-63A0 -6 )
SN: 53001-UP
1шт.
|2
714-07-16921
GASKET,(F4350-60A0 -9 )
SN: (88334)-UP
1шт.
|2
0
GASKET,(F4350-60A0 -9- )
SN: 53001-(88333)
1шт.
|2
714-07-16950
GASKET,(F4350-62A0 -17 )
SN: 53001-UP
1шт.
|2
714-07-16960
GASKET,(F4350-62A0 -18 )
SN: 53001-UP
1шт.
|2
714-07-17791
GASKET,(F4350-60A0 -11 )
SN: (88334)-UP
1шт.
|2
0
GASKET,(F4350-60A0 -11- )
SN: 53001-(88333)
1шт.
|2
714-07-17912
GASKET,(F4350-63A0 -21 )
SN: (88320)-UP
1шт.
|2
714-07-17911
GASKET,(F4350-63A0 -21- )
SN: 53001-(88319)
1шт.
|2
714-07-17930
GASKET,(F4350-61A0A-27 )
SN: 53001-UP
1шт.
|2
714-07-17941
GASKET,(F4350-61A0A-28 )
SN: 53001-UP
1шт.
|2
714-10-16960
O-RING,(F4350-63A0 -2 )
SN: 53001-(88142)
1шт.
|2
714-10-16970
O-RING,(F4350-63A0 -3 )
SN: 53001-(88142)
1шт.
3
714-12-05100
SERVICE KIT,TRANSMISSION PIPING
SN: 53001-UP
1шт.
|3
07000-02085
O-RING,(F4350-66A0 -17 )
SN: 53001-UP
1шт.
|3
07000-02105
O-RING,(F4350-66A0 -2 )
SN: 53001-UP
1шт.
|3
07000-73028
O-RING,(F4350-67A0 -9 )
SN: 53001-UP
1шт.
|3
07000-73028
O-RING,(F4350-67A0 -9 )
SN: 53001-UP
1шт.
|3
07000-73028
O-RING,(F4350-67A0 -9 )
SN: 53001-UP
1шт.
|3
07000-73030
O-RING,(F4350-67A0 -20 )
SN: 53001-UP
2шт.
|3
07000-73048
O-RING,(F4350-66A0 -23 )
SN: 53001-UP
1шт.
|3
07002-02434
O-RING,(F4350-67A0 -25 )
SN: 53001-UP
2шт.
|3
07002-03334
O-RING,(F4350-67A0 -2 )
SN: 53001-UP
2шт.
|3
07002-03334
O-RING,(F4350-67A0 -2 )
SN: 53001-UP
1шт.
4
416-15-05130
SERVICE KIT,TRANSMISSION OIL FILTER
SN: 53001-54000
1шт.
|4
07002-01223
O-RING,(F4350-68A0 -13 )
SN: 53001-54000
1шт.
|4
419-15-14860
O-RING,(F4350-68A0 -8 )
SN: 53001-54000
1шт.
|4
419-15-14870
GASKET,(F4350-68A0 -10 )
SN: 53001-54000
1шт.
|4
424-16-11130
O-RING,(F4350-68A0 -5 )
SN: 53001-54000
1шт.
