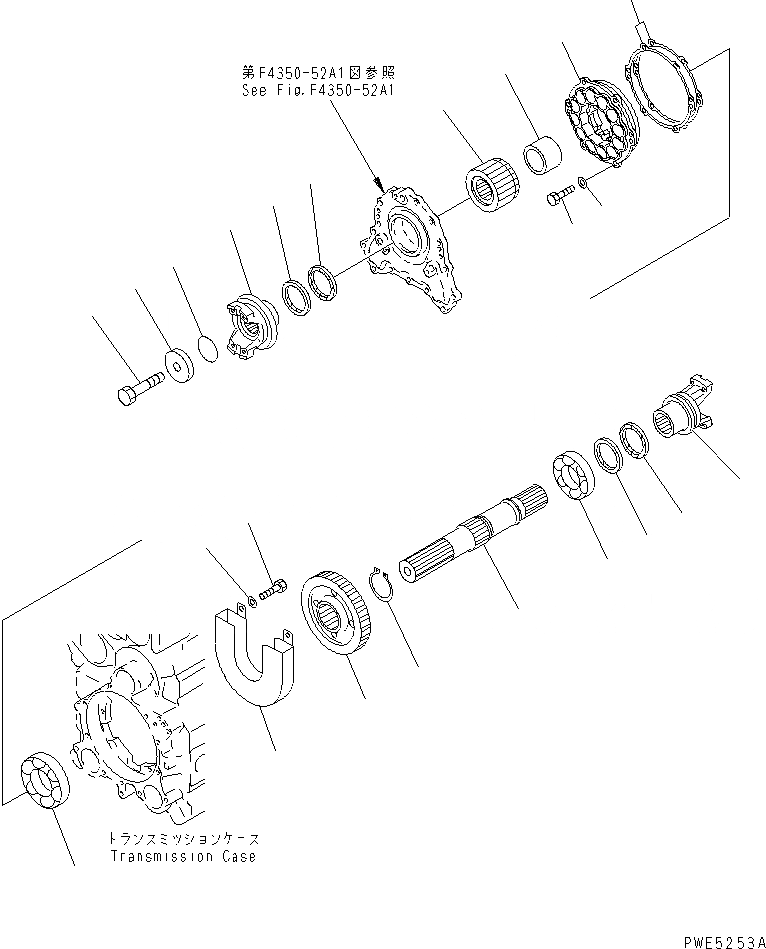

Запчасти Komatsu WA350-3-H ТРАНСМИССИЯ (ВЫХОДНОЙ ВАЛ) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

714-12-10000

TRANSMISSION ASS'Y

SN: 63001-UP

1шт.

|$$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-71A1.

-1шт.

|1

714-12-10041

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 64001-UP

1шт.

|1

714-12-10040

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 63001-64000

1шт.

|$$6

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-71A1.

-1шт.

1

714-12-14520

SHAFT,OUTPUT

SN: 63001-UP

1шт.

2

714-12-14620

GEAR¤ 36 TEETH

SN: 63001-UP

1шт.

3

04064-07525

RING,SNAP

SN: 63001-UP

1шт.

4

06002-30213

BEARING

SN: 63001-UP

1шт.

5

06002-32013

BEARING

SN: 63001-UP

1шт.

6

714-12-14910

COVER,GEAR

SN: 63001-UP

1шт.

7

01010-81225

BOLT

SN: 63001-UP

2шт.

8

01643-31232

WASHER

SN: 63001-UP

2шт.

9

714-12-14110

COUPLING,FRONT

SN: 63001-UP

1шт.

|9

423-20-15310

DEFLECTOR

SN: 63001-UP

1шт.

10

423-22-21240

WASHER

SN: 63001-UP

1шт.

11

01011-62020

BOLT

SN: 63001-UP

1шт.

12

07000-05055

O-RING (K1)

SN: 63001-UP

1шт.

13

714-12-19120

SEAL,OIL (K1)

SN: 63001-UP

1шт.

14

714-12-19120

SEAL,OIL (K1)

SN: 63001-UP

1шт.

15

714-12-19170

SEAL,DUST (K1)

SN: 63001-UP

1шт.

16

714-12-19170

SEAL,DUST (K1)

SN: 63001-UP

1шт.

17

714-12-18610

HUB

SN: 63001-UP

1шт.

18

714-12-14121

COUPLING,REAR

SN: (88754)-UP

1шт.

|18

714-12-14120

COUPLING,REAR

SN: 63001-(88753)

1шт.

|18

714-11-14320

DEFLECTOR

SN: 63001-UP

1шт.

19

714-12-17121

RETAINER

SN: 63001-UP

1шт.

20

714-12-14271

SHIM¤ 0.05MM

SN: 63001-UP

3шт.

|20

714-12-14280

SHIM¤ 0.5MM

SN: 63001-UP

2шт.

|20

714-12-14291

SHIM¤ 0.2MM

SN: 63001-UP

4шт.

21

01010-81235

BOLT

SN: 63001-UP

6шт.

22

01643-31232

WASHER

SN: 63001-UP

6шт.

23

714-12-18680

SPACER

SN: 63001-UP

1шт.
