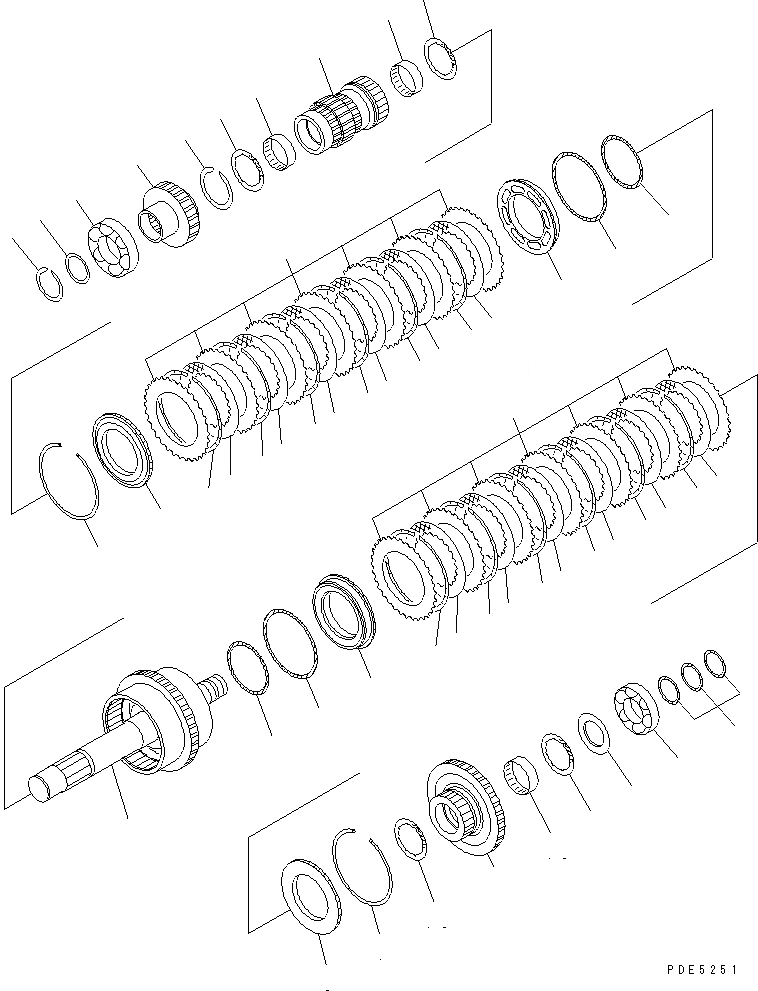

Запчасти Komatsu WA350-3-H ТРАНСМИССИЯ (1 И 3 МУФТА) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

714-12-10000

TRANSMISSION ASS'Y

SN: 63001-UP

1шт.

|$$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-71A1.

-1шт.

|1

714-12-10041

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 64001-UP

1шт.

|1

714-12-10040

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 63001-64000

1шт.

|$$6

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-71A1.

-1шт.

|1

714-12-12020

CLUTCH ASS'Y,1ST AND 3RD

SN: 63001-UP

1шт.

1

714-12-12120

SHAFT ASS'Y

SN: 63001-UP

1шт.

2

714-12-12660

PISTON,1ST AND 3RD

SN: 63001-UP

2шт.

3

714-12-19711

DISC

SN: (88646)-UP

12шт.

|3

0

DISC

SN: 63001-(88645)

12шт.

4

714-16-19730

PLATE,SEPARATE

SN: 63001-UP

14шт.

5

419-15-12133

SPRING,WAVE

SN: 63001-UP

12шт.

6

714-12-12610

PLATE,END

SN: 63001-UP

2шт.

7

419-15-12140

RING,SNAP

SN: 63001-UP

2шт.

8

714-16-19220

RING,SEAL

SN: 63001-UP

2шт.

9

714-16-19210

RING,SEAL

SN: 63001-UP

2шт.

10

714-08-19570

WASHER,THRUST

SN: 63001-UP

3шт.

11

714-08-19560

WASHER,THRUST

SN: 63001-UP

1шт.

12

419-15-12660

BEARING,NEEDLE

SN: 63001-UP

2шт.

13

419-15-13151

BEARING,NEEDLE

SN: (88848)-UP

1шт.

|13

0

BEARING,NEEDLE

SN: 63001-(88847)

1шт.

14

714-11-12720

SPACER

SN: 63001-UP

1шт.

15

714-12-12910

SPACER

SN: 63001-UP

1шт.

16

04066-00060

RING,SNAP

SN: 63001-UP

1шт.

17

04066-00062

RING,SNAP

SN: 63001-UP

1шт.

18

714-12-12440

GEAR¤ 49 TEETH,3RD

SN: 63001-UP

1шт.

19

714-12-12430

GEAR¤ 21 TEETH,1ST

SN: 63001-UP

1шт.

20

714-12-12510

GEAR¤ 29 TEETH,2ND

SN: 63001-UP

1шт.

21

06040-06212

BEARING

SN: 63001-UP

1шт.

22

714-12-19340

BEARING,ROLLER

SN: 63001-UP

1шт.

23

419-15-12122

RING,SEAL

SN: 63001-UP

3шт.
