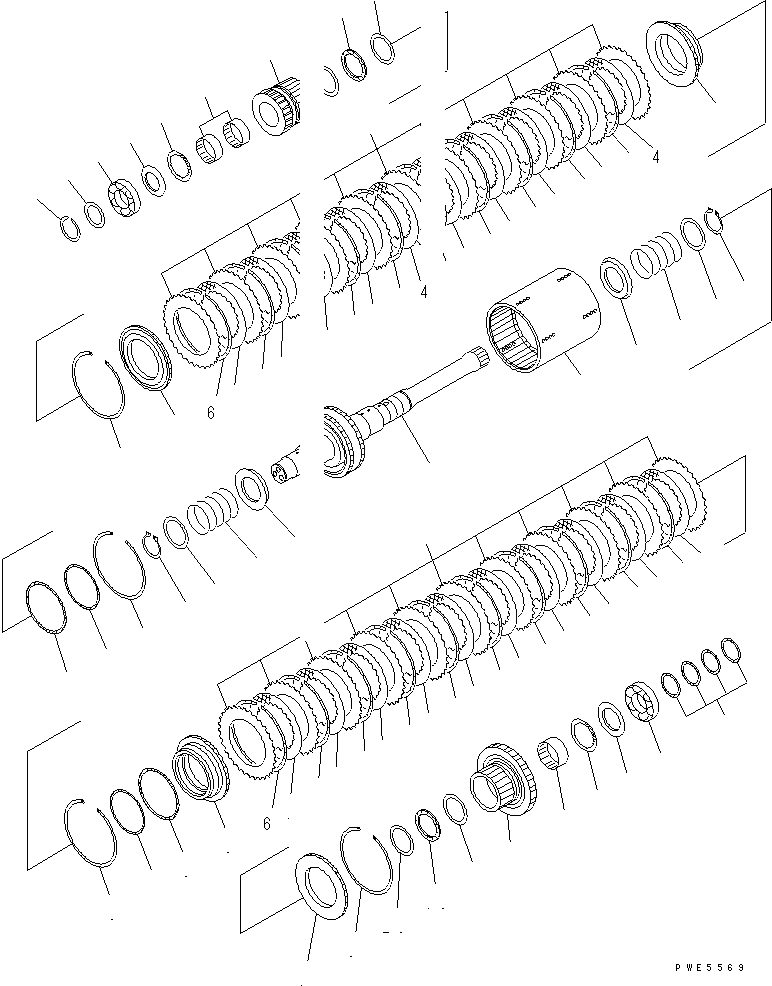

Запчасти Komatsu WA350-3-H ТРАНСМИССИЯ (МУФТА ВПЕРЕД/РЕВЕРС) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

714-12-10000

TRANSMISSION ASS'Y

SN: 63001-UP

1шт.

|$$3

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-71A1.

-1шт.

|1

714-12-10041

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 64001-UP

1шт.

|1

714-12-10040

TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)

SN: 63001-64000

1шт.

|$$6

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-71A1.

-1шт.

|1

714-12-12010

CLUTCH ASS'Y,FORWARD AND REVERSE

SN: 63001-UP

1шт.

1

714-12-12110

SHAFT ASS'Y

SN: 63001-UP

1шт.

2

714-12-12360

HOUSING

SN: 63001-UP

1шт.

3

714-12-12650

PISTON,FORWARD AND REVERSE

SN: 63001-UP

2шт.

4

714-12-19711

DISC

SN: (88646)-UP

20шт.

|4

0

DISC

SN: 63001-(88645)

20шт.

5

714-16-19730

PLATE,SEPARATE

SN: 63001-UP

22шт.

6

419-15-12133

SPRING,WAVE

SN: 63001-UP

20шт.

7

714-12-12610

PLATE,END

SN: 63001-UP

2шт.

8

419-15-12140

RING,SNAP

SN: 63001-UP

4шт.

9

714-11-19230

RING,SEAL

SN: 63001-UP

2шт.

10

714-16-19210

RING,SEAL

SN: 63001-UP

2шт.

11

714-08-19560

WASHER,THRUST

SN: 63001-UP

1шт.

12

714-11-19510

WASHER,THRUST

SN: 63001-UP

1шт.

13

419-15-12640

BEARING,THRUST

SN: 63001-UP

2шт.

14

714-12-19410

BEARING,NEEDLE

SN: 63001-UP

1шт.

15

419-15-12270

BEARING,NEEDLE

SN: 63001-UP

2шт.

16

714-12-12740

SPACER

SN: 63001-UP

1шт.

17

714-12-12710

SPACER

SN: 63001-UP

1шт.

18

714-12-19330

BEARING,BALL

SN: 63001-UP

1шт.

19

06033-02210

BEARING

SN: 63001-UP

1шт.

20

714-12-12420

GEAR¤ 38 TEETH,FORWARD

SN: 63001-UP

1шт.

21

714-12-12410

GEAR¤ 23 TEETH,REVERSE

SN: 63001-UP

1шт.

22

714-12-12830

SPRING

SN: 63001-UP

2шт.

23

714-12-12760

WASHER

SN: 63001-UP

2шт.

24

714-12-12780

PLATE

SN: 63001-UP

2шт.

25

714-12-12770

PLATE

SN: 63001-UP

2шт.

26

419-15-12650

WASHER,THRUST

SN: 63001-UP

2шт.

27

04064-06525

RING,SNAP

SN: 63001-UP

2шт.

28

714-12-12930

SPACER

SN: 63001-UP

1шт.

29

04066-00050

RING,SNAP

SN: 63001-UP

1шт.

30

714-07-12290

RING,SEAL

SN: 63001-UP

4шт.
