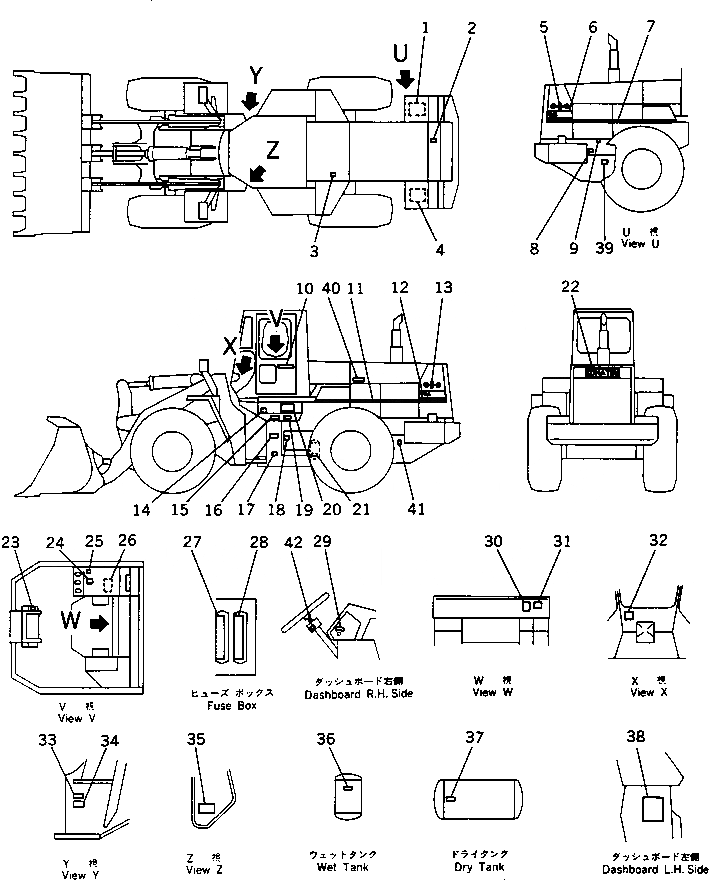

Запчасти Komatsu WA350-1 МАРКИРОВКА (ЯПОН.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-93-11420

PLATE¤ CAUTION,BATTERY

SN: 10001-UP

1шт.

2

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

3

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

4

419-93-11420

PLATE¤ CAUTION,BATTERY

SN: 10001-UP

1шт.

5

09694-50280

PLATE¤ MARK,SYMBOL

SN: 10001-UP

1шт.

6

423-93-11261

PLATE¤ MARK,WA350

SN: .-UP

1шт.

7

423-93-11142

PLATE¤ STRIPE

SN: 10001-UP

1шт.

8

09101-00100

PLATE¤ INSTRUCTION,FUEL

SN: .-UP

1шт.

9

362-54-17180

PLATE¤ CAUTION,FAN

SN: 10001-UP

1шт.

10

417-93-11280

PLATE¤ NAME,AVANCE

SN: 20001-UP

2шт.

11

423-93-11142

PLATE¤ STRIPE

SN: 10001-UP

1шт.

12

423-93-11261

PLATE¤ MARK,WA350

SN: .-UP

1шт.

13

09694-50280

PLATE¤ MARK,SYMBOL

SN: 10001-UP

1шт.

14

362-54-17230

PLATE¤ CAUTION,HOSE CHANGE

SN: 10001-UP

1шт.

15

09152-10100

PLATE¤ SAFETY,AIR TANK¤ DRAIN

SN: 10001-UP

1шт.

16

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: .-UP

1шт.

17

362-54-17160

PLATE¤ CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

18

424-93-11330

PLATE¤ CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-UP

1шт.

19

09152-10100

PLATE¤ SAFETY,AIR TANK¤ DRAIN

SN: 10001-UP

1шт.

20

423-93-11113

CHART¤ OIL

SN: 20001-UP

1шт.

21

09152-10100

PLATE¤ SAFETY,AIR TANK¤ DRAIN

SN: 20001-UP

1шт.

22

09690-50400

PLATE¤ MARK,KOMATSU

SN: 10001-UP

1шт.

23

424-93-11360

PLATE¤ OPERATING,WORK LAMP

SN: 10001-UP

1шт.

24

421-93-11132

PLATE¤ OPERATING,BUCKET CONTROL LEVER

SN: 10001-UP

1шт.

|24

416-881-1170

PLATE¤ OPERATING,LOG GRAPPLE

SN: 10001-UP

1шт.

|24

423-823-1520

PLATE¤ OPERATING,MULTI PURPOSE BUCKET

SN: 10001-UP

1шт.

25

09685-00003

PLATE¤ OPERATING,LEVER LOCK

SN: 20001-UP

1шт.

26

421-93-12230

PLATE¤ OPERATING,RELAY

SN: 20001-UP

1шт.

27

424-93-11241

PLATE¤ OPERATING,FUSE

SN: 20001-UP

1шт.

28

424-93-11251

PLATE¤ OPERATING,FUSE

SN: 20001-UP

1шт.

29

09683-01070

PLATE¤ OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

30

421-93-11181

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

31

424-93-11320

PLATE¤ CAUTION,STARTING AND INSPECTION

SN: 10001-UP

1шт.

32

419-93-11890

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10707-UP

1шт.

33

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

|33

04418-13060

SCREW

SN: 10001-UP

4шт.

34

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: .-UP

1шт.

35

421-93-11371

PLATE¤ OPERATING,MONITOR PANEL

SN: 20001-UP

1шт.

36

424-93-11120

PLATE¤ CAUTION,AIR TANK

SN: 10001-UP

1шт.

37

424-93-11120

PLATE¤ CAUTION,AIR TANK

SN: 10001-UP

2шт.

38

423-93-11160

PLATE¤ DATA

SN: 10001-UP

1шт.

39

421-93-11350

PLATE¤ INSTRUCTION,ENGINE OIL DRAIN

SN: 20001-UP

1шт.

40

423-895-1110

PLATE,FORK LOADER

SN: 20001-UP

1шт.

41

421-93-12190

PLATE¤ INSTRUCTION,REMOTE GREASE¤ REAR AXLE

SN: 20001-UP

1шт.

42

421-93-12290

PLATE¤ OPERATING,LAMP AND TURN SIGNAL

SN: 20001-UP

1шт.
