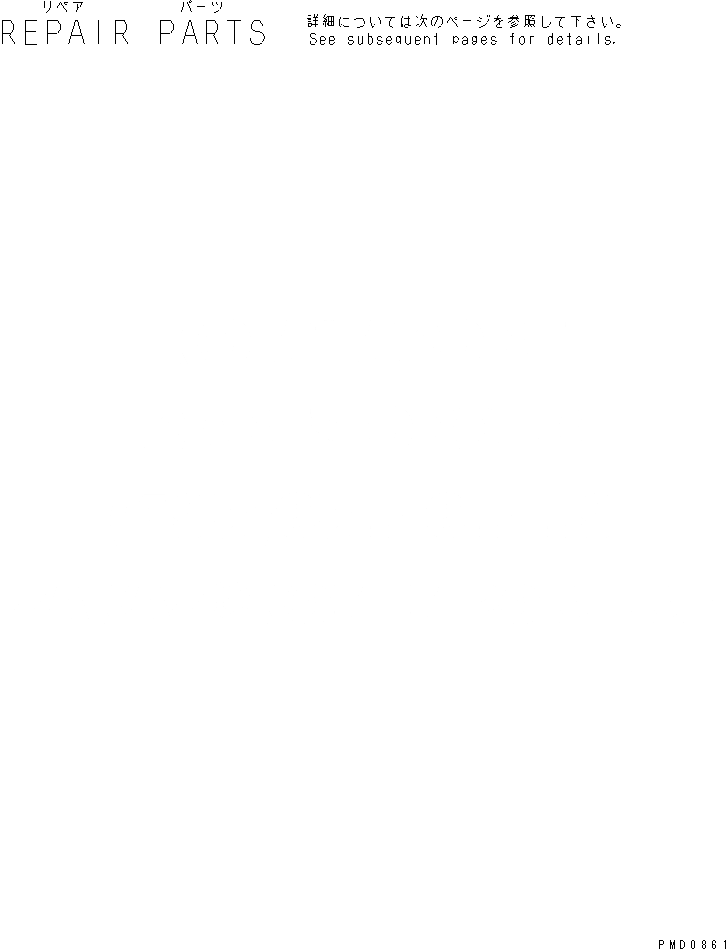

Запчасти Komatsu WA320PZ-6 ЗАПЧАСТИ ДЛЯ РЕМОНТА AA ДВИГАТЕЛЬ

1

6736-29-1410

BUSHING,CAM, NO.1

SN: 26500006-UP

1шт.

2

6736-29-1420

BUSHING,CAM, NO.2,3,4,5,6,7

SN: 26500006-UP

1шт.

|$3

6736-39-1130

SLEEVE,REAR

SN: 26500006-UP

1шт.

3

0

SLEEVE,WEAR

SN: 26500006-UP

1шт.

4

0

SEAL

SN: 26500006-UP

1шт.

|$6

6754-29-8320

MAIN METAL ASSEMBLY,UNDERSIZE 0.25MM

SN: 26537421-UP

6шт.

|$7

0

MAIN METAL ASSEMBLY,UNDERSIZE 0.25MM

SN: 26500006-26537420

6шт.

5

0

METAL,UPPER

SN: 26537421-UP

1шт.

5

0

METAL,UPPER

SN: 26500006-26537420

1шт.

6

0

METAL,LOWER

SN: 26537421-UP

1шт.

6

0

METAL,LOWER

SN: 26500006-26537420

1шт.

|$12

6754-29-8310

THRUST METAL ASSEMBLY,OVERSIZE 0.25MM

SN: 26537421-UP

1шт.

|$13

0

THRUST METAL ASSEMBLY,OVERSIZE 0.25MM

SN: 26500006-26537420

1шт.

7

0

METAL,UPPER

SN: 26537421-UP

1шт.

7

0

METAL,UPPER

SN: 26500006-26537420

1шт.

8

0

METAL,LOWER

SN: 26537421-UP

1шт.

8

0

METAL,LOWER

SN: 26500006-26537420

1шт.

|$18

6754-28-8320

MAIN METAL ASSEMBLY,UNDERSIZE 0.50MM

SN: 26537421-UP

6шт.

|$19

0

MAIN METAL ASSEMBLY,UNDERSIZE 0.50MM

SN: 26500006-26537420

6шт.

9

0

METAL,UPPER

SN: 26537421-UP

1шт.

9

0

METAL,UPPER

SN: 26500006-26537420

1шт.

10

0

METAL,LOWER

SN: 26537421-UP

1шт.

10

0

METAL,LOWER

SN: 26500006-26537420

1шт.

|$24

6754-28-8310

THRUST METAL ASSEMBLY,OVERSIZE 0.50MM

SN: 26537421-UP

1шт.

|$25

6735-28-8200

THRUST METAL ASSEMBLY,OVERSIZE 0.50MM

SN: 26500006-26537420

1шт.

11

0

METAL,UPPER

SN: 26537421-UP

1шт.

11

0

METAL,UPPER

SN: 26500006-26537420

1шт.

12

0

METAL,LOWER

SN: 26537421-UP

1шт.

12

0

METAL,LOWER

SN: 26500006-26537420

1шт.

|$30

6754-27-8320

MAIN METAL ASSEMBLY,UNDERSIZE 0.75MM

SN: 26537421-UP

6шт.

|$31

0

MAIN METAL ASSEMBLY,UNDERSIZE 0.75MM

SN: 26500006-26537420

6шт.

13

0

METAL,UPPER

SN: 26537421-UP

1шт.

13

0

METAL,UPPER

SN: 26500006-26537420

1шт.

14

0

METAL,LOWER

SN: 26537421-UP

1шт.

14

0

METAL,LOWER

SN: 26500006-26537420

1шт.

|$36

6754-27-8310

THRUST METAL ASSEMBLY,OVERSIZE 0.75MM

SN: 26537421-UP

1шт.

|$37

0

THRUST METAL ASSEMBLY,OVERSIZE 0.75MM

SN: 26500006-26537420

1шт.

15

0

METAL,UPPER

SN: 26537421-UP

1шт.

15

0

METAL,UPPER

SN: 26500006-26537420

1шт.

16

0

METAL,LOWER

SN: 26537421-UP

1шт.

16

0

METAL,LOWER

SN: 26500006-26537420

1шт.

|$42

6754-26-8320

MAIN METAL ASSEMBLY,UNDERSIZE 1.00MM

SN: 26537421-UP

6шт.

|$43

6735-26-8100

MAIN METAL ASSEMBLY,UNDERSIZE 1.00MM

SN: 26500006-26537420

6шт.

17

0

METAL,UPPER

SN: 26537421-UP

1шт.

17

0

METAL,UPPER

SN: 26500006-26537420

1шт.

18

0

METAL,LOWER

SN: 26537421-UP

1шт.

18

0

METAL,LOWER

SN: 26500006-26537420

1шт.

|$48

6754-26-8310

THRUST METAL ASSEMBLY,OVERSIZE 1.00MM

SN: 26537421-UP

1шт.

|$49

6736-27-8620

THRUST METAL ASSEMBLY,OVERSIZE 1.00MM

SN: 26500006-26537420

1шт.

19

0

METAL,UPPER

SN: 26537421-UP

1шт.

19

0

METAL,UPPER

SN: 26500006-26537420

1шт.

20

0

METAL,LOWER

SN: 26537421-UP

1шт.

20

0

METAL,LOWER

SN: 26500006-26537420

1шт.

|$54

6754-28-8410

THRUST METAL ASSEMBLY,OVERSIZE (BORE/THRUST)

SN: 26537421-UP

1шт.

|$55

0

THRUST METAL ASSEMBLY,OVERSIZE (BORE/THRUST)

SN: 26500006-26537420

1шт.

21

0

METAL,UPPER, 0.50MM/0.50MM

SN: 26537421-UP

1шт.

21

0

METAL,UPPER, 0.50MM/0.50MM

SN: 26500006-26537420

1шт.

22

0

METAL,LOWER, 0.50MM

SN: 26537421-UP

1шт.

22

0

METAL,LOWER, 0.50MM

SN: 26500006-26537420

1шт.

|$60

6754-26-8410

THRUST METAL ASSEMBLY,OVERSIZE (BORE/THRUST)

SN: 26537421-UP

1шт.

|$61

6731-21-8620

THRUST METAL ASSEMBLY,OVERSIZE (BORE/THRUST)

SN: 26500006-26537420

1шт.

23

0

METAL,UPPER, 1.00MM/1.00MM

SN: 26537421-UP

1шт.

23

0

METAL,UPPER, 1.00MM/1.00MM

SN: 26500006-26537420

1шт.

24

0

METAL,LOWER, 1.00MM

SN: 26537421-UP

1шт.

24

0

METAL,LOWER, 1.00MM

SN: 26500006-26537420

1шт.

25

6738-39-3400

METAL,ROD, LOWER, UNDERSIZE, 0.25MM

SN: 26500006-UP

6шт.

26

6738-38-3400

METAL,ROD, LOWER, UNDERSIZE, 0.50MM

SN: 26500006-UP

6шт.

27

6738-37-3400

METAL,ROD, LOWER, UNDERSIZE, 0.75MM

SN: 26500006-UP

6шт.

28

6738-36-3400

METAL,ROD, LOWER, UNDERSIZE, 1.00MM

SN: 26500006-UP

6шт.

29

6754-39-2111

PISTON

SN: 26509353-UP

6шт.

29

6754-31-2111

PISTON

SN: 26508983-26509352

6шт.

29

6754-39-2110

PISTON,OVERSIZE 0.50MM

SN: 26500006-26508982

6шт.
