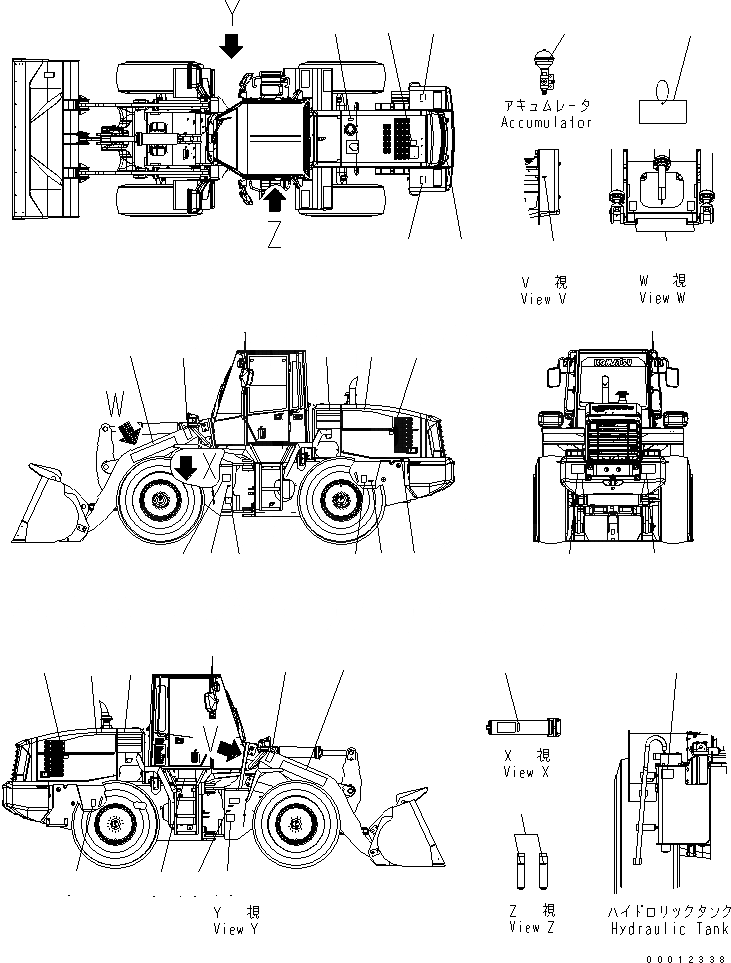

Запчасти Komatsu WA320L-5 МАРКИРОВКА МАРКИРОВКА

1

419-93-22143

PLATE,WA320 (L.H.)

SN: 60001-UP

1шт.

2

419-93-22153

PLATE,WA320 (R.H.)

SN: 60001-UP

1шт.

3

419-93-22160

PLATE

SN: 60001-UP

2шт.

4

09690-P0800

PLATE, MARK,KOMATSU

SN: 60001-UP

2шт.

5

419-93-22221

OIL CHART

SN: 60024-UP

1шт.

5

419-93-22220

OIL CHART

SN: 60001-60023

1шт.

6

09960-01001

PLATE, MARK,LIFTING EYE

SN: 60001-UP

4шт.

|$9

419-93-22231

PLATE, MARK

SN: 60001-UP

1шт.

7

0

PLATE, MARK,REMOTE GREASE, REAR AXLE

SN: 60001-UP

1шт.

8

0

PLATE, MARK,RADIATOR DRAIN

SN: 60001-UP

1шт.

9

0

PLATE, MARK,REMOTE GREASE, FRONT, L.H.

SN: 60001-UP

1шт.

10

0

PLATE, MARK,REMOTE GREASE, FRONT, R.H.

SN: 60001-UP

1шт.

11

0

PLATE, MARK,REMOTE GREASE, FRONT

SN: 60001-UP

1шт.

12

09669-0000E

PLATE, CAUTION,FUEL

SN: 60001-UP

1шт.

13

09161-23000

PLATE,FRAME LOCK

SN: 60001-UP

1шт.

14

09653-03001

PLATE, SAFETY,HYDRAULIC TANK CAP

SN: 60001-UP

1шт.

15

09162-23000

PLATE,ARTICULATE

SN: 60001-UP

2шт.

16

09807-C0883

PLATE, SAFETY,KEEP OUT

SN: 60001-UP

2шт.

17

09667-03001

PLATE, SAFETY,FAN

SN: 60001-UP

2шт.

18

09812-13000

PLATE, SAFETY,APPROACH

SN: 60001-UP

2шт.

19

09808-03000

PLATE, SAFETY,ELECTRIC SHOCK

SN: 60001-UP

2шт.

20

09668-03001

PLATE, SAFETY,RADIATOR

SN: 60001-UP

1шт.

21

09659-53000

PLATE, SAFETY,ACCUMULATOR

SN: 60001-UP

3шт.

22

421-93-A1510

PLATE,NO ETHER

SN: 60001-UP

1шт.

23

09963-03001

TAG,DO NOT OPERATE

SN: 60001-UP

1шт.
