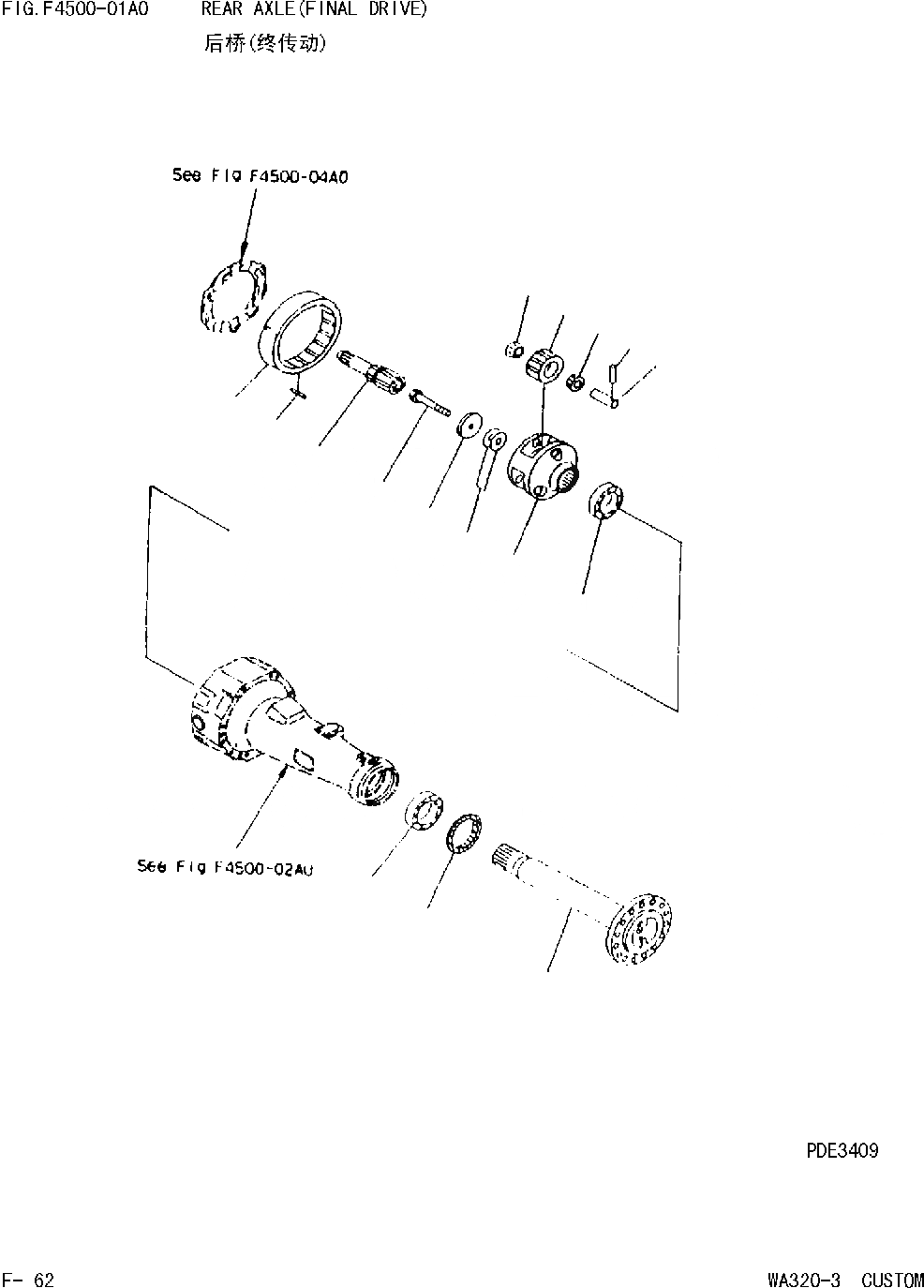

Запчасти Komatsu WA320 AVANCE CUSTOM ЗАДН. МОСТ КОНЕЧНАЯ ПЕРЕДАЧА [ТРАНСМИССИЯ]

|$1

419-23-20012

AXLE ASS'Y, REAR

Field_2: 20001-

1шт.

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIG.F4500-01A0 TO 4500-04A0

-1шт.

1

419-22-22730

GEAR

Field_2: 20001-

6шт.

2

417-22-22810

BEARING CONE

Field_2: 20001-

12шт.

3

419-22-22810

CARRIER

Field_2: 20001-

2шт.

4

419-22-22950

WASHER

Field_2: 20001-

2шт.

5

419-22-12510

SHAFT

Field_2: 20001-

6шт.

6

419-22-12570

PIN

Field_2: 20001-

6шт.

7

419-22-22710

SHAFT

Field_2: 20001-

2шт.

8

419-22-22850

BEARING

Field_2: 20001-

2шт.

9

419-22-22861

SEAL OIL

Field_2: 20001-

2шт.

10

418-22-12850

BEARING

Field_2: 20001-

2шт.

11

419-22-22740

GEAR

Field_2: 20001-

2шт.

12

419-22-22780

PIN

Field_2: 20001-

6шт.

13

01011-62000

BOLT

Field_2: 20001-

2шт.

14

418-22-21460

SHIM 0.05 MM

Field_2: 20001-

4шт.

|$17

418-22-21470

SHIM 0.2 MM

Field_2: 20001-

4шт.

|$18

418-22-21480

SHIM 0.5 MM

Field_2: 20001-

4шт.

15

419-22-22720

SHAFT

Field_2: 20001-

2шт.
