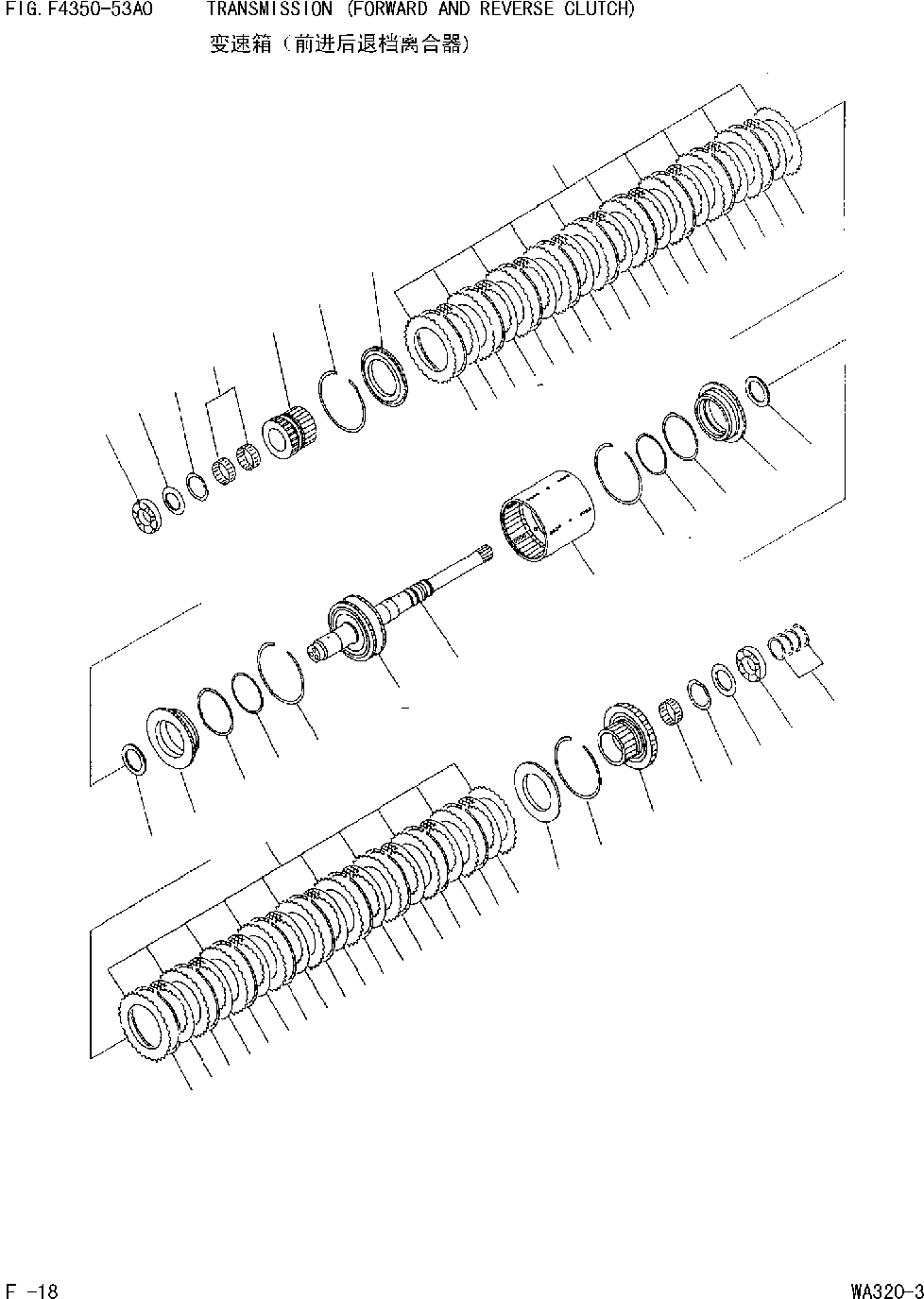

Запчасти Komatsu WA320 AVANCE CUSTOM ТРАНСМИССИЯ(МУФТА ВПЕРЕД/РЕВЕРС) [ТРАНСМИССИЯ]

|$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$1

-1шт.

|$3

714-16-20001

TRANSMISSION ASS'Y

Field_2: 20031-

1шт.

|$4

714-16-20000

TRANSMISSION ASS'Y

Field_2: 20001-20030

1шт.

|$1

-1шт.

|$6

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0

-1шт.

|$1

-1шт.

|$8

714-16-22010

CLUTCH ASS'Y,FORWARD AND REVERSE

Field_2: 20001-

1шт.

|$9

714-16-22110

SHAFT ASS'Y

Field_2: 20001-

1шт.

1

714-16-22210

SHAFTЃCINPUT

Field_2: 20001-

1шт.

2

714-16-12340

CYLINDER

Field_2: 20001-

1шт.

3

714-16-22360

HOUSING ASS'Y

Field_2: 20001-

1шт.

4

714-16-22650

PISTON,FORWARD AND REVERSE

Field_2: 20001-

2шт.

5

714-12-19711

DISC

Field_2: 20001-

18шт.

6

714-16-19730

PLATE,SEPARATE

Field_2: 20001-

20шт.

7

419-15-12133

SPRING,WAVE

Field_2: 20001-

18шт.

8

714-12-12610

PLATE ,END

Field_2: 20001-

2шт.

9

419-15-12140

RING,SNAP

Field_2: 20001-

4шт.

10

714-08-19230

RING,SEAL

Field_2: 20001-

2шт.

11

714-16-19210

RING,SEAL

Field_2: 20001-

2шт.

12

714-11-19510

WASHER,THRUST

Field_2: 20001-

2шт.

13

714-08-19560

WASHER,THRUST

Field_2: 20001-

2шт.

14

419-15-12270

BEARING,NEEDLE

Field_2: 20001-

3шт.

15

714-11-12710

SPACER

Field_2: 20001-

2шт.

16

714-13-19310

BEARING

Field_2: 20001-

1шт.

17

714-13-19310

BEARING

Field_2: 20001-

1шт.

18

714-16-22420

GEARЃA38 TEETH,FORWARD

Field_2: 20001-

1шт.

19

714-16-22410

GEARЃA23 TEETH,REVERSE

Field_2: 20001-

1шт.

20

419-15-12122

RING,SEAL

Field_2: 20001-

4шт.
