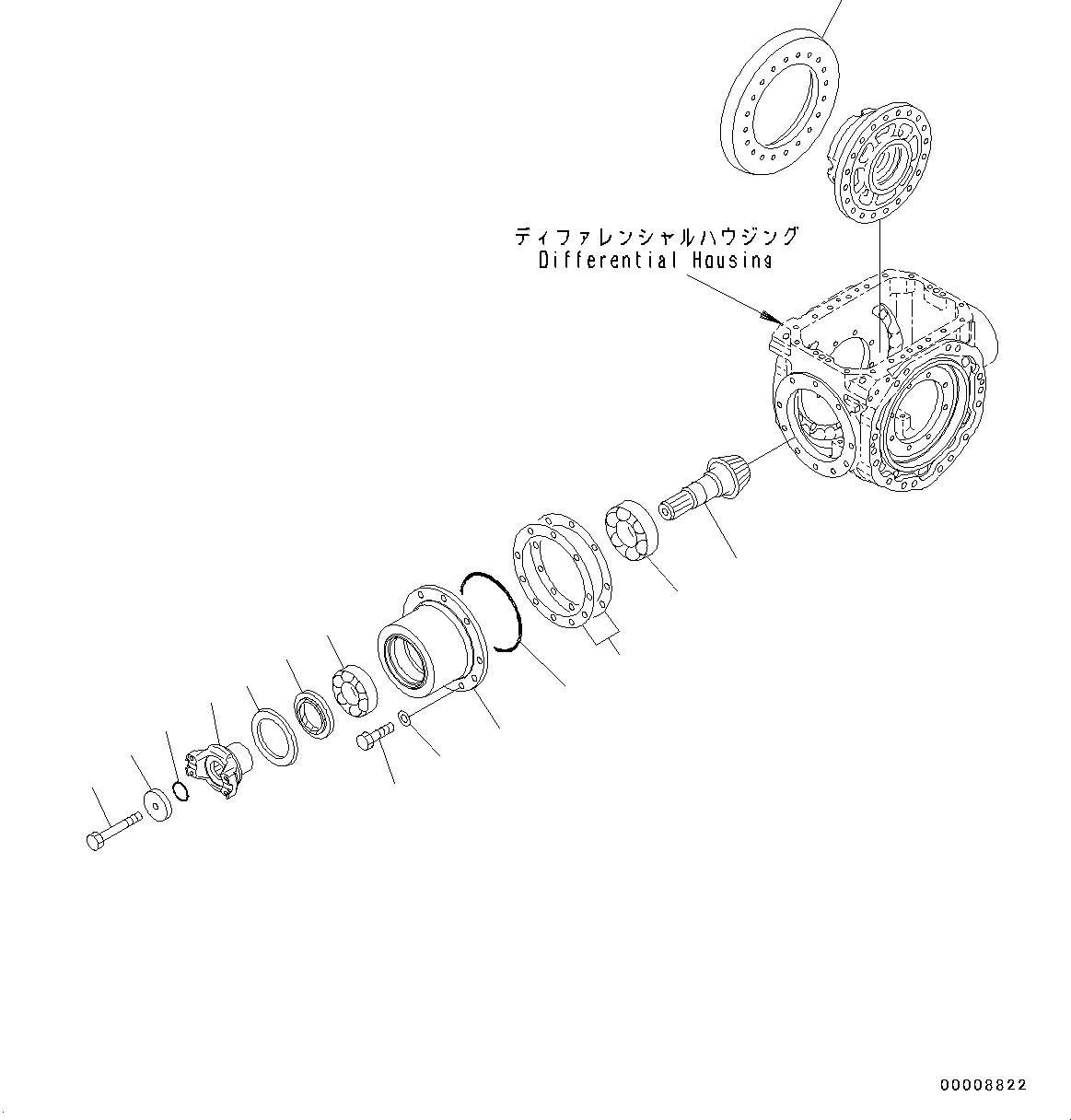

Запчасти Komatsu WA320-5 ЗАДН. МОСТ (ДИФФЕРЕНЦ. /) F POWER TRANSMITTING СИСТЕМА

|$1

419-23-H1111

AXLE ASSEMBLY (STD)

SN: H51447-UP

1шт.

|$2

419-23-H1111

AXLE ASSEMBLY (STD)

SN: H51427-H51427

1шт.

|$3

419-23-H1101

AXLE ASSEMBLY (ASD)

SN: H51442-UP

1шт.

|$4

419-23-H1101

AXLE ASSEMBLY (ASD)

SN: H51426-H51431

1шт.

|$5

419-23-31010

DIFFERENTIAL ASSEMBLY (STD)

SN: H51447-UP

1шт.

|$6

419-23-31010

DIFFERENTIAL ASSEMBLY (STD)

SN: H51427-H51427

1шт.

|$7

419-23-31050

DIFFERENTIAL ASSEMBLY (ASD)

SN: H51442-UP

1шт.

|$8

419-23-31050

DIFFERENTIAL ASSEMBLY (ASD)

SN: H51426-H51431

1шт.

1

419-22-31230

COUPLING

SN: H51442-UP

1шт.

1

419-22-31230

COUPLING

SN: H51426-H51431

1шт.

2

418-22-21310

PROTECTOR

SN: H50051-UP

1шт.

2

419-22-21800

PINION ASSEMBLY

SN: H50051-UP

1шт.

3

0

PINION

SN: H50051-UP

1шт.

4

0

PISTON

SN: H50051-UP

1шт.

5

419-22-11810

BEARING

SN: H50051-UP

1шт.

6

419-23-21631

CAGE

SN: H50051-UP

1шт.

7

419-22-11820

BEARING

SN: H50051-UP

1шт.

8

418-22-21330

SEAL, OIL

SN: H50051-UP

1шт.

9

423-22-11240

HOLDER

SN: H50051-UP

1шт.

10

01011-61615

BOLT

SN: H50051-UP

1шт.

11

07000-13042

O-RING

SN: H50051-UP

1шт.

12

07000-15180

O-RING

SN: H50051-UP

1шт.

13

419-22-11361

SHIM, T=0.05MM

SN: H50051-UP

-26шт.

13

419-22-11371

SHIM, T=0.2MM

SN: H50051-UP

-26шт.

13

419-22-11381

SHIM, T=0.3MM

SN: H50051-UP

-26шт.

13

419-22-11391

SHIM, T=0.8MM

SN: H50051-UP

-26шт.

14

01010-61440

BOLT

SN: H50051-UP

10шт.

15

01643-31445

WASHER

SN: H50051-UP

10шт.
