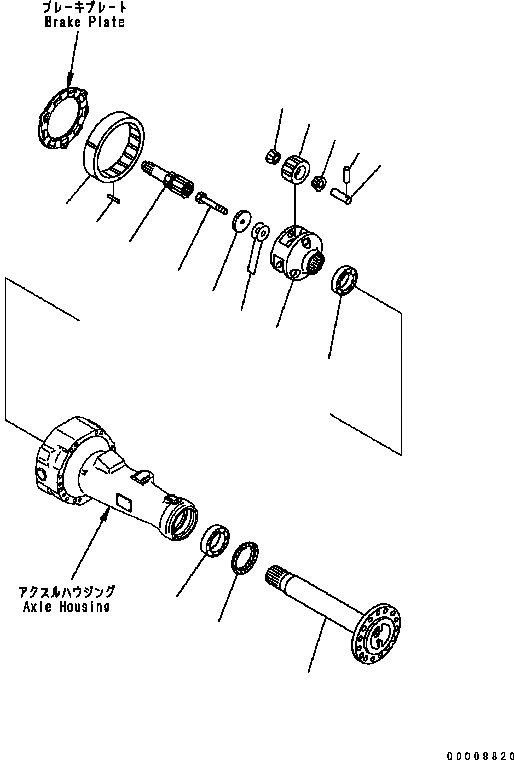

Запчасти Komatsu WA320-5 ЗАДН. МОСТ (КОНЕЧНАЯ ПЕРЕДАЧА) ТРАНСМИССИЯ

|1

419-23-30010

AXLE ASS'Y {REAR}

SN: B10001-UP

1шт.

|$1

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4500-51A0 TO F4500-57A0.

-1шт.

1

419-22-22730

GEAR

SN: B10001-UP

6шт.

2

417-22-22810

BEARING {CONE}

SN: B10001-UP

12шт.

3

419-22-22810

CARRIER

SN: B10001-UP

2шт.

4

419-22-22950

WASHER

SN: B10001-UP

2шт.

5

419-22-12510

SHAFT

SN: B10001-UP

6шт.

6

419-22-12570

PIN

SN: B10001-UP

6шт.

7

419-22-32410

SHAFT

SN: B10001-UP

2шт.

8

419-22-22850

BEARING

SN: B10001-UP

2шт.

9

419-22-22861

SEAL {OIL}

SN: B10001-UP

2шт.

10

418-22-12850

BEARING

SN: B10001-UP

2шт.

11

419-22-22741

GEAR

SN: B10001-UP

2шт.

12

419-22-22780

PIN

SN: B10001-UP

6шт.

13

01011-62000

BOLT

SN: B10001-UP

2шт.

14

418-22-21460

SHIM¤ 0.05MM

SN: B10001-UP

4шт.

|14

418-22-21470

SHIM¤ 0.2MM

SN: B10001-UP

4шт.

|14

418-22-21480

SHIM¤ 0.5MM

SN: B10001-UP

4шт.

15

419-22-22720

SHAFT

SN: B10001-UP

2шт.
