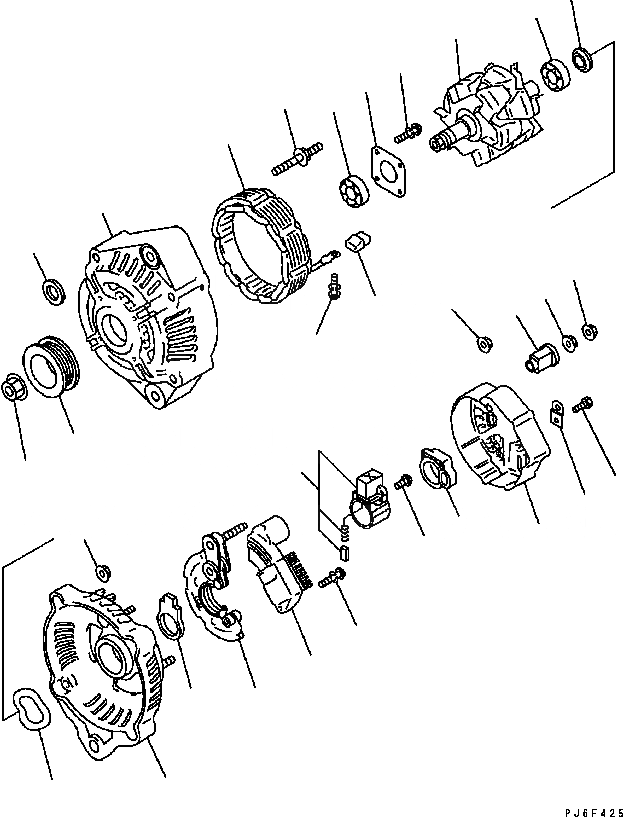

Запчасти Komatsu WA320-5 ГЕНЕРАТОР (A) (ВНУТР. ЧАСТИ) КОМПОНЕНТЫ ДВИГАТЕЛЯ

|1

600-861-6420

ALTERNATOR A. (60A)

SN: B10001-UP

1шт.

|1

ND121400-0800

FRAME ASS'Y

SN: B10001-UP

1шт.

1

ND021100-4210

STATOR ASS'Y

SN: B10001-UP

1шт.

2

ND021401-4980

FRAME

SN: B10001-UP

1шт.

3

ND021411-0570

PLATE

SN: B10001-UP

1шт.

4

ND021045-0530

COLLAR

SN: B10001-UP

1шт.

5

ND949006-5590

SCREW

SN: B10001-UP

4шт.

6

ND949100-5010

BEARING {BALL}

SN: B10001-UP

1шт.

7

ND949043-2000

BOLT {STUD}

SN: B10001-UP

4шт.

8

ND021501-8050

FRAME {REAR}

SN: B10001-UP

1шт.

9

ND021580-4820

HOLDER

SN: B10001-UP

1шт.

10

ND021620-2720

BRUSH HOLDER ASS'Y

SN: B10001-UP

1шт.

11

ND126000-2320

REGULATOR ASS'Y

SN: B10001-UP

1шт.

12

ND021551-2480

COVER

SN: B10001-UP

1шт.

13

ND021605-1970

BUSHING

SN: B10001-UP

4шт.

14

ND021605-2481

BUSHING

SN: B10001-UP

1шт.

15

ND949006-5460

SCREW

SN: B10001-UP

3шт.

16

ND91310-04251

SCREW

SN: B10001-UP

2шт.

|16

ND949007-5110

SCREW

SN: B10001-UP

2шт.

17

ND949056-2481

NUT

SN: B10001-UP

7шт.

18

ND949056-3080

NUT

SN: B10001-UP

1шт.

19

ND021200-8380

ROTOR ASS'Y

SN: B10001-UP

1шт.

20

ND949100-2790

BEARING {BALL}

SN: B10001-UP

1шт.

21

ND021506-0070

COVER

SN: B10001-UP

1шт.

22

ND021041-8620

PULLEY

SN: B10001-UP

1шт.

23

ND949056-2520

NUT

SN: B10001-UP

1шт.

24

ND021626-0190

SEAL

SN: B10001-UP

1шт.

25

ND021626-0250

SEAL

SN: B10001-UP

1шт.

26

ND021542-0160

WASHER

SN: B10001-UP

1шт.

27

ND949006-6401

SCREW

SN: B10001-UP

1шт.

28

ND949007-6280

SCREW

SN: B10001-UP

4шт.

29

ND021602-5230

PLATE

SN: B10001-UP

1шт.

30

ND92150-06061

NUT

SN: B10001-UP

1шт.
