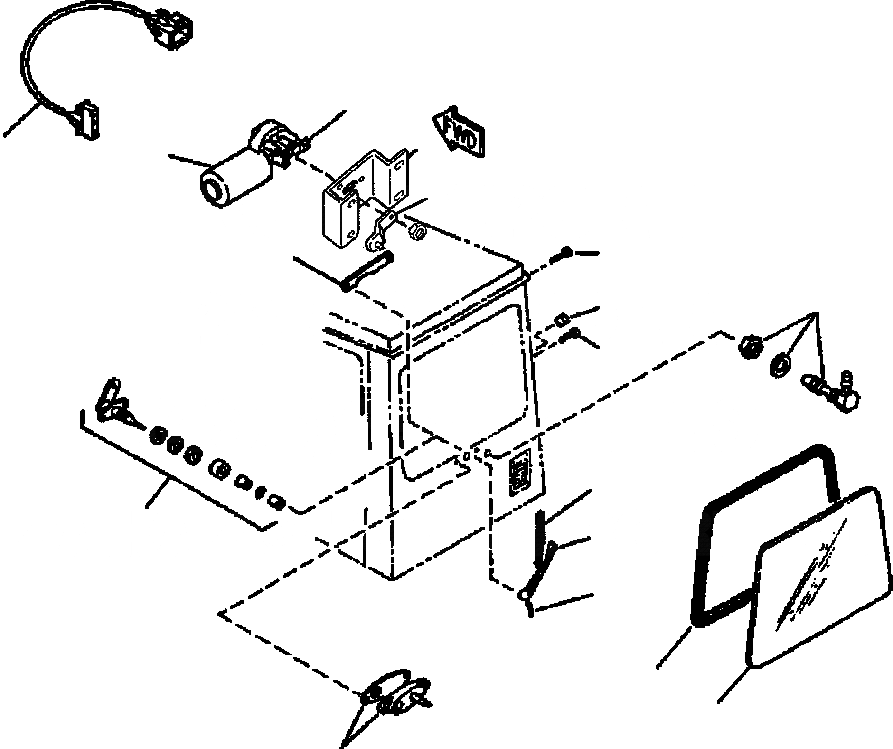

Запчасти Komatsu WA320-3L FIG. K-A OPERATOR КАБИНА - ЗАДН. ОКНА И ДВОРНИКИ КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

CAB ASSEMBLY, ROPS (SEE FIG. K0210-05A0)

SN: A30001--UP

1шт.

1

421-926-2510

GLASS, REAR

SN: A30001--UP

1шт.

2

423-926-A170

STRIP, WEATHER

SN: A30001--UP

1шт.

3

423-926-A250

MOTOR, REAR WIPER - 24V

SN: A30001--UP

1шт.

4

423-926-A680

DRIVE, ARM

SN: A30001--UP

1шт.

5

423-926-A460

BRACKET, MOUNT WIPER MOTOR

SN: A30001--UP

1шт.

|$6

01435-00610

BOLT, BRACKET MOUNTING

SN: A30001--UP

4шт.

6

423-926-A350

LINK, REAR WIPER

SN: A30001--UP

1шт.

7

423-926-A370

SHAFT ASSEMBLY, WIPER (1 IN.)

SN: A30001--UP

1шт.

8

423-926-A300

KIT, PANTO ADAPTER

SN: A30001--UP

1шт.

|$10

363-06-35410

BOLT, PANTO ADAPTER MOUNTING

SN: A30001--UP

2шт.

9

423-926-A240

HARNESS, REAR WIPER MOTOR

SN: A30001-A31018-UP

1шт.

10

417-927-AL70

FITTING, COWL

SN: A30001--UP

1шт.

11

423-926-A380

KIT, WASHER - WET ARM

SN: A30001--UP

1шт.

12

423-926-A360

ARM, REAR WIPER (22 IN.)

SN: A30001--UP

1шт.

13

423-926-A340

BLADE, REAR WIPER (18 IN.)

SN: A30001--UP

1шт.

14

423-926-A710

CAP

SN: A30001--UP

1шт.

15

01220-70412

SCREW

SN: A30001--UP

2шт.

16

423-926-A330

LINK

SN: A30001--UP

1шт.
