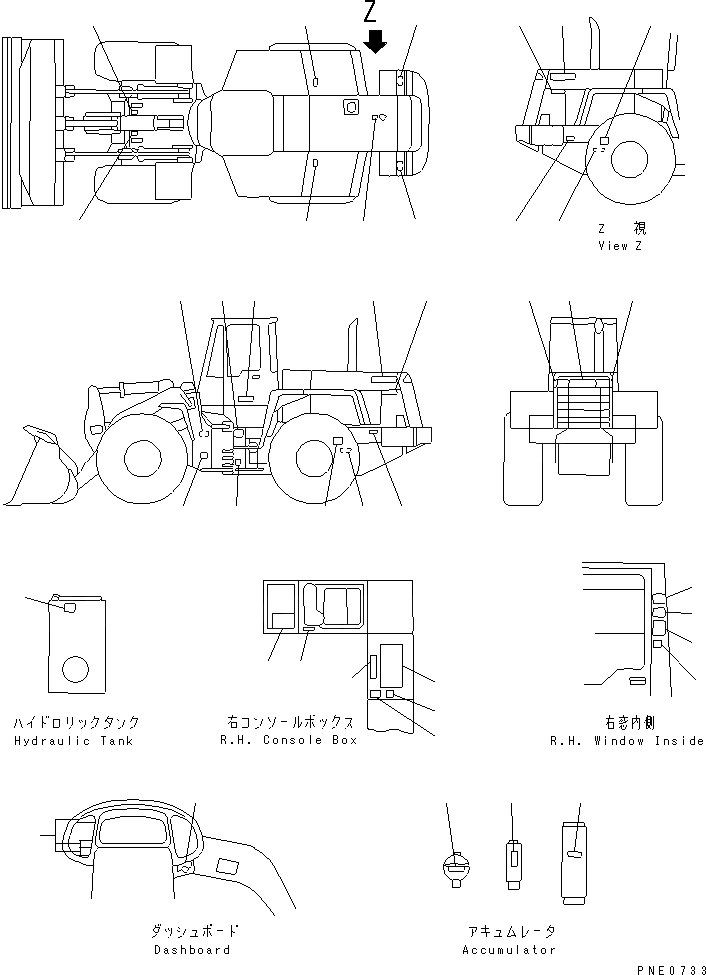

Запчасти Komatsu WA320-3 МАРКИРОВКА (С КАБИНОЙ) (АНГЛ.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|$0
421-93-21310
PLATE KIT
SN: 50001-UP
1шт.
1
0
PLATE, SAFETY,RADIATOR CAP
SN: 50001-UP
1шт.
2
0
PLATE, SAFETY,BATTERY CABLE
SN: 50001-UP
2шт.
3
0
PLATE, INSTRUCTION,ENGINE OIL DRAIN
SN: 50001-UP
1шт.
4
0
PLATE, SAFETY,SAFETY BAR
SN: 50001-UP
1шт.
5
0
PLATE, SAFETY,KEEP OUT
SN: 50001-UP
2шт.
6
0
PLATE, INSTRUCTION,FUEL
SN: 50001-UP
1шт.
7
0
PLATE, INSTRUCTION,RADIATOR DRAIN
SN: 50001-UP
1шт.
8
0
PLATE, SAFETY,HYDRAULIC TANK CAP
SN: 50001-UP
1шт.
|$9
419-93-21310
PLATE KIT
SN: 50001-UP
1шт.
9
0
PLATE, INSTRUCTION,WORK EQUIPMENT LEVER LOCK
SN: 50001-UP
1шт.
10
0
PLATE, INSTRUCTION,WORK EQUIPMENT LEVER
SN: 50001-UP
1шт.
11
0
PLATE, SAFETY,RELAY
SN: 50001-UP
1шт.
12
0
PLATE, SAFETY,FUSE
SN: 50001-UP
1шт.
13
0
PLATE, SAFETY,WORK EQUIPMENT LEVER LOCK
SN: 50001-UP
1шт.
14
0
PLATE, SAFETY,INSPECTION
SN: 50001-UP
1шт.
15
0
PLATE, SAFETY,BEFORE OPERATING
SN: 50001-UP
1шт.
16
0
PLATE, INSTRUCTION,STARTING SWITCH
SN: 50001-UP
1шт.
17
0
PLATE, CAUTION,EMERGENCY PARKING BRAKE
SN: 50001-UP
1шт.
18
0
PLATE, OPERATING,EMERGENCY PARKING BRAKE
SN: 50001-UP
1шт.
19
0
PLATE, NAME,RELAY
SN: 50001-UP
1шт.
20
09805-03000
PLATE, SAFETY,FULL FENDER
SN: 50001-UP
2шт.
21
09602-10010
PLATE, NAME,(LIMITED SUPPLY)
SN: 50001-UP
1шт.
22
419-93-21320
CHART, OIL
SN: 50001-UP
1шт.
23
09690-B0280
PLATE, MARK,KOMATSU
SN: 50001-UP
2шт.
24
419-93-21250
PLATE, MARK,WA320
SN: 50001-UP
2шт.
25
417-93-21220
PLATE, MARK,AVANCE LOADER
SN: 50001-UP
2шт.
26
417-93-21140
PLATE, MARK,KOMATSU
SN: 50001-UP
1шт.
27
417-93-21150
PLATE, STRIPE,L.H.
SN: 50001-UP
1шт.
28
417-93-21160
PLATE, STRIPE,R.H.
SN: 50001-UP
1шт.
29
09659-53000
PLATE, SAFETY,ACCUMULATOR
SN: 50001-UP
5шт.
30
419-93-21240
PLATE, INSTRUCTION,REAR AXLE PIVOT PIN
SN: 50001-UP
1шт.
31
09960-01001
PLATE, MARK,LIFT HERE
SN: 50001-UP
4шт.
32
7823-62-9010
PLATE KIT,MONITOR PANEL
SN: 50001-UP
1шт.
Выбрано товаров: 35
