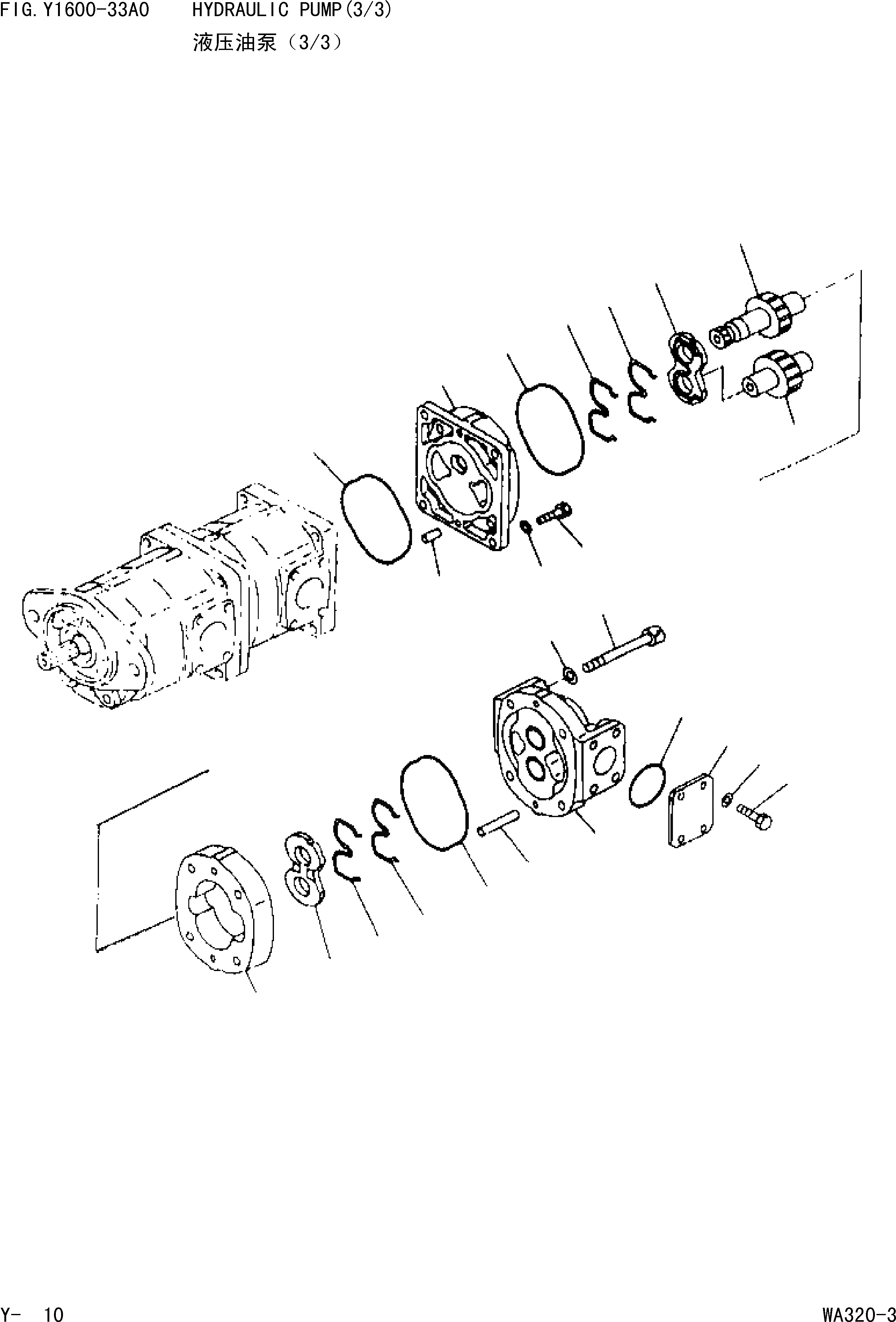

Запчасти Komatsu WA320-3 ГИДР. НАСОС.(/) РЕМ. КОМПЛЕКТЫ И COMPONENT]

|$0

705-55-24130

PUMP ASS'Y,(SAR(2)50+40+8A) THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-31A0 TO Y1600-33A0

Field_1: 15001-

1шт.

|$1

705-13-20540

PUMP ASS'Y.(SAR(2)8A)

Field_1: 15001-

1шт.

1

0

BRACKET

Field_1: 15001-

1шт.

|$3

0

BUSHING

Field_1: 15001-

2шт.

2

0

CASE.GEAR

Field_1: 15001-

1шт.

3

0

CARRIER

Field_1: 15001-

1шт.

|$6

0

BUSHING

Field_1: 15001-

2шт.

4

0

GEAR.DRIVE

Field_1: 15001-

1шт.

5

0

GEAR.DRIVEN

Field_1: 15001-

1шт.

6

705-17-02612

PLATE.SIDE

Field_1: 15001-

2шт.

7

705-17-02430

RING.BACK-UP

Field_1: 15001-

2шт.

8

705-17-02460

RING.SEAL

Field_1: 15001-

2шт.

9

705-17-02360

O-RING

Field_1: 15001-

2шт.

10

04020-01024

PIN.DOWEL

Field_1: 15001-

2шт.

11

705-17-02910

PIN.DOWEL

Field_1: 15001-

2шт.

12

705-17-02710

BOLT

Field_1: 15001-

4шт.

13

01643-51232

WASHER

Field_1: 15001-

4шт.

14

705-17-02420

O-RING

Field_1: 15001-

1шт.

15

705-17-02374

BOLT

Field_1: 15001-

4шт.

16

01643-51032

WASHER

Field_1: 15001-

4шт.

17

705-17-02881

PLATE

Field_1: 15001-

1шт.

18

07000-33038

O-RING

Field_1: 15001-

1шт.

19

01010-51025

BOLT

Field_1: 15001-

4шт.

20

01643-51032

WASHER

Field_1: 15001-

4шт.
