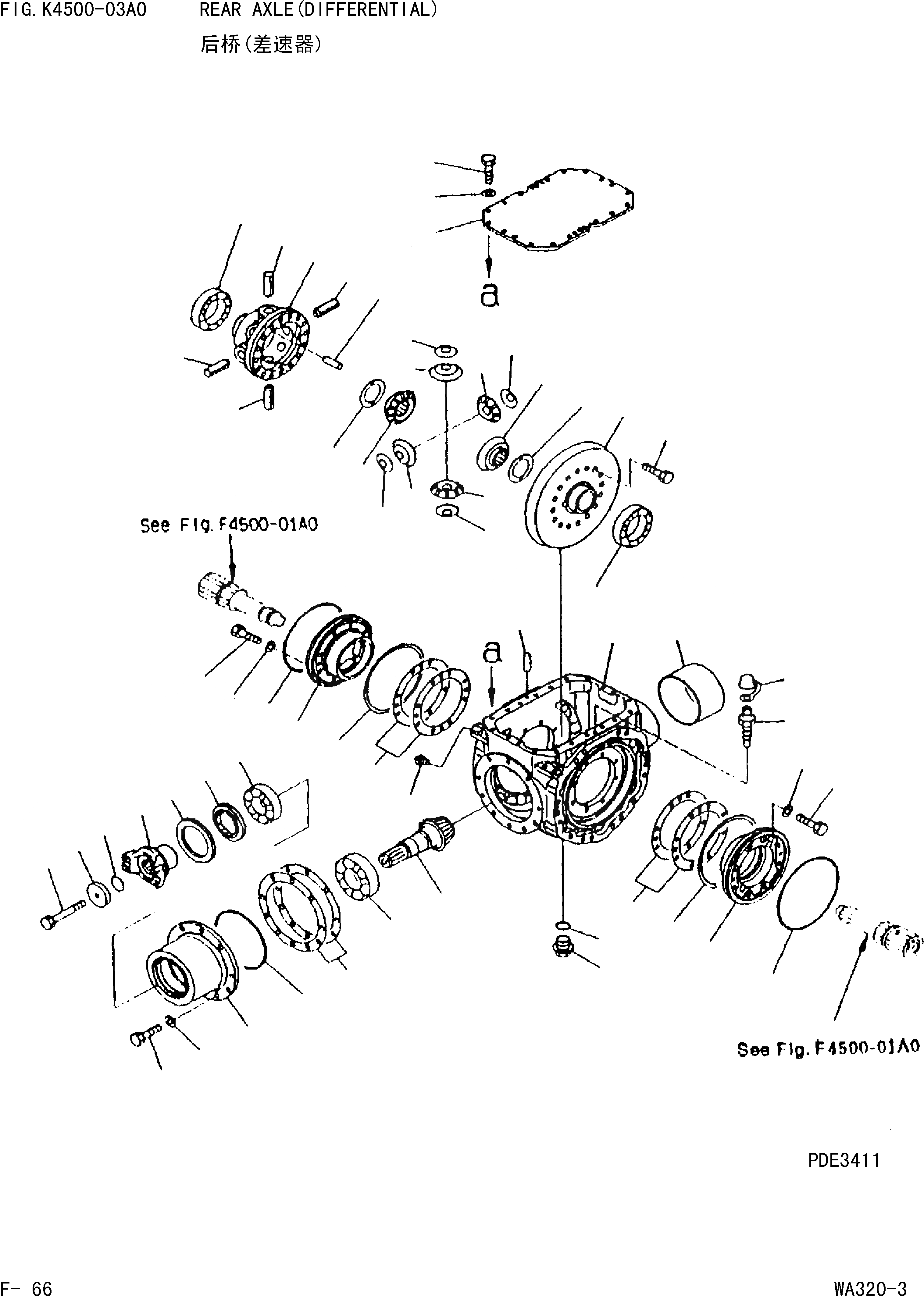

Запчасти Komatsu WA320-3 ЗАДН. МОСТ(ДИФФЕРЕНЦ.) F[ТРАНСМИССИЯ]

|$0

419-23-20012

AXLE ASS'Y, REAR THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIG.F4500-01A0 TO 4500-04A0

Field_1: 15001-

1шт.

1

419-22-21230

COUPLING

Field_1: 15001-

1шт.

2

418-22-21310

PROTECTOR

Field_1: 15001-

1шт.

|$3

419-22-21800

PINION ASS'Y

Field_1: 15001-

1шт.

3

0

PINION

Field_1: 15001-

1шт.

4

0

PINION BEVEL

Field_1: 15001-

1шт.

5

419-22-11810

BEARING

Field_1: 15001-

1шт.

6

419-23-21631

CAGE BEARING

Field_1: 15001-

1шт.

7

419-22-11820

BEARING

Field_1: 15001-

1шт.

8

418-22-21330

SEAL OIL

Field_1: 15001-

1шт.

9

423-22-11240

HOLDER

Field_1: 15001-

1шт.

10

01011-61615

BOLT

Field_1: 15001-

1шт.

11

07000-13042

O-RING

Field_1: 15001-

1шт.

12

07000-15180

O-RING

Field_1: 15001-

1шт.

13

419-22-11361

SHIM 0.05 MM

Field_1: 15001-

2шт.

|$15

419-22-11371

SHIM 0.2 MM

Field_1: 15001-

2шт.

|$16

419-22-11381

SHIM 0.3 MM

Field_1: 15001-

2шт.

|$17

419-22-11391

SHIM 0.8 MM

Field_1: 15001-

1шт.

14

01010-61440

BOLT

Field_1: 15001-

10шт.

15

01643-31445

WASHER

Field_1: 15001-

10шт.

16

0

CARRIER

Field_1: 15001-

1шт.

17

419-22-11430

GEAR

Field_1: 15001-

2шт.

18

419-22-11421

PINION

Field_1: 15001-

4шт.

19

419-22-11412

SHAFT

Field_1: 15001-

4шт.

20

419-22-11631

WASHER

Field_1: 15001-

2шт.

21

419-22-11651

WASHER

Field_1: 15001-

4шт.

22

175-21-12180

PIN

Field_1: 15001-

4шт.

|$27

01643-31232

WASHER

Field_1: 15001-

20шт.

24

01010-61240

BOLT

Field_1: 15001-

20шт.

25

418-22-12850

BEARING

Field_1: 15001-

2шт.

26

0

HOUSING

Field_1: 15001-

1шт.

27

423-23-23170

SLEEVE

Field_1: 15001-

1шт.

28

07044-13620

PLUG

Field_1: 15001-

1шт.

29

07002-13634

O-RING

Field_1: 15001-

1шт.

30

07043-70211

PLUG

Field_1: 15001-

2шт.

31

419-33-11460

BLEEDER

Field_1: 15001-

1шт.

32

566-32-11620

CAP

Field_1: 15001-

1шт.

33

419-22-23620

COVER

Field_1: 15001-

1шт.

34

04020-01228

PIN DOWEL

Field_1: 15001-

2шт.

35

01010-61240

BOLT

Field_1: 15001-

20шт.

36

01643-31232

WASHER

Field_1: 15001-

20шт.

37

419-22-21860

CARRIER

Field_1: 15001-

2шт.

38

419-22-21760

SHIM 0.05 MM

Field_1: 15001-

6шт.

|$43

419-22-21770

SHIM 0.2 MM

Field_1: 15001-

3шт.

|$44

419-22-21780

SHIM 0.3 MM

Field_1: 15001-

3шт.

|$45

419-22-21790

SHIM 0.8 MM

Field_1: 15001-

2шт.

39

418-33-21430

RING

Field_1: 15001-

2шт.

40

01010-61240

BOLT

Field_1: 15001-

16шт.

41

01643-31232

WASHER

Field_1: 15001-

16шт.

42

419-33-21710

SEAL

Field_1: 15001-

2шт.
