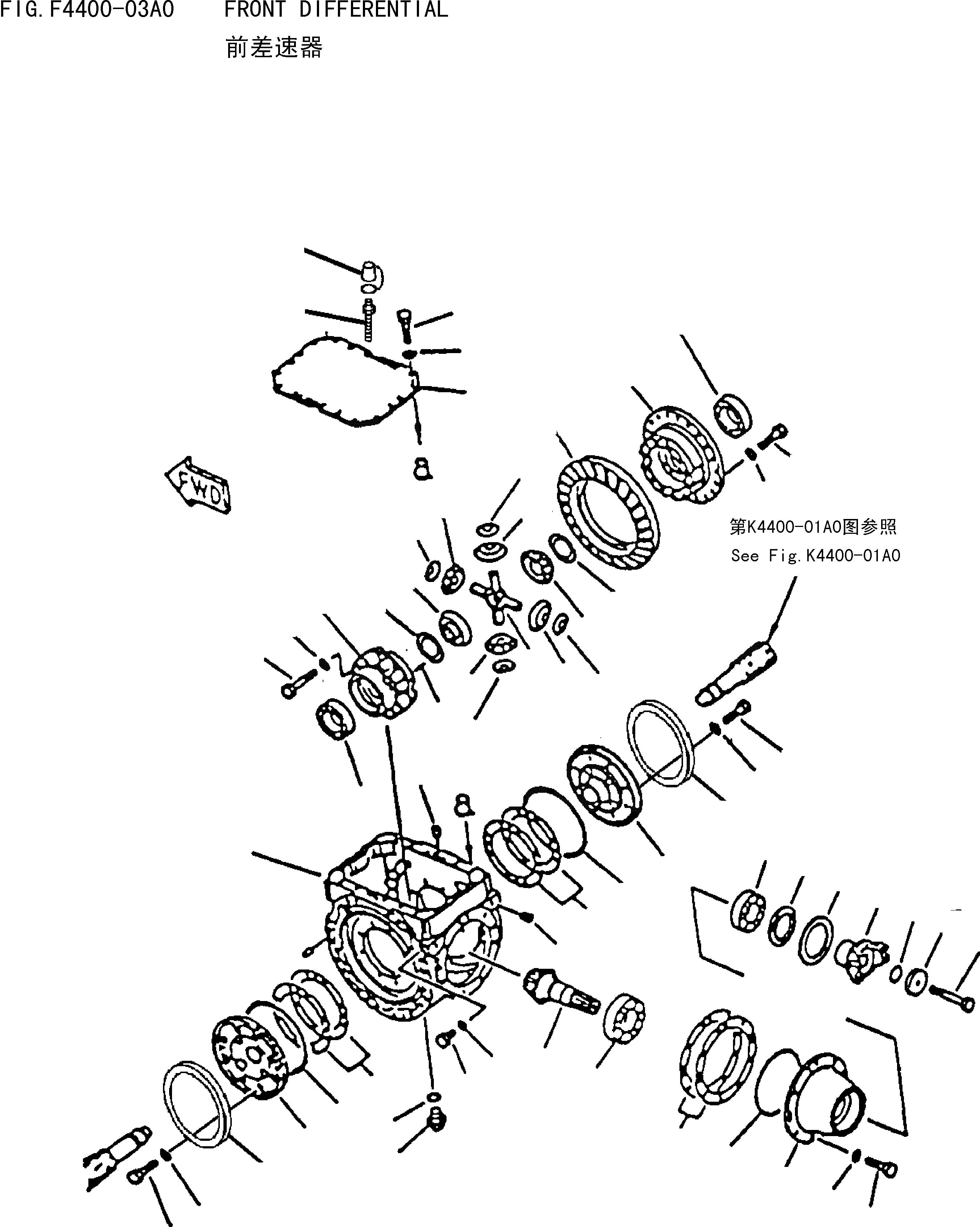

Запчасти Komatsu WA320-3 ПЕРЕДНИЙ МОСТ(ДИФФЕРЕНЦ.) F[ТРАНСМИССИЯ]

|$0

419-22-20013

AXLE ASS'Y,FRONT THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS. F4400-01A0 TO F4400-04A0

Field_1: 15001-

1шт.

|$1

419-22-21021

DIFF(F)ASSY

Field_1: 15001-

1шт.

1

419-22-23610

HOUSING

Field_1: 15001-

2шт.

2

07043-70211

PLUG

Field_1: 15001-

1шт.

3

07044-13620

PLUG,DRAIN

Field_1: 15001-

1шт.

4

07002-13634

O-RING

Field_1: 15001-

2шт.

5

07040-12012

PLUG

Field_1: 15001-

2шт.

6

07002-12034

O-RING. (FOR SHIPPING)

Field_1: 15001-

4шт.

|$8

419-22-21800

PINION ASS'Y,GEAR

Field_1: 15001-

1шт.

8

429-22-21611

PINION

Field_1: 15001-

1шт.

9

419-22-21820

GEAR,BEVEL

Field_1: 15001-

1шт.

10

419-22-21631

CAGE

Field_1: 15001-

1шт.

11

419-22-11810

BEARING

Field_1: 15001-

1шт.

13

419-22-11820

BEARING

Field_1: 15001-

1шт.

14

418-22-21330

SEAL,OIL

Field_1: 15001-

1шт.

15

418-22-21310

PROTECTOR

Field_1: 15001-

1шт.

16

419-22-21230

COUPLING

Field_1: 15001-

1шт.

17

423-22-11240

HOLDER

Field_1: 15001-

1шт.

18

07000-13042

O-RING

Field_1: 15001-

1шт.

19

01011-61615

BOLT

Field_1: 15001-

1шт.

20

07000-15180

O-RING

Field_1: 15001-

1шт.

21

419-22-11361

SHIM, 0.05 MM

Field_1: 15001-

2шт.

|$22

419-22-11371

SHIM, 0.2 MM

Field_1: 15001-

2шт.

|$23

419-22-11381

SHIM, 0.3MM

Field_1: 15001-

2шт.

|$24

419-22-11391

SHIM, 0.8MM

Field_1: 15001-

1шт.

22

01010-61440

BOLT

Field_1: 15001-

10шт.

23

01643-31445

WASHER

Field_1: 15001-

10шт.

|$27

419-22-31501

CASE ASS'Y

Field_1: 15001-

1шт.

24

419-22-31511

CASE

Field_1: 15001-

1шт.

25

419-22-31521

CASE

Field_1: 15001-

1шт.

26

01010-31295

BOLT

Field_1: 15001-

12шт.

27

01643-31232

WASHER

Field_1: 15001-

12шт.

28

175-21-12180

PIN

Field_1: 15001-

4шт.

29

419-22-21430

GEAR. SIDE

Field_1: 15001-

2шт.

30

419-22-11631

WASHER

Field_1: 15001-

2шт.

31

419-22-11421

PINION

Field_1: 15001-

4шт.

32

418-22-31550

WASHER

Field_1: 15001-

4шт.

33

418-22-31410

SHAFT

Field_1: 15001-

1шт.

34

01010-61240

BOLT

Field_1: 15001-

20шт.

35

01643-31232

WASHER

Field_1: 15001-

20шт.

36

419-22-21860

CARRIER

Field_1: 15001-

2шт.

37

419-22-11850

BEARING

Field_1: 15001-

2шт.

38

419-33-21430

RING

Field_1: 15001-

2шт.

39

419-22-21760

SHIM, 0.05 MM

Field_1: 15001-

4шт.

|$44

419-22-21770

SHIM, 0.2 MM

Field_1: 15001-

4шт.

|$45

419-22-21780

SHIM, 0.3MM

Field_1: 15001-

4шт.

|$46

419-22-21790

SHIM, 0.8MM

Field_1: 15001-

4шт.

40

01010-61240

BOLT

Field_1: 15001-

16шт.

41

01643-31232

WASHER

Field_1: 15001-

16шт.

42

419-22-23620

COVER

Field_1: 15001-

1шт.

43

04020-01228

PIN,DOWEL

Field_1: 15001-

2шт.

44

01010-61240

BOLT

Field_1: 15001-

16шт.

45

01643-31232

WASHER

Field_1: 15001-

16шт.

46

419-33-21710

SEAL

Field_1: 15001-

2шт.

47

419-33-11460

BLEEDER

Field_1: 15001-

2шт.

48

566-32-11620

CAP

Field_1: 15001-

2шт.
