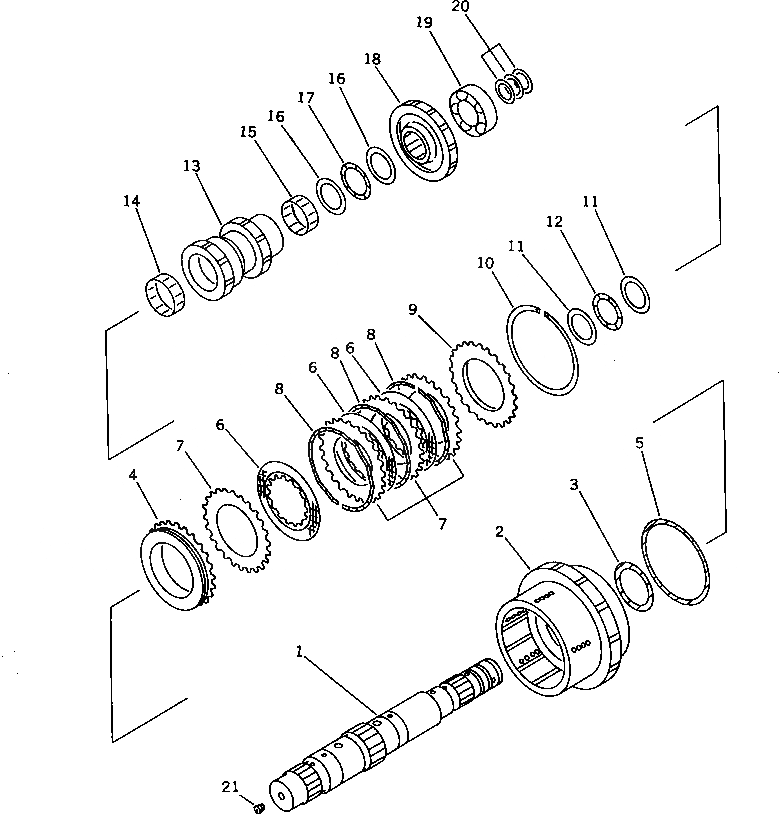

Запчасти Komatsu WA320-1 4 МУФТА ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

419-15-11051

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$1

419-15-11050

TRANSMISSION ASS'Y

SN: 10001-19999

1шт.

|$2

419-15-11060

TRANSMISSION ASS'Y,(WITH EMERGENCY STEERING)

SN: 10001-UP

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2211 TO 2271.

-1шт.

|$4

419-15-13402

CLUTCH ASS'Y,2ND AND 4TH (WA320-1M)

SN: 10518-UP

1шт.

|$5

419-15-13401

CLUTCH ASS'Y,2ND AND 4TH (WA320-1M)

SN: 10001-10517

1шт.

|$6

419-15-13402

CLUTCH ASS'Y,2ND AND 4TH (WA320-1P)

SN: 10507-UP

1шт.

|$7

419-15-13401

CLUTCH ASS'Y,2ND AND 4TH (WA320-1P)

SN: 10001-10506

1шт.

|$$9

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2235 AND 2236.

-1шт.

|$9

418-15-11142

SHAFT ASS'Y

SN: 10001-UP

1шт.

|$10

0

SHAFT ASS'Y

SN: (10001-10486)

1шт.

1

0

SHAFT

SN: 10487-UP

1шт.

1

0

SHAFT

SN: 10001-10486

1шт.

2

0

HOUSING

SN: 10487-UP

1шт.

2

0

HOUSING

SN: 10001-10486

1шт.

3

419-15-12210

RING

SN: 10001-UP

1шт.

4

419-15-13191

PISTON

SN: 10001-UP

1шт.

5

419-15-12580

RING

SN: 10001-UP

1шт.

6

419-15-12290

DISC

SN: 10001-UP

3шт.

7

419-15-12310

PLATE

SN: 10001-UP

4шт.

8

56D-15-12710

SPRING,WAVE

SN: .-UP

3шт.

8

0

SPRING

SN: 10001-.

3шт.

9

419-15-12280

PLATE

SN: 10001-UP

1шт.

10

419-15-12140

RING

SN: 10001-UP

1шт.

11

419-15-12680

WASHER

SN: 10001-UP

2шт.

12

419-15-12670

BEARING

SN: 10001-UP

1шт.

13

419-15-13222

GEAR,4TH

SN: 10001-UP

1шт.

14

419-15-12660

BEARING,NEEDLE

SN: 10001-UP

1шт.

15

419-15-12270

BEARING,NEEDLE

SN: 10001-UP

1шт.

16

419-15-12240

WASHER,THRUST

SN: 10001-UP

2шт.

17

419-15-12250

BEARING,THRUST

SN: 10001-UP

1шт.

18

419-15-13242

GEAR,(WA320-1M)

SN: 10518-UP

1шт.

18

419-15-13241

GEAR,(WA320-1M)

SN: 10001-10517

1шт.

18

419-15-13242

GEAR,(WA320-1P)

SN: 10507-UP

1шт.

18

419-15-13241

GEAR,(WA320-1P)

SN: 10001-10506

1шт.

19

06030-06310

BEARING,(WA320-1M)

SN: 10518-UP

1шт.

19

419-15-13260

BEARING,(WA320-1M)

SN: 10001-10517

1шт.

19

06030-06310

BEARING,(WA320-1P)

SN: 10507-UP

1шт.

19

419-15-13260

BEARING,(WA320-1P)

SN: 10001-10506

1шт.

19

0

BEARING

SN: (10001-.)

1шт.

20

419-15-12121

RING,SEAL

SN: 10001-UP

3шт.

21

419-15-12750

ORIFICE

SN: 10001-UP

1шт.
