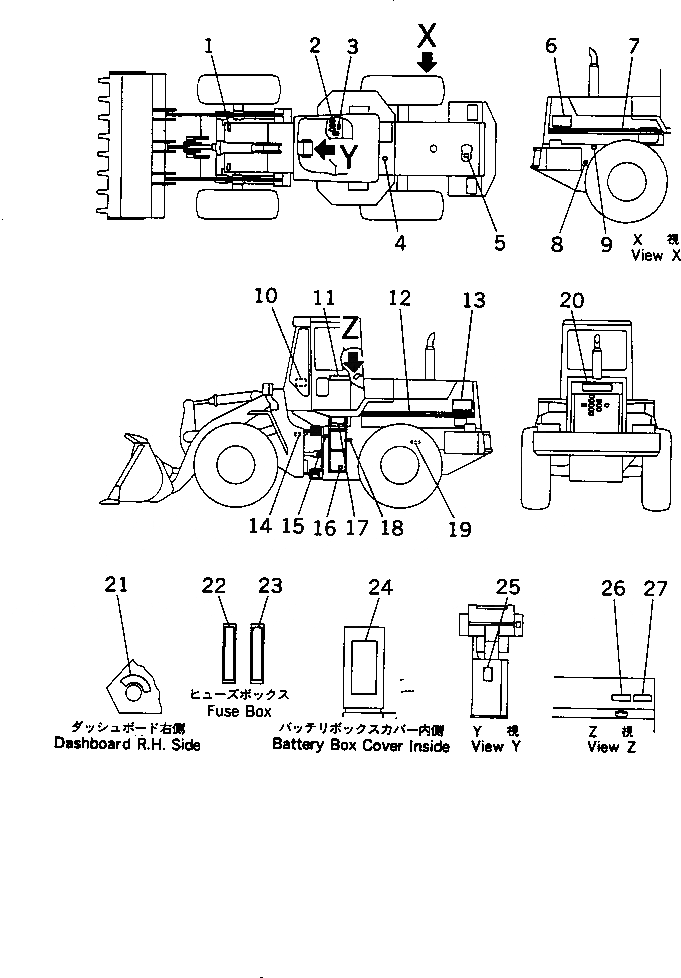

Запчасти Komatsu WA320-1 МАРКИРОВКА (ФРАНЦИЯ-АНГЛ.)(№7-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-933-1370

PLATE, CAUTION,LIFTING EYE

SN: 20001-UP

2шт.

2

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 20001-UP

1шт.

3

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 20001-UP

1шт.

4

09653-05000

PLATE, SAFETY,HYDRAULIC TANK

SN: 20001-UP

1шт.

5

09668-05000

PLATE, SAFETY,RADIATOR CAP

SN: 20001-UP

1шт.

6

419-93-11471

PLATE, MARK,WA320

SN: 20742-UP

1шт.

7

419-93-11880

STRIPE

SN: 20001-UP

1шт.

8

09101-05000

PLATE, CAUTION,FUEL

SN: 20001-UP

1шт.

9

419-933-1140

PLATE, CAUTION,COOLING FAN

SN: 20001-UP

1шт.

10

419-933-1391

PLATE, OPERATING,MONITOR PANEL

SN: 20001-UP

1шт.

11

09690-C0224

PLATE, MARK,KOMATSU

SN: 20742-UP

2шт.

12

419-93-11880

STRIPE

SN: 20001-UP

1шт.

13

419-93-11471

PLATE, MARK,WA320

SN: 20742-UP

1шт.

14

09602-01635

PLATE, NAME,(LIMITED SUPPLY)

SN: 20001-UP

1шт.

14

04418-13060

SCREW

SN: 20001-UP

4шт.

15

423-93-11520

PLATE, CAUTION,KEEP OUT

SN: 20001-UP

2шт.

16

419-933-1130

PLATE, CAUTION,FRAME LOCK

SN: 20001-UP

1шт.

17

419-933-1411

CHART, OIL

SN: 20001-UP

1шт.

18

419-933-1190

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 20001-UP

1шт.

19

419-933-1370

PLATE, CAUTION,LIFTING EYE

SN: 20001-UP

2шт.

20

09690-C0315

PLATE, MARK,KOMATSU

SN: 20742-UP

1шт.

21

09683-50150

PLATE, OPERATING,STARTING SWITCH

SN: 20001-UP

1шт.

22

419-933-1251

PLATE, OPERATING,FUSE

SN: 20001-UP

1шт.

23

419-933-1241

PLATE, OPERATING,FUSE

SN: 20001-UP

1шт.

24

419-933-1220

PLATE, CAUTION,BATTERY

SN: 20001-UP

2шт.

25

419-933-1150

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 20001-UP

1шт.

26

419-933-1270

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 20001-UP

1шт.

27

419-933-1120

PLATE, CAUTION,STARTING AND INSPECTION

SN: 20001-UP

1шт.
