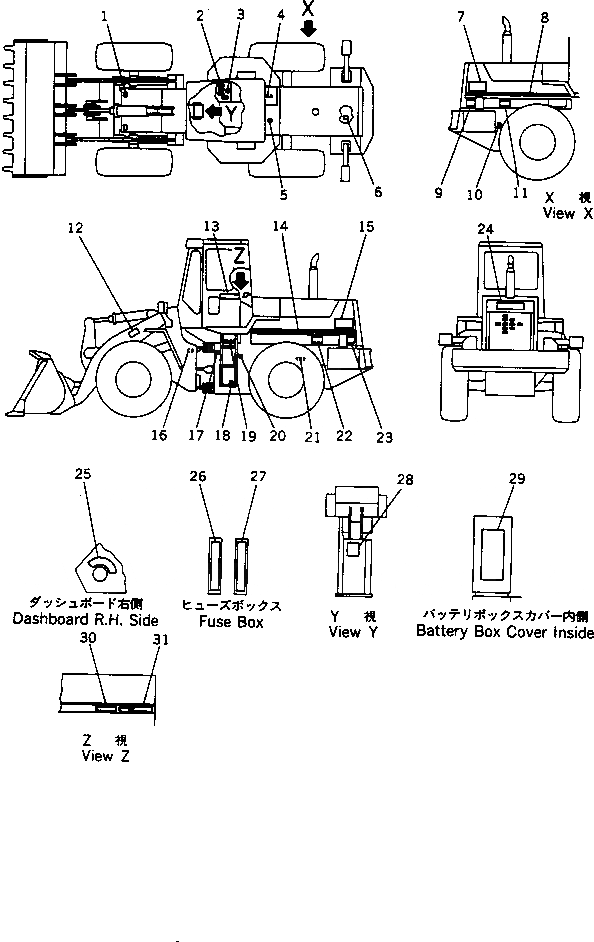

Запчасти Komatsu WA320-1 МАРКИРОВКА (ПОРТУГАЛ.) (TBG/ABE СПЕЦ-Я.)(№77-) СПЕЦ. APPLICATION ЧАСТИ
№
Артикул
Название
Примечание
Количество
1
419-93-11930
PLATE, CAUTION,LIFTING EYE
SN: 10001-UP
2шт.
2
421-93-11132
PLATE, OPERATING,LOADER CONTROL
SN: 10001-UP
1шт.
3
09685-00004
PLATE, OPERATING,LOCK LEVER
SN: 10001-UP
1шт.
4
419-93-11571
PLATE, CAUTION,BRAKE OIL
SN: 10001-UP
1шт.
5
09653-02000
PLATE, SAFETY,HYDRAULIC TANK
SN: 20001-UP
1шт.
6
09668-02000
PLATE, SAFETY,RADIATOR CAP
SN: 10001-UP
1шт.
7
419-93-11471
PLATE, MARK,WA320
SN: 20747-UP
1шт.
8
419-93-11880
STRIPE
SN: 10001-UP
1шт.
9
419-93-11950
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
1шт.
10
09101-02000
PLATE, CAUTION,FUEL
SN: 10001-UP
1шт.
11
20T-98-22330
PLATE, SAFETY,SIDE PANEL
SN: 10001-UP
1шт.
12
419-93-11950
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
2шт.
13
09690-C0224
PLATE, MARK,KOMATSU
SN: 20747-UP
2шт.
14
419-93-11880
STRIPE
SN: 10001-UP
1шт.
15
419-93-11471
PLATE, MARK,WA320
SN: 20747-UP
1шт.
16
09602-25635
PLATE, NAME,(LIMITED SUPPLY)
SN: 20001-UP
1шт.
17
362-98-11620
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
2шт.
18
362-98-11160
PLATE, CAUTION,FRAME LOCK
SN: 10001-UP
1шт.
19
419-93-11711
CHART, OIL
SN: 20001-UP
1шт.
20
419-93-11541
PLATE, CAUTION,TRANSMISSION OIL LEVEL
SN: 10001-UP
1шт.
21
419-93-11930
PLATE, CAUTION,LIFTING EYE
SN: 10001-UP
2шт.
22
20T-98-22330
PLATE, SAFETY,SIDE PANEL
SN: 10001-UP
1шт.
23
419-93-11950
PLATE, CAUTION,KEEP OUT
SN: 10001-UP
1шт.
24
09690-C0315
PLATE, MARK,KOMATSU
SN: 20747-UP
1шт.
25
09683-21150
PLATE, OPERATING,MAIN SWITCH
SN: 10001-UP
1шт.
26
419-93-11592
PLATE, OPERATING,FUSE
SN: 20001-UP
1шт.
27
419-93-11582
PLATE, OPERATING,FUSE
SN: 20001-UP
1шт.
28
419-93-11521
PLATE, SAFETY,STARTING AND AFTER OPERATING
SN: 10001-UP
1шт.
29
416-93-11450
PLATE, CAUTION,BATTERY
SN: 10001-UP
2шт.
30
362-98-11150
PLATE, CAUTION,STARTING AND INSPECTION
SN: 10001-UP
1шт.
31
419-93-11990
PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE
SN: 10001-UP
1шт.
Выбрано товаров: 32
