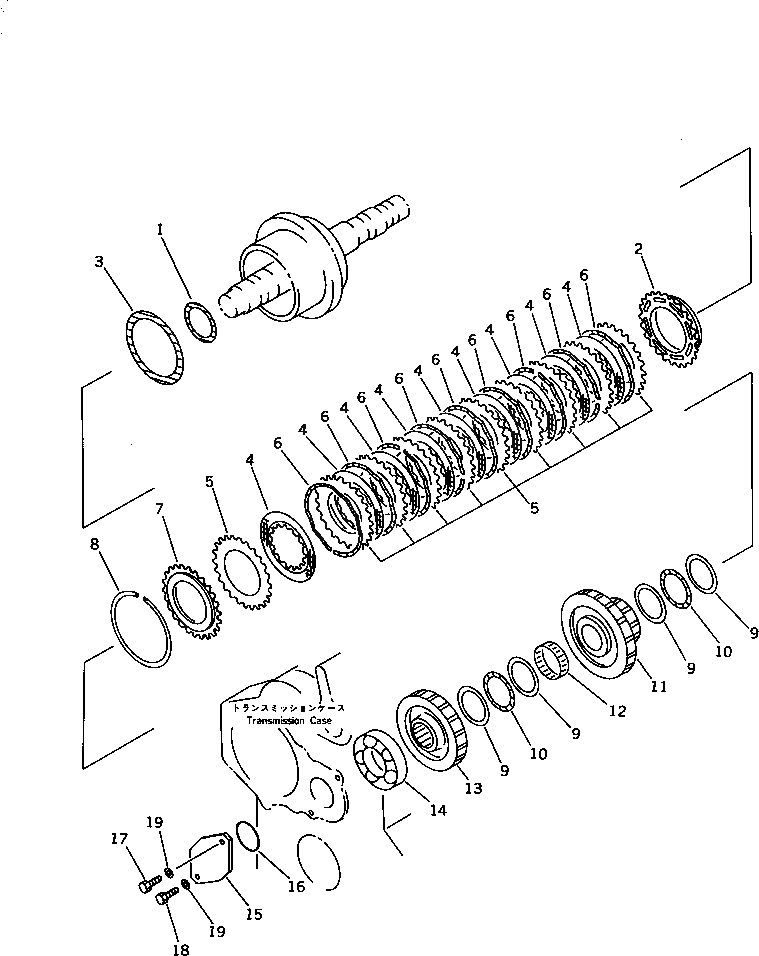

Запчасти Komatsu WA320-1 2 МУФТА ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

419-15-11051

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$1

419-15-11050

TRANSMISSION ASS'Y

SN: 10001-19999

1шт.

|$2

419-15-11060

TRANSMISSION ASS'Y,(WITH EMERGENCY STEERING)

SN: 10001-UP

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2211 TO 2271.

-1шт.

|$4

419-15-13402

CLUTCH ASS'Y,2ND AND 4TH

SN: 10518-UP

1шт.

|$5

419-15-13401

CLUTCH ASS'Y,2ND AND 4TH

SN: 10001-10517

1шт.

|$$7

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2235 AND 2236.

-1шт.

1

419-15-12210

RING,SEAL

SN: 10001-UP

1шт.

2

419-15-13191

PISTON

SN: 10001-UP

1шт.

3

419-15-12580

RING,SEAL

SN: 10001-UP

1шт.

4

419-15-12290

DISC

SN: 10001-UP

9шт.

5

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

10шт.

6

56D-15-12710

SPRING,WAVE

SN: .-UP

9шт.

6

0

SPRING,WAVE

SN: 10001-.

9шт.

7

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

9

419-15-12680

WASHER,THRUST

SN: 10001-UP

4шт.

10

419-15-12670

BEARING,THRUST

SN: 10001-UP

2шт.

11

419-15-13161

GEAR,2ND

SN: 10001-UP

1шт.

12

419-15-13150

BEARING,NEEDLE

SN: 10001-UP

1шт.

13

419-15-13410

GEAR

SN: 10001-UP

1шт.

14

419-15-13250

BEARING

SN: 10001-UP

1шт.

15

419-15-14231

COVER

SN: 10001-UP

1шт.

16

07000-02075

O-RING

SN: 10001-UP

1шт.

17

01010-31230

BOLT

SN: 10001-UP

1шт.

18

01010-31235

BOLT

SN: 10001-UP

1шт.

19

01643-31232

WASHER

SN: 10001-UP

2шт.
