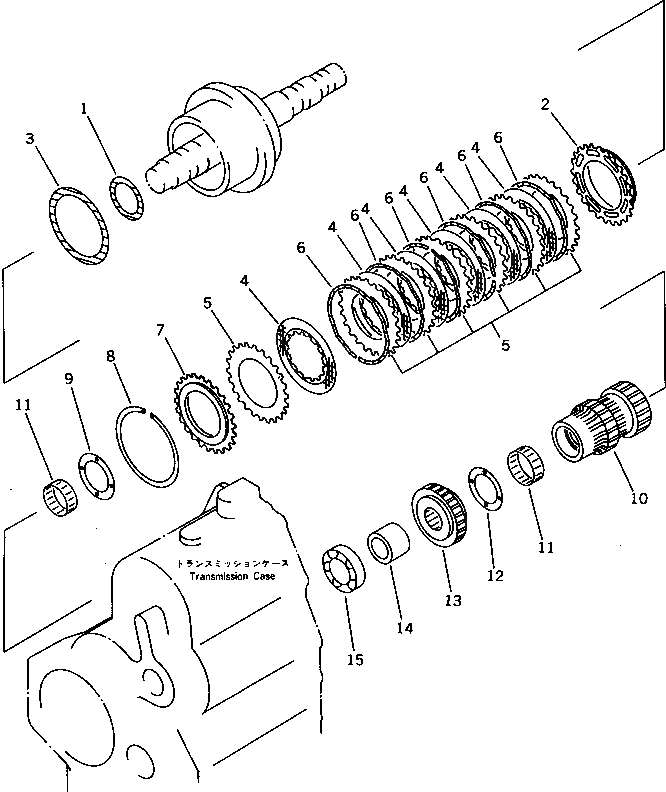

Запчасти Komatsu WA320-1 1 МУФТА ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

419-15-11051

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$1

419-15-11050

TRANSMISSION ASS'Y

SN: 10001-19999

1шт.

|$2

419-15-11060

TRANSMISSION ASS'Y,(WITH EMERGENCY STEERING)

SN: 10001-UP

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2211 TO 2271.

-1шт.

|$4

419-15-12403

CLUTCH ASS'Y,1ST AND 3RD

SN: 10001-UP

1шт.

|$$6

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2233 AND 2234.

-1шт.

1

419-15-12210

RING,SEAL

SN: 10001-UP

1шт.

2

419-15-13191

PISTON

SN: 10001-UP

1шт.

3

419-15-12580

RING,SEAL

SN: 10001-UP

1шт.

4

419-15-12290

DISC

SN: 10001-UP

6шт.

5

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

7шт.

6

56D-15-12710

SPRING,WAVE

SN: .-UP

6шт.

6

0

SPRING,WAVE

SN: 10001-.

6шт.

7

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

9

419-15-12622

WASHER,THRUST

SN: .-UP

1шт.

9

0

WASHER,THRUST

SN: 10001-.

1шт.

10

419-15-12552

GEAR,1ST

SN: 10001-UP

1шт.

11

419-15-12660

BEARING

SN: 10001-UP

2шт.

12

419-15-12632

WASHER,THRUST

SN: .-UP

1шт.

12

0

WASHER,THRUST

SN: 10001-.

1шт.

13

419-15-12562

GEAR

SN: 10001-UP

1шт.

14

419-15-12571

COLLAR

SN: 10001-UP

1шт.

15

419-15-12591

BEARING

SN: 10001-UP

1шт.
