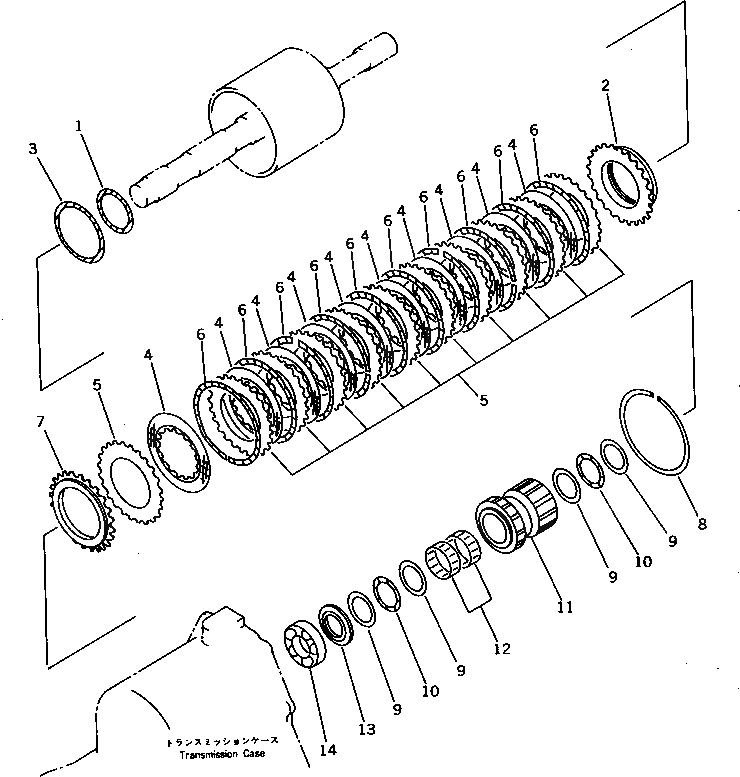

Запчасти Komatsu WA320-1 РЕВЕРС МУФТА ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

419-15-11051

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$1

419-15-11050

TRANSMISSION ASS'Y

SN: 10001-19999

1шт.

|$2

419-15-11060

TRANSMISSION ASS'Y,(WITH EMERGENCY STEERING)

SN: 10001-UP

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2211 TO 2271.

-1шт.

|$4

419-15-12002

CLUTCH ASS'Y,FORWARD AND REVERSE

SN: 10001-UP

1шт.

|$$6

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2231 AND 2232.

-1шт.

1

419-15-12210

RING,SEAL

SN: 10001-UP

1шт.

2

419-15-12221

PISTON

SN: 10001-UP

1шт.

3

419-15-12190

RING,SEAL

SN: 10001-UP

1шт.

4

7720-50-2590

DISC

SN: 10001-UP

10шт.

5

714-16-19730

PLATE,SEPARATE

SN: 10001-UP

11шт.

6

56D-15-12710

SPRING,WAVE

SN: .-UP

10шт.

6

0

SPRING,WAVE

SN: 10001-.

10шт.

7

419-15-12281

PLATE,END

SN: 10001-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

9

419-15-12240

WASHER,THRUST

SN: 10001-UP

4шт.

10

419-15-12250

BEARING,THRUST

SN: 10001-UP

2шт.

11

419-15-12261

GEAR,REVERSE

SN: 10001-UP

1шт.

12

419-15-12271

BEARING,NEEDLE

SN: 10001-UP

2шт.

13

419-15-12330

SPACER

SN: 10001-UP

1шт.

14

419-15-12160

BEARING,ROLLER

SN: 10001-UP

1шт.
