Артикул
Название
Примечание
Количество
|$0
419-15-11051
TRANSMISSION ASS'Y
SN: 20001-UP
1шт.
|$1
419-15-11050
TRANSMISSION ASS'Y
SN: 10001-19999
1шт.
|$2
419-15-11060
TRANSMISSION ASS'Y,(WITH EMERGENCY STEERING)
SN: 10001-UP
1шт.
|$$4

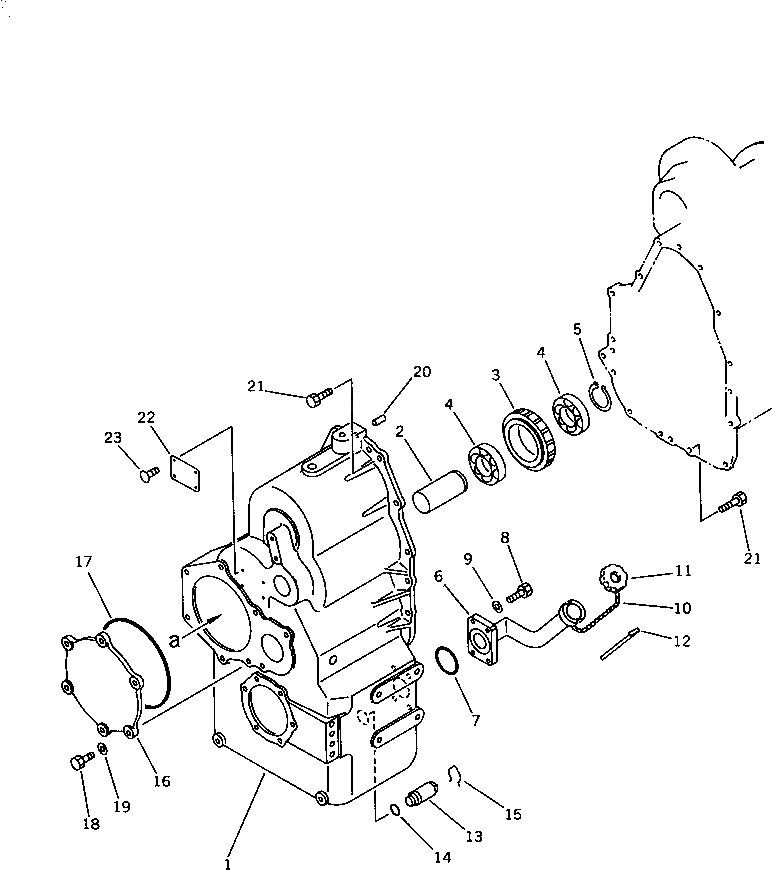

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2211 TO 2271.
-1шт.
|$4
419-15-18014
CASE ASS'Y
SN: 10001-UP
1шт.
1
0
CASE
SN: 10001-UP
1шт.
2
0
SHAFT,IDLER
SN: 10001-UP
1шт.
3
419-15-12821
GEAR,IDLER
SN: 10001-UP
1шт.
4
06033-06212
BEARING
SN: 10001-UP
2шт.
6
419-15-14412
TUBE,FILLER
SN: 10001-UP
1шт.
12
419-15-14424
GAUGE
SN: 10001-UP
1шт.
13
419-15-18240
PLUG
SN: 10001-UP
1шт.
16
419-15-18260
COVER,(WITHOUT EMERGENCY STEERING)
SN: 10001-UP
1шт.
16
419-15-18270
COVER,(WITH EMERGENCY STEERING)
SN: 10001-UP
1шт.
16
419-15-18270
COVER,(W/EMERGENCY STEERING) (1M,1D)
SN: 20001-UP
1шт.
22
22X-22-13171
PLATE, NAME,(LIMITED SUPPLY)
SN: 10001-UP
1шт.
24
419-15-14250
GEAR,(WITH EMERGENCY STEERING)
SN: 10001-UP
1шт.
24
419-15-14250
GEAR,(W/EMERGENCY STEERING) (1M,1D)
SN: 20001-UP
1шт.
25
06030-06008
BEARING,(WITH EMERGENCY STEERING)
SN: 10001-UP
2шт.
25
06030-06008
BEARING,(W/EMERGENCY STEERING) (1M,1D)
SN: 20001-UP
2шт.
28
417-15-14160
COVER,(WITH EMERGENCY STEERING)
SN: 10001-UP
1шт.
32
419-15-18131
LIQUID GASKET,(NOT SHOWN)
SN: 10001-UP
1шт.
32
0
LIQUID GASKET,(NOT SHOWN)
SN: (10001-.)
1шт.
Выбрано товаров: 44
