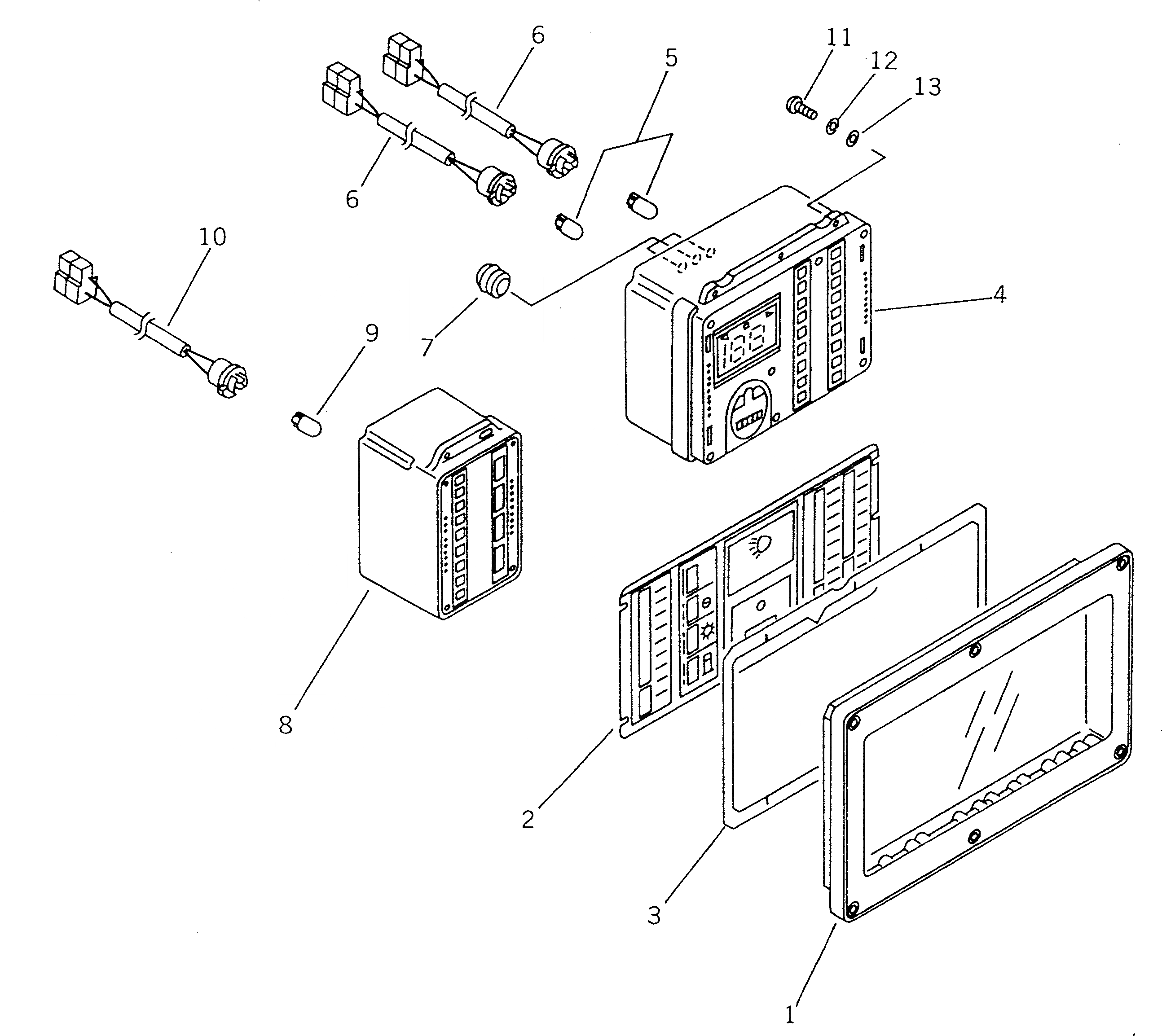

Запчасти Komatsu WA320-1 ПАНЕЛЬ МОНИТОРА КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

|$0

7831-56-2200

MONITOR ASS'Y,(WITH EMERGENCY STEERING)

SN: 20001-UP

1шт.

|$1

7831-51-2200

MONITOR ASS'Y,(WITH EMERGENCY STEERING)

SN: 10001-19999

1шт.

|$2

7831-56-2000

MONITOR ASS'Y,(WITHOUT EMERGENCY STEERING)

SN: 20001-UP

1шт.

|$3

7831-51-2000

MONITOR PANEL ASS'Y,(WITHOUT EMERGENCY STEERING)

SN: 10001-19999

1шт.

1

7831-51-3000

PANEL

SN: 10001-UP

1шт.

2

7831-56-4020

PLATE,(WITH EMERGENCY STEERING)

SN: 20001-UP

1шт.

2

7831-51-4020

PLATE,(WITH EMERGENCY STEERING)

SN: 10001-19999

1шт.

2

7831-56-4000

PLATE,(WITHOUT EMERGENCY STEERING)

SN: 20001-UP

1шт.

2

7831-51-4000

PLATE,(WITHOUT EMERGENCY STEERING)

SN: 10001-19999

1шт.

3

7831-51-1910

GASKET

SN: 10001-UP

1шт.

4

7831-51-5000

MONITOR ASS'Y,(WITH SPEEDOMETER)

SN: 10001-UP

1шт.

5

08102-12403

BULB, 3W

SN: 10001-UP

2шт.

6

7831-61-9110

HOLDER

SN: 10001-UP

2шт.

7

7861-51-1630

GROMMET

SN: 10001-UP

3шт.

8

7831-51-6001

GAUGE ASS'Y

SN: 20001-UP

1шт.

8

7831-51-6000

MONITOR ASS'Y

SN: 10001-19999

1шт.

9

08102-12403

BULB, 3W

SN: 10001-UP

1шт.

10

7831-61-9110

HOLDER

SN: 10001-UP

1шт.

11

7861-86-1330

SCREW

SN: 10001-UP

10шт.

12

01601-00410

WASHER,SPRING

SN: 10001-UP

10шт.

13

01641-00405

WASHER

SN: 10001-UP

10шт.
